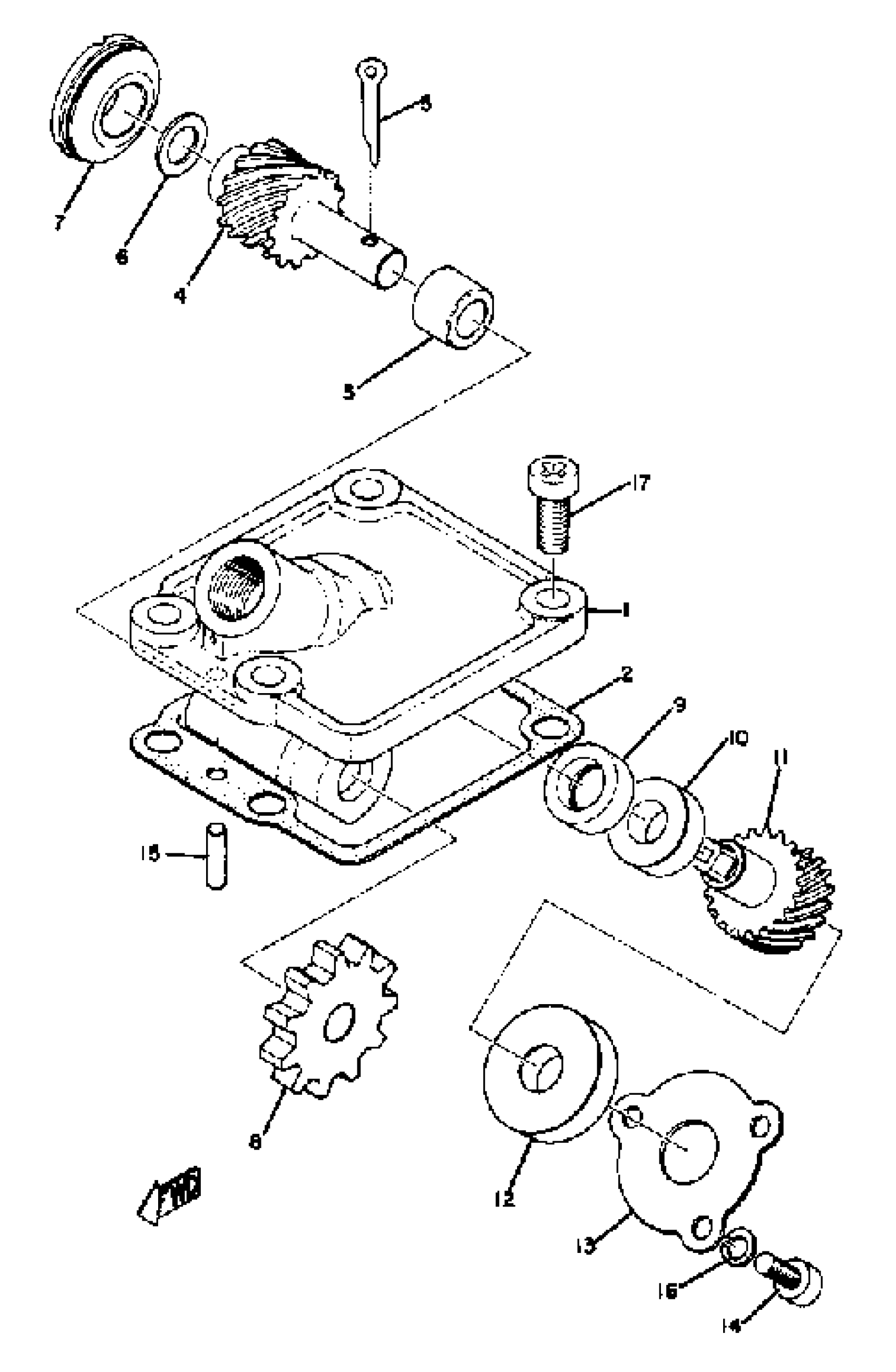

Yamaha TD2 (TD2) 1970 GEAR UNIT Diagram

#

Description
Price

1

HOUSING, TACH GEAR

(170-17811-00-00)

Unavailable

2

GASKET

(156-17818-00-00)

Unavailable

3

BUSH, SOLID

(90380-08006-00)

Unavailable

4

GEAR, DRIVE

(156-17831-00-00)

Unavailable

5

PIN COTTER

91490-30025-00

$3.99

6

SHIM

(150-17837-00-07)

Unavailable

7

BUSH, DR GEAR OUTER

(152-17833-00-00)

Unavailable

8

GEAR, PRIMARY

(145-17851-02-00)

Unavailable

9

OIL SEAL,SDO-TYPE

93109-10023-00

Unavailable

10

BUSH, SOLID

(90380-10008-00)

Unavailable

11

GEAR, DRIVEN

(156-17841-00-00)

Unavailable

12

BUSH, DRVN GR OUTER

(156-17843-00-00)

Unavailable

13

COVER, HOUSING

(156-17821-00-00)

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

15

PIN,DOWEL (137)

93604-14012-00

$1.81

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable
