1970 Yamaha TD2 (TD2) Frame Diagram

← All diagrams

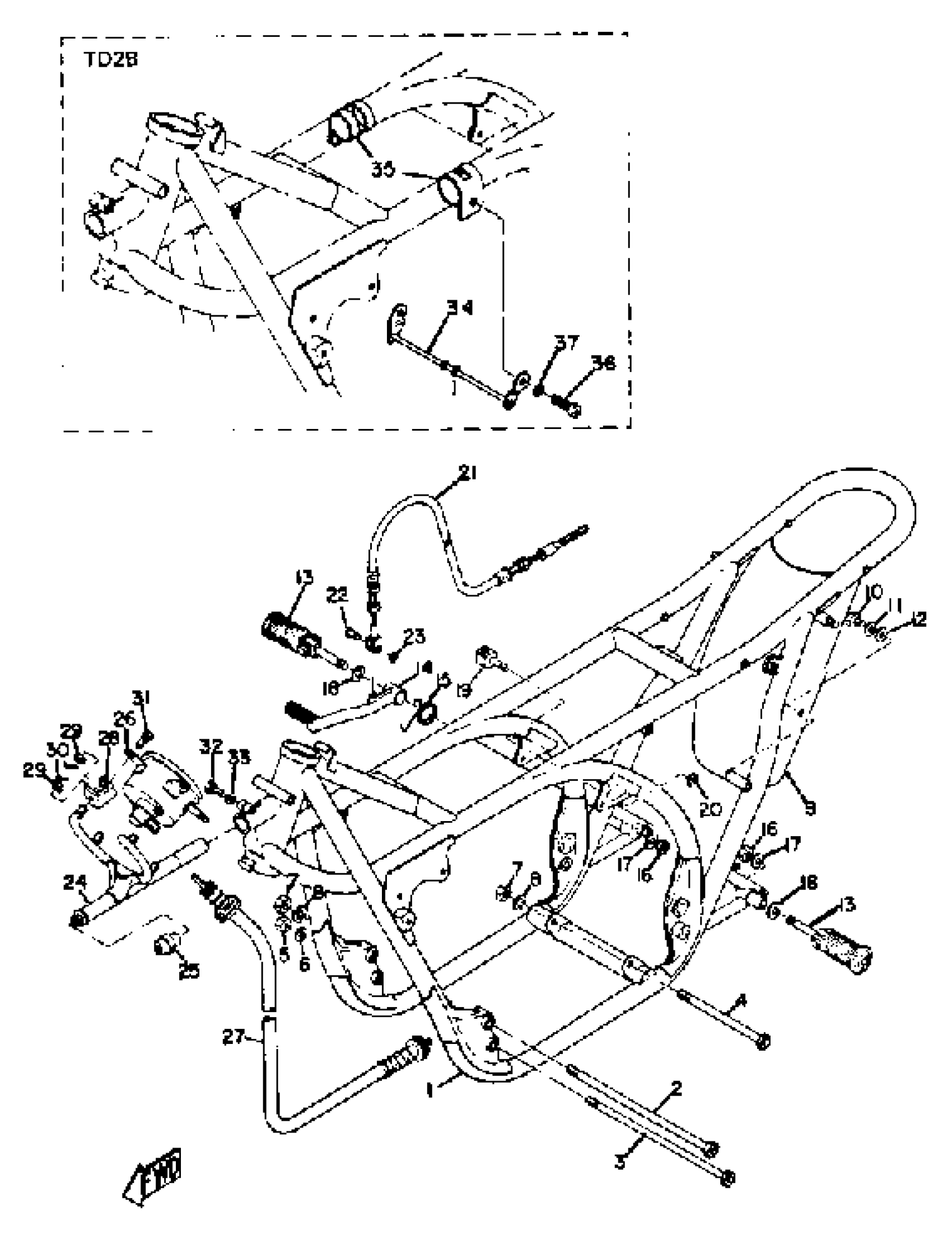

Find the part on the Frame diagram for your 1970 Yamaha TD2 (TD2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TD2 (TD2) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(240-21110-00-33)

1
Out of stock

2

BOLT

(90109-10204-00)

1
Out of stock

3

BOLT, ENG MNTNG 2

(240-21482-00-00)

1
Out of stock

4

BOLT, ENG MNTNG 3

(240-21483-00-00)

1
Out of stock

5

NUT, SPECIAL SHAPE

90179-08288-00

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

NUT, SPEC''L SHAPE

(90179-10119-00)

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

FENDER, REAR

(240-21610-00-00)

1
Out of stock

10

BOLT, COWLING

(145-28374-00-00)

1
Out of stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

. COVER, FOOTREST

240-27413-00-00

1
Out of stock

13

FRT FOOTREST ASY L

5F6-27410-10-00

1
Out of stock

14

PEDAL, BRAKE

(240-27211-00-91)

1
Out of stock

14

PEDAL, BRAKE

(240-27211-10-91)

1
Out of stock

15

SPRING, TORSION

(90508-23028-00)

1
Out of stock

15

SPRING, TORSION

(90508-23029-00)

1
Out of stock

16

NUT, SPEC''L SHAPE

(90179-10119-00)

1
Out of stock

17

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

18

—

$3.00

In stock

19

HOLDER, CABLE

(144-21161-00-00)

1
Out of stock

20

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

21

GUIDE, SIDE STAND

(240-27351-00-00)

1
Out of stock

21

GUIDE, SIDE STAND

(240-27351-10-00)

1
Out of stock

22

PIN, SPEC''L SHAPE

(90249-06074-00)

1
Out of stock

23

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

24

STAY 1

(240-28356-00-33)

1
Out of stock

25

DAMPER

240-28371-00-33

1
Out of stock

26

TACHOMETER ASSEMBLY

(240-83540-29-00)

1
Out of stock

27

TACHOMETER CABLE

(145-83560-00-00)

1
Out of stock

28

DAMPER, BRACKET

143-83543-00-00

1
Out of stock

29

NUT, SLTED

95307-05900-00

1
Out of stock

30

. PIN, COTTER

91401-10015-00

1
Out of stock

31

BOLT, WITH HOLE

(90102-05012-00)

1
Out of stock

32

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

34

BRACKET

(294-21158-00-00)

1
Out of stock

35

BRACKET, PROTC FRT

(214-21433-00-33)

1
Out of stock

36

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

37

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
