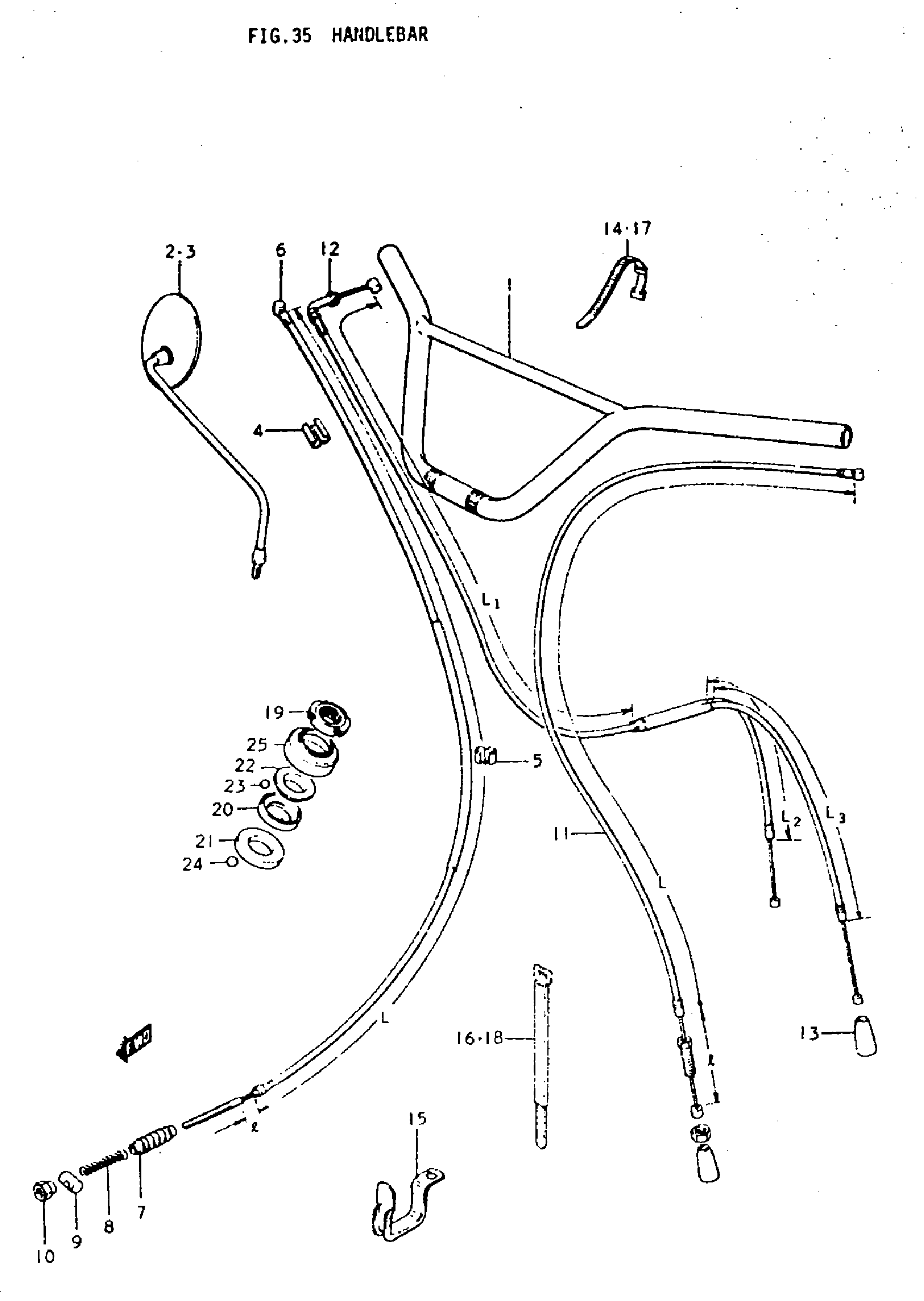

Suzuki TC185 (1977) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | FROM 56110-28000

56110-28001

Unavailable

2

MIRROR ASSY,RR | L This part replaces 56500-19010.

56500-19013

Unavailable

2

MIRROR ASSY,RR | M,A,B This part replaces 56500-31011.

56500-31014

$45.21

3

MIRROR ASSY,RR | L This part replaces 56600-19010.

56600-19013

Unavailable

3

MIRROR ASSY,RR | M,A,B This part replaces 56600-31011.

56600-31014

$45.21

4

CLIP

09408-00001

Unavailable

5

CLIP

09408-00002

$2.20

6

CABLE,FR BRAKE | L: 1090, L:69; Includes Item(s) 7 - 10 This part replaces 58100-28100.

58100-28090

$19.30

7

DUST SEAL

09287-07001

$2.01

8

SPRING

09440-06003

$2.67

9

PIN

09209-10001

$1.33

10

NUT

09150-05101

$2.80

11

CABLE,CLUTCH | L: 1040, L:114 This part replaces 58200-29000.

58200-31601

Unavailable

12

CABLE,THROTTLE | L1:710, L2:130, L3:320 This part replaces 58300-28000.

58300-28002

Unavailable

13

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.50

14

BAND | L; L:120

09407-12402

$2.80

15

CLAMP | L

09403-11305

Unavailable

16

CLAMP | L; L:180 This part replaces 09407-18301.

09407-18302

$2.27

17

BAND | L; L:120

09407-12402

$2.80

18

CLAMP | A,B; L:110 This part replaces 09407-11302.

09407-18302

$2.27

19

NUT, STEERING STEM

51631-28000

$19.60

20

RACE,STEERING INNER UPPER

51611-20002

$13.50

21

RACE, STEERING INNER LOWER

51611-33002

$13.02

22

RACE,STEERING OUTER UPPER

51621-28000

$13.50

23

STEEL BALL

06111-06003

$1.24

24

STEEL BALL

06111-08003

$1.30

25

DUST SEAL,STEERING UPPER

51643-25001

$4.17
