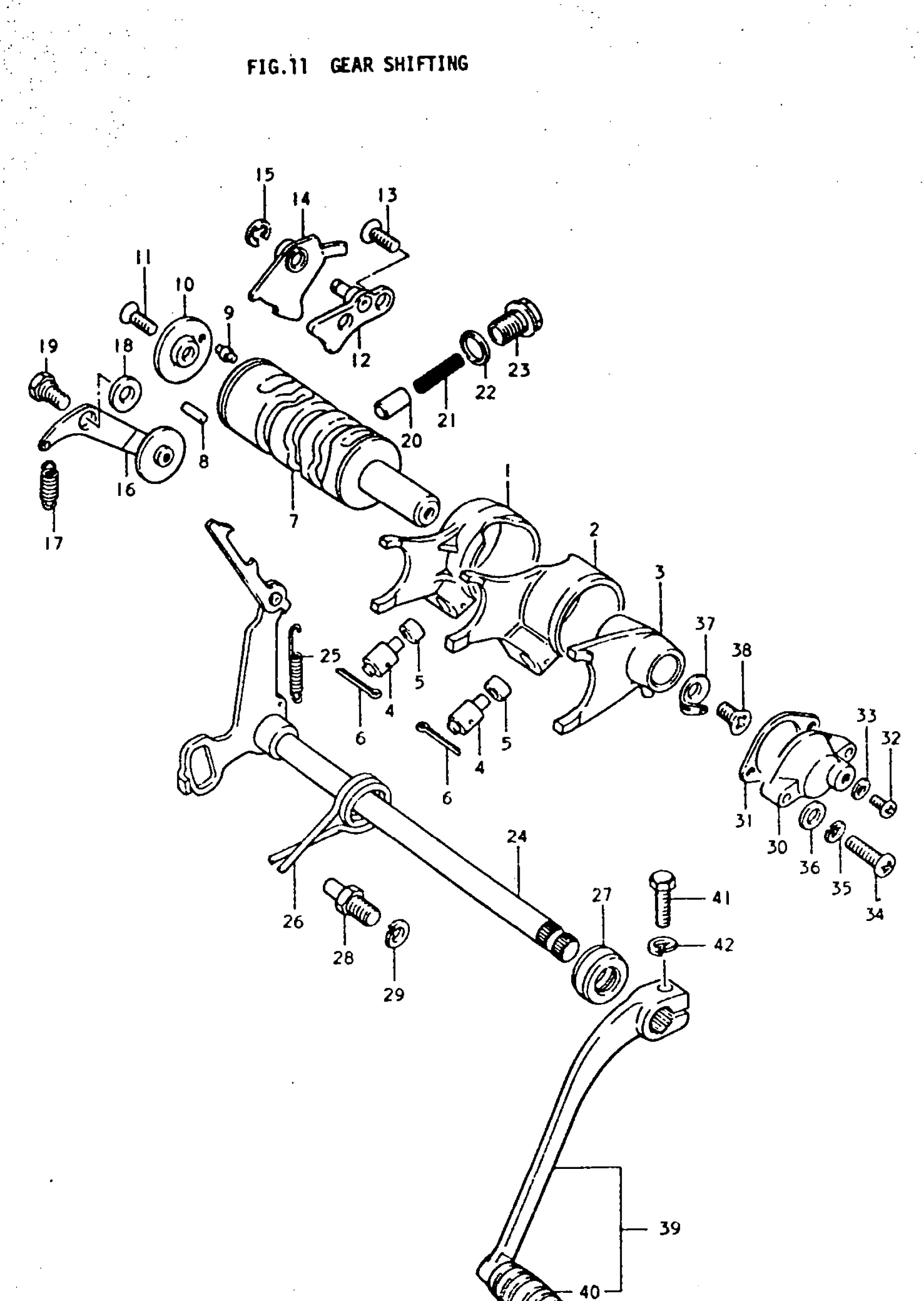

1977 Suzuki TC185 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1977 Suzuki TC185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC185 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING A

25211-29100

1
Out of stock

2

FORK, GEAR SHIFTING B

25221-29100

1
Out of stock

3

FORK, REDUCTION GEAR

25811-29100

—
Out of stock

4

PIN | L,M; TO 09209-10002

09209-10003

—
Out of stock

4

PIN | A,B

09209-10002

2
Out of stock

5

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

2
Out of stock

6

2

$1.31

In stock

7

CAM, GEAR SHIFTING | L,M,A

25311-29100

—
Out of stock

7

CAM, GEAR SHIFTING | B; FROM 25311-29100

25311-29101

—
Out of stock

8

ROLLER (4X13.8)

09261-04002

4
Out of stock

9

PIN

09209-04012

1
Out of stock

10

RETAINER, DRIVE PIN

25322-28030

1
Out of stock

11

SCREW This part replaces 02122-06208.

02122-0620A

1
Out of stock

12

GUIDE, GEAR SHIFTING CAM

25340-12101

1
Out of stock

13

SCREW This part replaces 02122-06168.

02122-06167

2
Out of stock

14

PAWL, CAM STOPPER | L,M,A; TO 25370-12101 This part replaces 25370-12100.

25370-12101

1
Out of stock

14

PAWL, CAM STOPPER | B

25370-12101

1
Out of stock

15

E RING | L,M This part replaces 08332-11058.

08332-1105A

1
Out of stock

16

STOPPER, GEAR SHIFTING CAM A | FROM 25350-28000

25350-28001

1
Out of stock

17

SPRING

09443-07014

1
Out of stock

18

WASHER | 6.5x16x2.3

09160-06022

1
Out of stock

19

BOLT

09111-06003

1
Out of stock

20

1

$11.55

In stock

21

SPRING

09440-05018

1
Out of stock

22

GASKET

09168-14004

1
Out of stock

23

1

$7.41

In stock

24

SHAFT, GEAR SHIFTING

25510-29100

1
Out of stock

25

SPRING

09443-06008

1
Out of stock

26

SPRING

09444-26008

1
Out of stock

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

28

STOPPER, GEAR SHIFTING ARM

25671-19000

1
Out of stock

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

30

BODY, GEAR SHIFTING SWITCH

37721-26000

1
Out of stock

31

GASKET

37712-26000

1
Out of stock

32

SCREW This part replaces 02111-03048.

02112-03047

1
Out of stock

33

WASHER This part replaces 08322-21038.

08322-01037

1
Out of stock

34

SCREW This part replaces 02111-04208.

02112-0420A

2
Out of stock

35

LOCK WASHER This part replaces 08321-21048.

08321-0104A

2
Out of stock

36

WASHER This part replaces 08322-21048.

08322-01047

2
Out of stock

37

CONTACT, SWITCH | FROM 37711-05100

37711-05101

1
Out of stock

38

SCREW This part replaces 02122-06128.

02122-06127

1
Out of stock

39

LEVER ASSY, GEAR SHIFTING | L,M,A This part replaces 25600-29100.

25600-29101

1
Out of stock

39

LEVER ASSY, GEAR SHIFTING | B; Includes Item(s) 40

25600-29101

1
Out of stock

40

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

41

BOLT This part replaces 01112-06208.

01500-06207

1
Out of stock

42

1

$2.28

In stock
