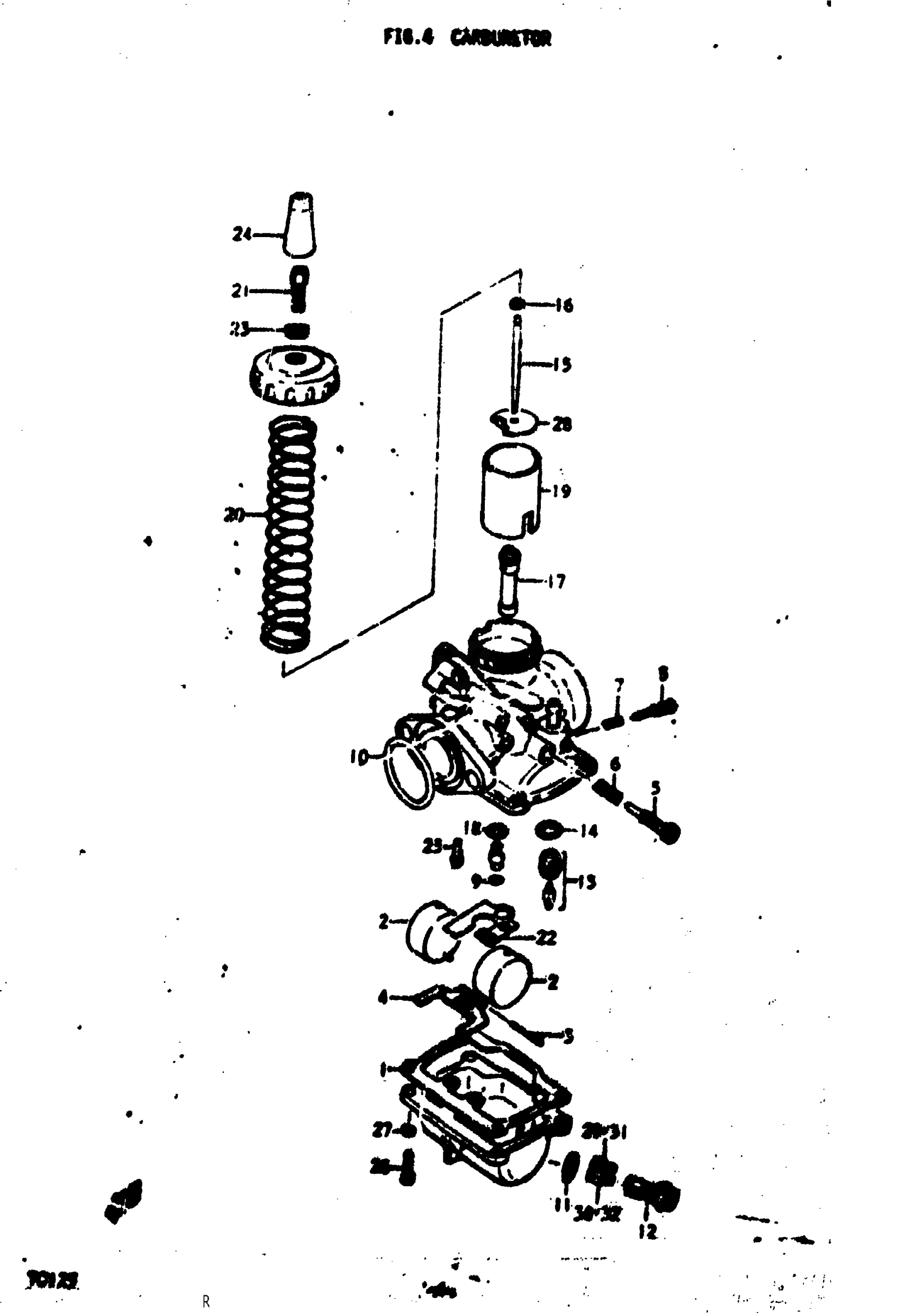

Find the part on the Carburetor diagram for your 1975 Suzuki TC125J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki TC125J Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CARBURETOR ASSY | Includes Item(s) 1 - 30

13200-28603

1
Out of stock

1

GASKET, FLOAT CHAMBER

13251-11010

1
Out of stock

2

FLOAT

13252-18620

2
Out of stock

3

PIN, FLOAT

13254-11010

—
Out of stock

4

ARM, FLOAT

13253-28010

1
Out of stock

5

SCREW, THROTTLE STOP | F. NO.28029~.

13267-28110

1
Out of stock

5

SCREW, THROTTLE STOP | J This part replaces 13267-15110.

13267-40230

1
Out of stock

6

SPRING, STOP SCREW

13268-03110

1

$6.15

In stock

7

SPRING, PILOT AIR ADJUSTING

13268-01010

1
Out of stock

8

SCREW, PILOT AIR ADJUSTING

13269-15010

1
Out of stock

9

O RING, NEEDLE JET SEAT

13294-28010

1
Out of stock

10

O RING This part replaces 13295-28010.

13295-28011

1
Out of stock

11

WASHER

13332-97010

1
Out of stock

12

BOLT, UNION | J,K,L; F. NO.28029~.

13333-97010

1
Out of stock

12

BOLT, UNION | J; TO 13333-29110

13333-28010

—
Out of stock

12

BOLT, UNION | M

13333-29110

1
Out of stock

13

VALVE ASSY, NEEDLE | F.NO. 28029~.

13370-28110

1
Out of stock

13

VALVE,NEEDLE | J This part replaces 13370-28010.

13370-48051

1
Out of stock

14

GASKET, NEEDLE VALVE

13392-58600

1
Out of stock

15

NEEDLE, JET | 2OH7-3 F NO. 28029~.

13383-33010

1
Out of stock

15

NEEDLE, JET | J; 40H5-2 This part replaces 13383-11010.

13383-33010

1
Out of stock

16

1

$4.76

In stock

16

CLIP, NEEDLE | J

13394-03010

1
Out of stock

17

NOZZLE, NEEDLE | 0-4 F. NO.28029~.

09494-00102

1
Out of stock

17

NO DESCRIPTION AVAILABLE | J; 0-0

09494-00080

1
Out of stock

18

WASHER, NEEDLE JET

13382-03110

1

$2.92

In stock

19

VALVE, THROTTLE | CA:3.0

13551-28010

1
Out of stock

20

SPRING, THROTTLE VALVE This part replaces 13573-97010.

13573-30900

1
Out of stock

21

ADJUSTER This part replaces 13577-03010.

13577-48110

1
Out of stock

22

PLATE | F.NO.28029~.

13259-97010

1
Out of stock

23

NUT, CABLE ADJUSTER

13661-16600

1
Out of stock

24

BOOT, CABLE ADJUSTER

13681-16601

1
Out of stock

26

4

$1.34

In stock

27

LOCK WASHER This part replaces 08321-21048.

08321-0104A

4
Out of stock

28

SEAT, THROTTLE VALVE SPRING

13581-28010

1
Out of stock

29

JET, MAIN (90) | #90 F.NO.28029~ This part replaces 09491-90003.

09491-90007

1
Out of stock

30

JET, MAIN (120) | J; #120 This part replaces 09491-24002.

09491-24014

1
Out of stock

31

JET, MAIN (100) | #100 OPT F.NO. 28029~ This part replaces 09491-20003.

09491-20017

1
Out of stock

31

JET, MAIN (110) | #110 OPT F.NO. 28029~ This part replaces 09491-22004.

09491-22016

1
Out of stock

31

JET, MAIN (125) | #125 OPT F.NO. 28029~ This part replaces 09491-25001.

09491-25010

1
Out of stock

32

JET, MAIN | J; #125 OPT This part replaces 09491-25004.

09491-25009

1
Out of stock

32

JET, MAIN | J; #130 OPT

09491-26003

1
Out of stock

32

JET,MAIN #135 | J; #133 OPT This part replaces 09491-27005.

09491-27015

1
Out of stock

32

JET, MAIN | J; #140 OPT This part replaces 09491-28002.

09491-28009

1
Out of stock
