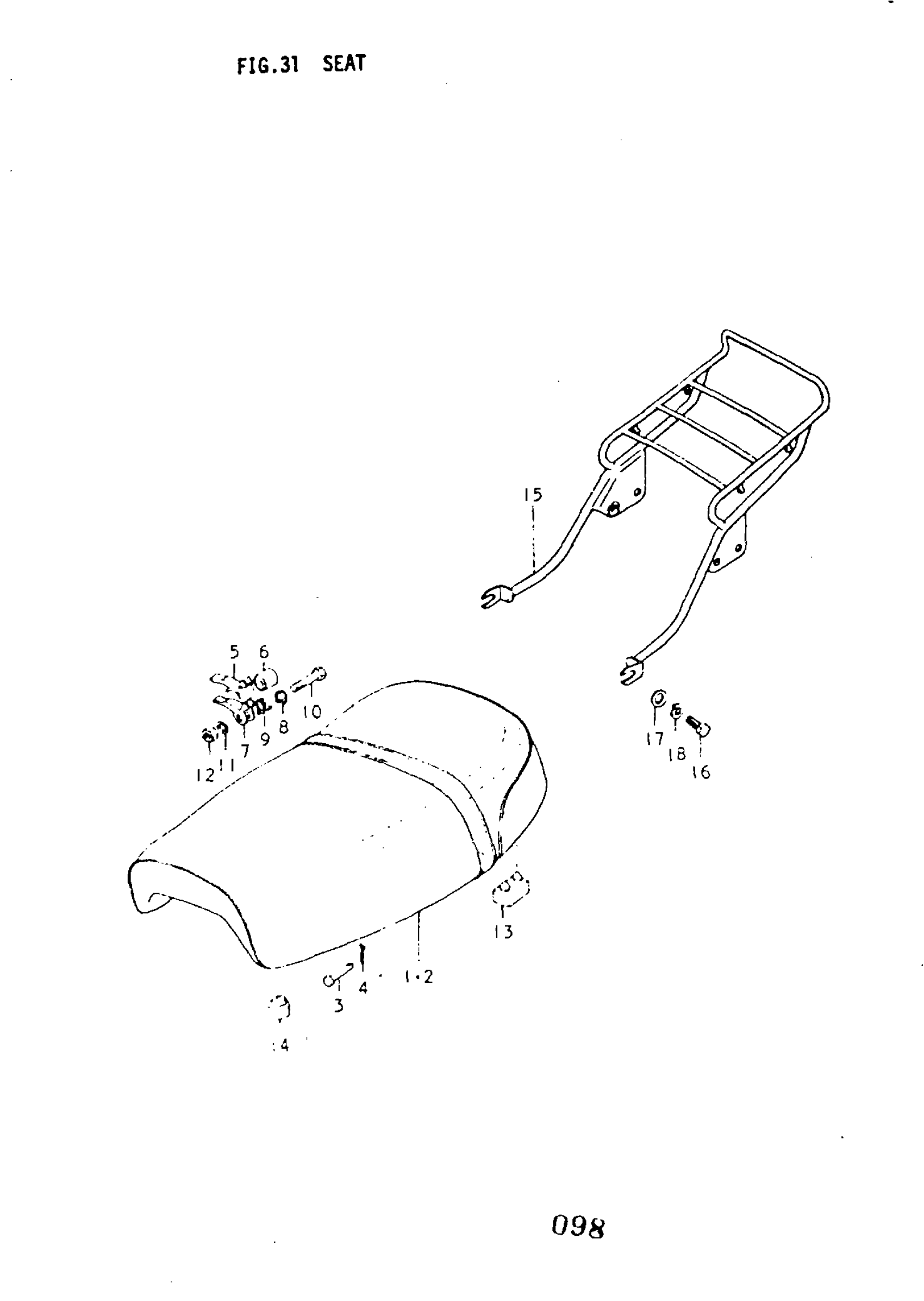

Suzuki TC125 (1977) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K; TO 45100-28830-403 This part replaces 45100-28000-403.

45100-28831-865

Unavailable

1

SEAT | L,M; FROM 45100-28400-40 TO 45100-28402-403 This part replaces 45100-28401-403.

45100-28402-865

Unavailable

2

SEAT ASSY | A

45100-28402-403

Unavailable

2

SEAT ASSY | B

45100-28402-865

Unavailable

3

PIN, SEAT SUPPORT

09200-06018

$2.08

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

5

CLAMP, SEAT | K; TO 45211-26001 This part replaces 45210-26000.

45211-26001

Unavailable

6

BUSHING, SEAT CLAMP | K

09319-08007

Unavailable

7

CLAMP, SEAT | L,M,A,B

45211-26001

Unavailable

8

BOSS, SEAT CLAMP | L,M,A,B

45210-26001

Unavailable

9

SPRING, SEAT CLAMP | L,M,A,B

09448-17007

Unavailable

10

BOLT | K,L,M This part replaces 01122-08458.

01500-08453

$2.53

10

BOLT | A,B This part replaces 01122-08408.

01500-0840A

$2.62

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

12

NUT This part replaces 08312-11088.

08310-00087

$1.83

13

CUSHION, SEAT

09321-08006

$2.80

14

CUSHION, SEAT

09321-10002

$2.02

15

CARRIER, SPORT | K,L,M,A; TO 46310-28401

46310-28400

Unavailable

15

CARRIER, SPORT | B

46310-28401

Unavailable

16

BOLT | K,L This part replaces 01122-10168.

01500-10167

$4.18

17

WASHER | K,L This part replaces 08322-21108.

08322-01107

$1.88

18

LOCK WASHER | K,L This part replaces 08321-21108.

08321-01107

$1.83
