1977 Suzuki TC125 Gear Shifting Diagram

← All diagrams

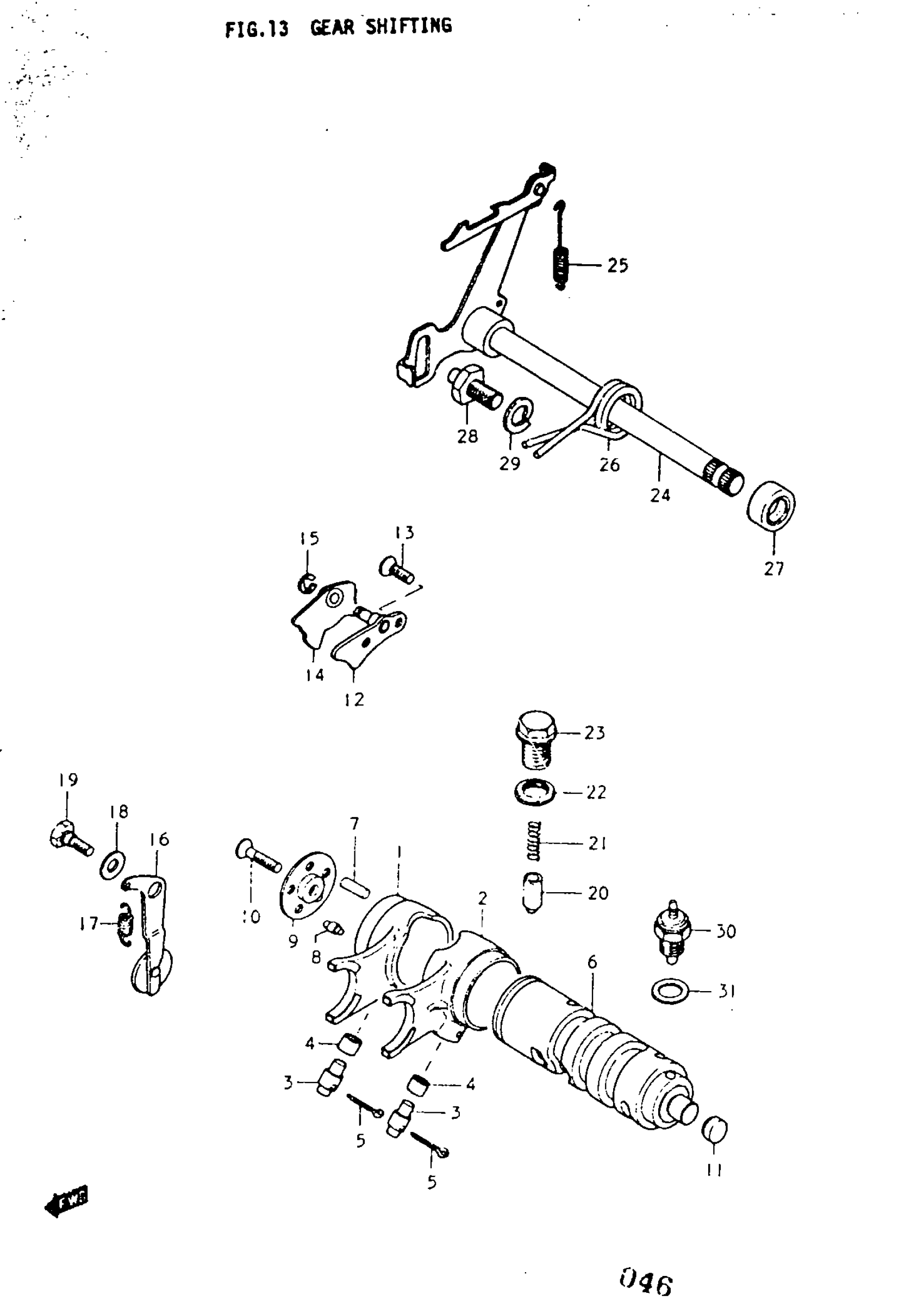

Find the part on the Gear Shifting diagram for your 1977 Suzuki TC125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC125 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK A, GEAR SHIFTING

25211-28200

1
Out of stock

2

FORK B, GEAR SHIFTING

25221-28200

1
Out of stock

3

PIN, SHIFTING FORK | K,L,M; TO 09209-10002A,B

09209-10003

—
Out of stock

4

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

2
Out of stock

5

2

$1.31

In stock

6

CAM, GEAR SHIFTING | K,L,M,A

25310-28200

—
Out of stock

6

CAM, GEAR SHIFTING | B

25310-28201

—
Out of stock

7

ROLLER (4X13.8)

09261-04002

4
Out of stock

8

PIN, SHIFTING CAM STOPPER | K,L; TO 09209-04012

09209-04006

—
Out of stock

8

PIN, SHIFTING CAM STOPPER | M,A,B

09209-04012

1
Out of stock

9

RETAINER, DRIVE PIN

25322-28030

1
Out of stock

10

SCREW This part replaces 02122-06208.

02122-0620A

1
Out of stock

11

PLUG, SHIFTING CAM

09243-12002

1
Out of stock

12

CAM GUIDE

25340-12101

1
Out of stock

13

SCREW This part replaces 02122-06168.

02122-06167

2
Out of stock

14

PAWL, CAM STOPPER | FROM 25370-12100

25370-12101

1
Out of stock

15

E RING | K This part replaces 08332-11059.

08332-1105A

1
Out of stock

15

E RING | L This part replaces 08332-11058.

08332-1105A

1
Out of stock

16

STOPPER, SHIFTING CAM A | FROM 25350-28000

25350-28001

1
Out of stock

17

SPRING, STOPPER

09443-07014

1
Out of stock

18

WASHER, STOPPER | 6.5x16x2.3

09160-06022

1
Out of stock

19

BOLT, STOPPER

09111-06003

1
Out of stock

20

1

$11.55

In stock

21

SPRING, STOPPER

09440-05018

1
Out of stock

22

GASKET, STOPPER HOUSING

09168-14004

1
Out of stock

23

1

$7.41

In stock

24

NO DESCRIPTION AVAILABLE This part replaces 25510-28000.

25510-28001

1
Out of stock

25

SPRING, PAWL RETURN

09443-06008

1
Out of stock

26

SPRING, SHAFT RETURN

09444-26008

1
Out of stock

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

28

STOPPER, SHIFTING CAM

25671-19000

1
Out of stock

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

30

SWITCH, GEAR SHIFTING

37710-28000

1
Out of stock

31

GASKET, SWITCH

09168-12001

1
Out of stock
