1977 Suzuki TC125 AIR Cleaner Diagram

← All diagrams

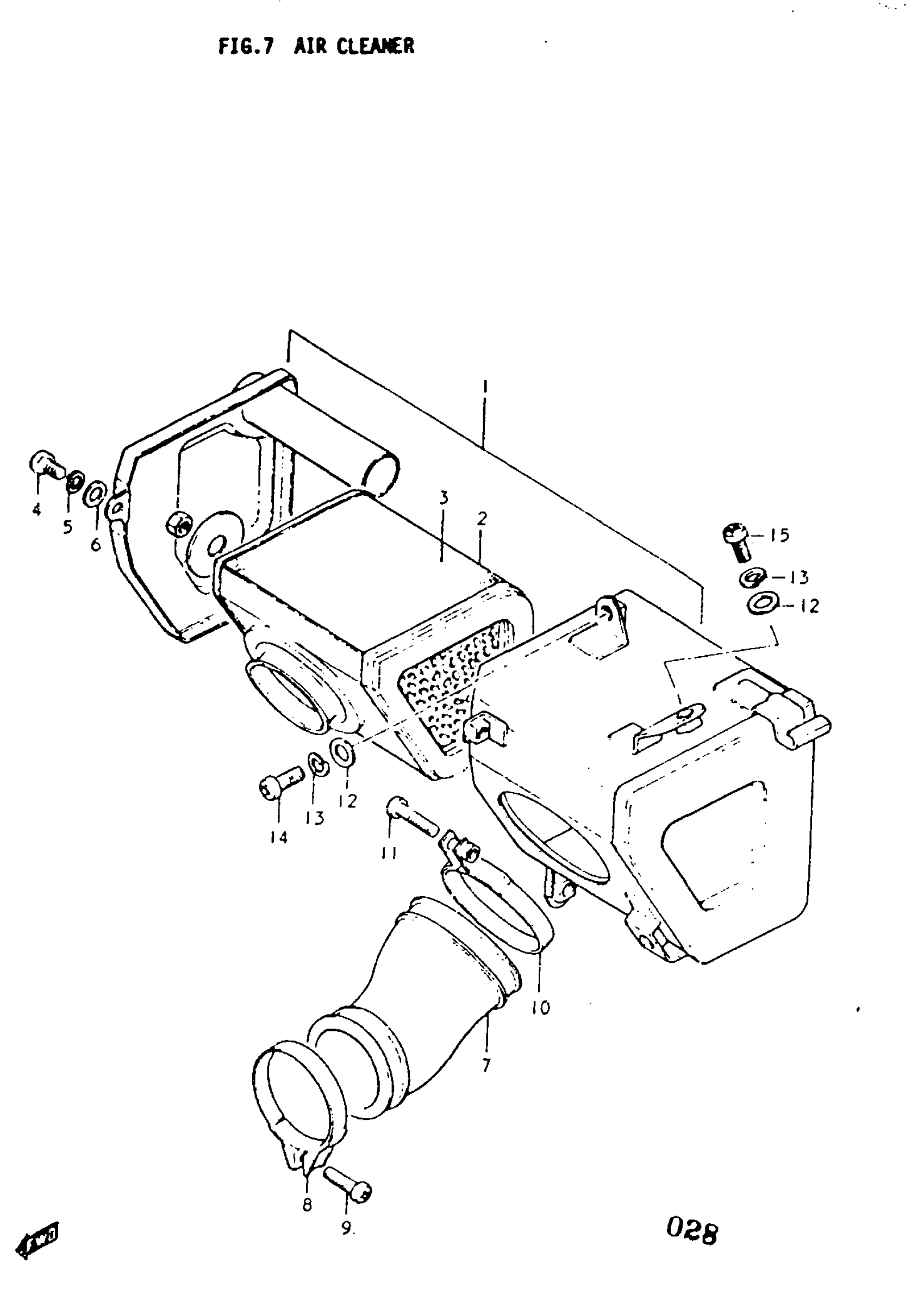

Find the part on the AIR Cleaner diagram for your 1977 Suzuki TC125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC125 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | K,L; FROM 13700-28210

13700-28110

—
Out of stock

1

CLEANER ASSY, AIR | M

13700-28211

—
Out of stock

1

CLEANER ASSY, AIR | A; TO 13700-28631

13700-28630

—
Out of stock

1

CLEANER ASSY, AIR | B; Includes Item(s) 2 - 6

13700-28631

1
Out of stock

2

FILTER | K,L This part replaces 13780-28210.

13780-28211

—
Out of stock

2

FILTER | M; FROM 13780-28210

13780-28211

—
Out of stock

2

FILTER | A,B

13780-28630

1
Out of stock

3

ELEMENT

13781-28210

1
Out of stock

4

2

$1.20

In stock

5

LOCK WASHER | K,L This part replaces 08321-21048.

08321-0104A

2
Out of stock

6

WASHER | K,L This part replaces 08322-21048.

08322-01047

2
Out of stock

7

HOSE, AIR INLET | K,L This part replaces 13881-28001.

13881-28002

1
Out of stock

7

HOSE, AIR INLET | M,A,B; FROM 13881-28001

13881-28002

1
Out of stock

8

CLAMP, AIR INLET A | K,L

09402-50306

1
Out of stock

8

CLAMP, AIR INLET A | M,A,B

09402-52306

1
Out of stock

9

SCREW | K,L This part replaces 02111-04208.

02112-0420A

1
Out of stock

10

CLAMP, AIR INLET B

09402-58306

1
Out of stock

11

SCREW | K,L This part replaces 02111-04208.

02112-0420A

1
Out of stock

12

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

2
Out of stock

14

SCREW | K,L This part replaces 02112-06128.

02112-06127

1
Out of stock

15

SCREW This part replaces 02112-06168.

02112-06167

1
Out of stock
