1971 Suzuki TC120 Tool SET Diagram

← All diagrams

Find the part on the Tool SET diagram for your 1971 Suzuki TC120, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

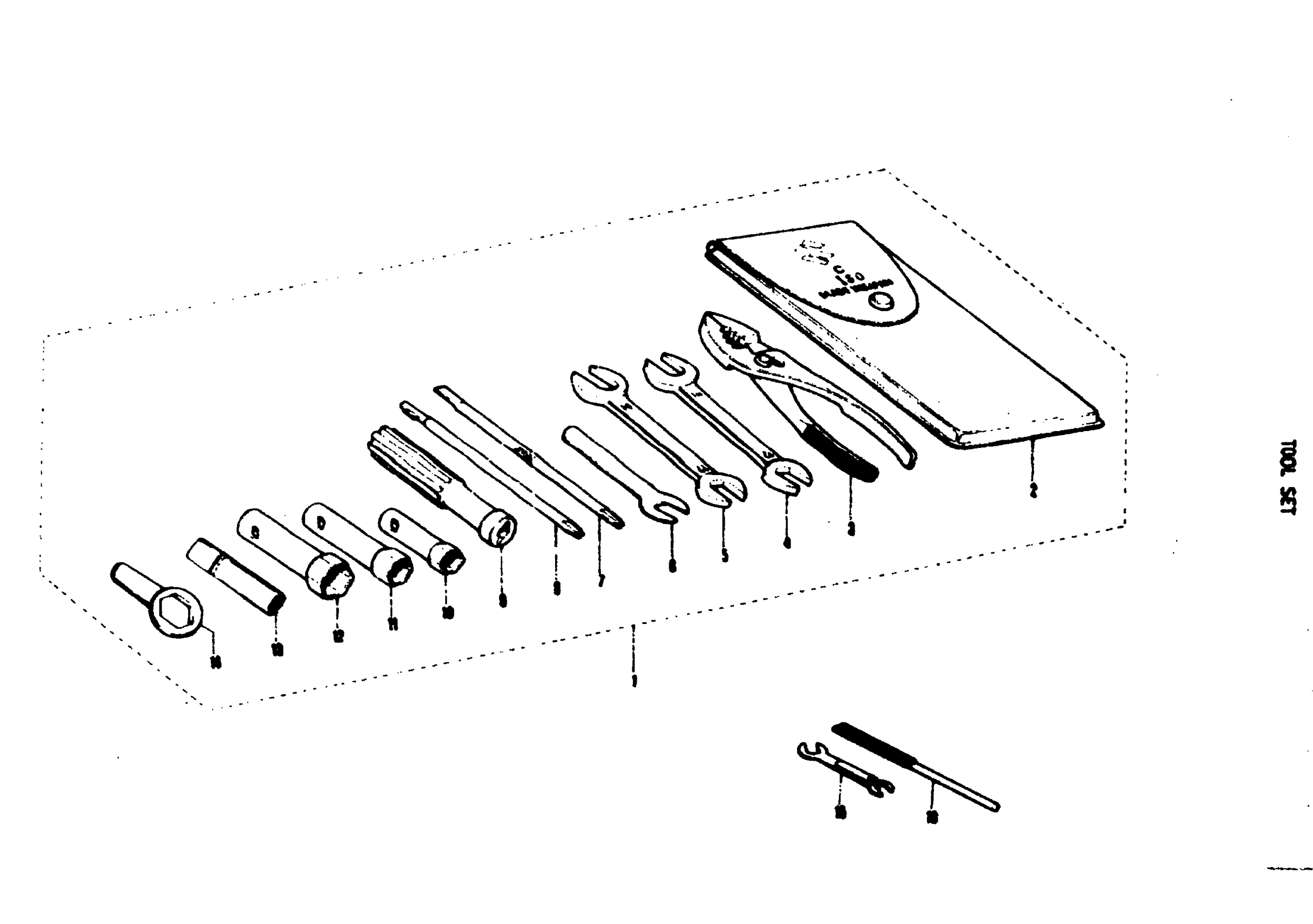

1971 Suzuki TC120 Tool SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TOOL ASSY | Includes Item(s) 2 - 14 This part replaces 09800-00108.

09800-21028

1
Out of stock

2

TOOL BAG

09811-00106

—
Out of stock

3

COMBINATION PILERS

09812-00001

—
Out of stock

4

10x12MM OPEN END WRENCH

09813-00006

—
Out of stock

5

14x17MM OPEN END WRENCH

09813-00009

—
Out of stock

6

8MM OPEN END WRENCH

09813-00025

—
Out of stock

7

COMBINATION SCREW DRIVER

09814-00001

—
Out of stock

8

CROSS SCREW DRIVER

09814-00004

—
Out of stock

9

DRIVER GRIP

09814-00007

—
Out of stock

10

10MM BOX WRENCH

09816-00001

—
Out of stock

11

14MM BOX WRENCH

09816-00004

—
Out of stock

12

21MM BOX WRENCH

09816-00007

—
Out of stock

13

WRENCH HANDLE

09817-00005

—
Out of stock

14

22MM OFFSET WRENCH

09817-00103

1
Out of stock

15

POINT FILE | OPT

09818-00001

1
Out of stock

16

POINT WRENCH | OPT

09930-20111

1
Out of stock
← Optional
