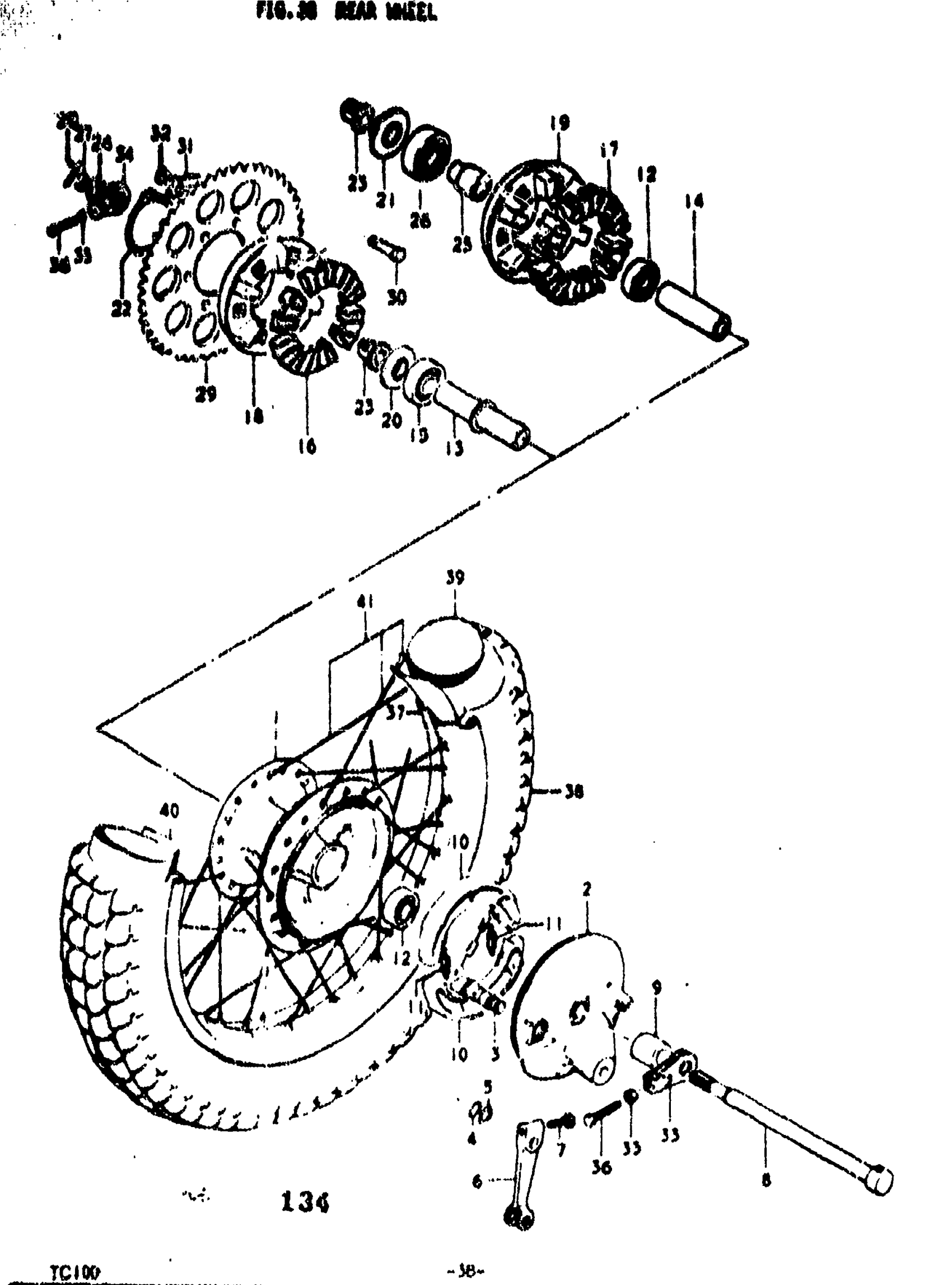

Find the part on the Rear Wheel diagram for your 1977 Suzuki TC100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC100 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, REAR HUB | K,L; TO 64110-28002

64110-28001

—
Out of stock

1

DRUM, REAR HUB | M

64110-28002

1
Out of stock

1

DRUM, REAR HUB | A

64110-28400

1
Out of stock

1

DRUM, REAR HUB | B

64110-28610

1
Out of stock

2

PANEL, REAR HUB | K; TO 64210-28002

64210-28001

—
Out of stock

2

PANEL, REAR HUB | K; TO 64210-28003

64210-28002

—
Out of stock

2

PANEL, HUB | A This part replaces 64210-28003.

64210-28004

1
Out of stock

2

PANEL, HUB | B This part replaces 64210-28305.

64210-28004

1
Out of stock

2

PANEL, HUB | L,M; TO 64210-28003 This part replaces 64210-25500.

64210-28004

1
Out of stock

3

CAM, BRAKE | K; TO 54441-01002 This part replaces 54441-01001.

54441-01002

1
Out of stock

3

SHAFT, BRAKE CAM | L,M; TO 54441-01002

54441-07001

—
Out of stock

3

SHAFT, BRAKE CAM | A,B

54441-01002

1
Out of stock

4

DUST SEAL, CAM SHEFT

09280-12001

1

$3.25

In stock

5

WASHER | 12.5x20x1

09160-12011

1
Out of stock

6

LEVER, BRAKE CAM

64451-25301

1
Out of stock

7

BOLT This part replaces 01112-06208.

01500-06207

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 64711-28001.

64711-4130V

1
Out of stock

9

SPACER, RH | 15.2x26x26 TO 09180-15038 This part replaces 09180-15010.

09180-15038

1
Out of stock

10

SHOE SET, BRAKE | FROM 54410-07001 This part replaces 54410-07002.

54401-07810

2
Out of stock

11

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

12

BEARING, LH | K,L,MA,B This part replaces 08143-62020.

08143-62027

1
Out of stock

13

SPACER, REAR HUB BEARING | K,M

64730-28000

—
Out of stock

13

SPACER, REAR HUB BEARING | L; TO 64730-28000

64730-38000

—
Out of stock

14

SPACER, REAR HUB BEARING | A,B

09180-15039

1
Out of stock

15

BEARING | K,L,M This part replaces 08123-63020.

08123-6302B

1
Out of stock

16

SHOCK ABSORBER, REAR HUB | K,L,M; FROM 64650-28600

64650-28002

6
Out of stock

17

SHOCK ABSORBER, REAR HUB | A,B

64650-28400

6
Out of stock

18

DRUM, SPROCKET MOUNTING | K,L,M

64610-28001

1
Out of stock

19

DRUM, SPROCKET MOUNTING | A

64611-28400

1
Out of stock

19

DRUM, SPROCKET MOUNTING | B

64611-28600

1
Out of stock

20

SPACER | K,L,M

64730-28000

—
Out of stock

21

SPACER | A,B

64750-28400

1
Out of stock

22

CIRCLIP | K,L,M This part replaces 08331-11558.

08331-31559

1
Out of stock

23

SPACER

64791-28001

1
Out of stock

24

NUT | K,L,M,A This part replaces 09140-18001.

09140-18501

1
Out of stock

24

NUT | B This part replaces 09140-18005.

09140-18501

1
Out of stock

25

RETAINER, SPROCKET DRUM | A,B

64733-28400

1
Out of stock

26

BEARING | A,B This part replaces 08123-62040.

08123-6204B

1
Out of stock

27

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

28

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

29

SPROCKET, REAR | NT:49, OPT

64511-28700

1
Out of stock

29

SPROCKET, REAR (NT:47) | :47 This part replaces 64511-28780.

64511-05210

1
Out of stock

29

SPROCKET, REAR | :50, OPT

64511-28000

1
Out of stock

30

BOLT | K,L,M

09105-08006

6
Out of stock

30

BOLT | A,B

09105-08007

6
Out of stock

31

WASHER

09169-08013

3
Out of stock

32

NUT | K,L,M

09140-08010

—
Out of stock

32

6

$1.93

In stock

33

ADJUSTER,CHAIN, This part replaces 61410-28002.

61410-28005

1
Out of stock

34

LH CHAIN ADJUST This part replaces 61420-28002.

61420-28004

1
Out of stock

35

2

$1.93

In stock

36

BOLT | 8x40 This part replaces 09100-08099.

09100-08146

2
Out of stock

37

RIN, WHEEL | K,L; 1.SAMIE TO 63311-26022

65311-29021

1
Out of stock

37

RIN, WHEEL | L,M,A,B; USE WITH 65300-28460

65311-29022

1
Out of stock

38

TIRE, REAR (3.00-18) | L,M,A,B; 3.00-18 SEMAL-KNOBY TIRE This part replaces 65100-25600.

65100-26510

1
Out of stock

38

NO DESCRIPTION AVAILABLE | K,L; 3.00-18, OPT KNOBY TIRE This part replaces 65100-25410.

65100-48310

1
Out of stock

39

TUBE ASSY,WHEEL | 2.75-18, 3.00-18 This part replaces 55200-11601.

55200-26F01

1
Out of stock

40

IN TUBE PROTECT | 22x10" This part replaces 55261-11010.

55261-26F10

1
Out of stock

41

SPOKE SET, REAR | K,L

65300-28807

1
Out of stock

41

1

$64.75

In stock
