1977 Suzuki TC100 Rear Combination Lamp Diagram

← All diagrams

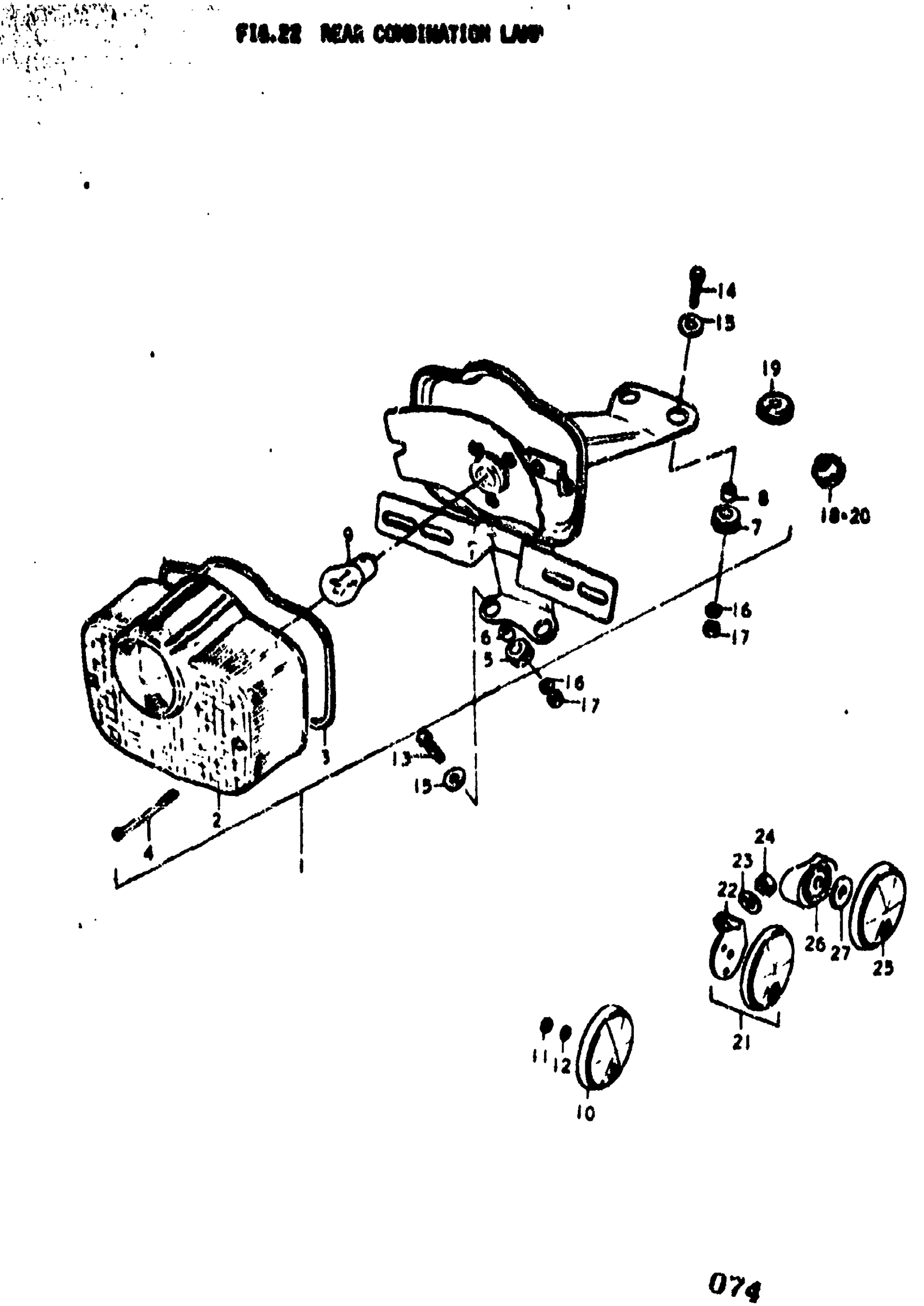

Find the part on the Rear Combination Lamp diagram for your 1977 Suzuki TC100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki TC100 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | FROM 35000-25831-999; Includes Item(s) 2 - 9 This part replaces 35710-25681.

35710-25681-999

1
Out of stock

2

LENS RR COMB LA This part replaces 35712-27630.

35712-23011

1
Out of stock

3

GASKET

35713-27630

1
Out of stock

4

SCREW 4X55 This part replaces 02111-04558.

02112-04558

2
Out of stock

5

CUSHION | L,M,A

35765-15010

2
Out of stock

6

SPACER | L,M,A This part replaces 35766-15010.

35766-37110

2
Out of stock

7

CUSHION | L,M,A

35765-22210

2
Out of stock

8

SPACER | L,M,A This part replaces 35766-22210.

35766-37120

2
Out of stock

9

BULB | 6V, 32/30P

09471-06030

1
Out of stock

10

REFLECTOR

35970-31610

2
Out of stock

11

NUT This part replaces 08311-11058.

08310-00057

2
Out of stock

12

LOCK WASHER | Includes Item(s) 13 This part replaces 08321-21058.

08321-0105A

2
Out of stock

13

BOLT This part replaces 01112-06208.

01500-06207

2
Out of stock

14

BOLT This part replaces 01112-06258.

01500-06257

2
Out of stock

15

WASHER (6.5X20X1.6) | 6.5x20x1.2 This part replaces 09160-06020.

09160-06066

4
Out of stock

16

LOCK WASHER | K,L,M

08321-11068

—
Out of stock

17

.NUT This part replaces 08311-11068.

08310-00067

4
Out of stock

18

GROMMET | K

09308-04001

1
Out of stock

19

GROMMET | B

09308-07002

2
Out of stock

20

GROMMET | L,M

09308-07005

2
Out of stock

21

NO DESCRIPTION AVAILABLE | K,L,M; Includes Item(s) 22 This part replaces 35950-25610.

35950-25611

2
Out of stock

22

BRACKET, FRONT REFLECTER | K,L,M

35954-16400

—
Out of stock

23

LOCK WASHER | K,L,M This part replaces 08321-21108.

08321-01107

2
Out of stock

24

NUT | K,L,M This part replaces 08312-32108.

08310-00107

2
Out of stock

25

REFLEX REFLECTOR FRONT | A This part replaces 35950-31010.

35950-49080

2
Out of stock

26

SPACER | A

35995-29000

2
Out of stock

27

WASHER (6.5X20X1.2) | A This part replaces 09160-06027.

09160-06077

2
Out of stock
