1975 Suzuki T500J Rear Wheel Diagram

← All diagrams

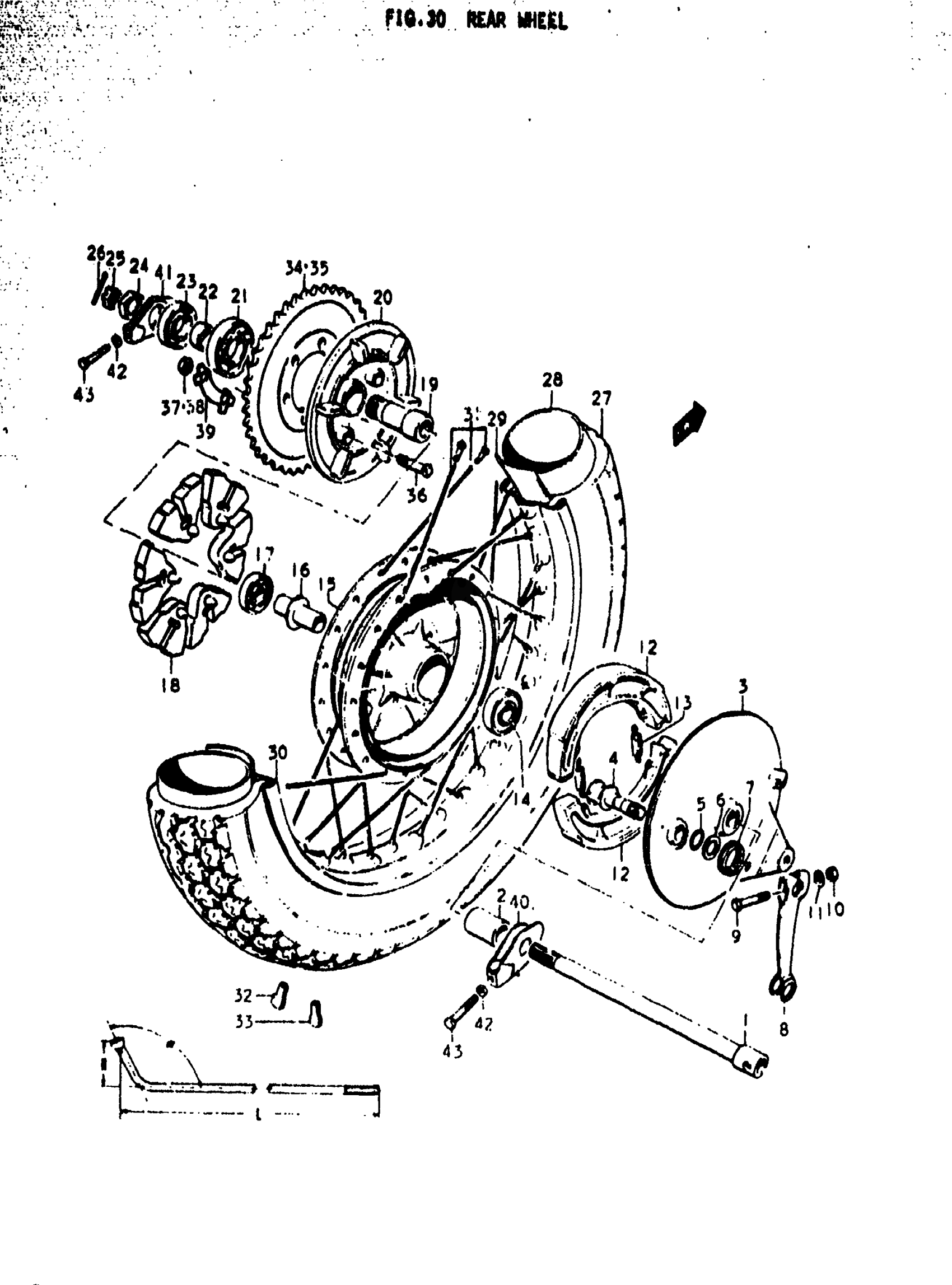

Find the part on the Rear Wheel diagram for your 1975 Suzuki T500J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki T500J Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | J,K,L,M; OD:16, L:252 This part replaces 64711-11000.

64711-0800V

1
Out of stock

2

SPACER, REAR AXLE | R,J,K,L,M; 17.5x28x36.8

09180-17024

1
Out of stock

3

PANEL, REAR HUB | R,J,K; TO 64210-11001

64210-11000

—
Out of stock

3

PANEL, REAR HUB | L,M; T500-68083

64210-11001

—
Out of stock

4

CAM, BRAKE | R; FROM 54440-11002 This part replaces 54440-11003.

64440-38A00

1
Out of stock

4

CAM, BRAKE | J,K; TO 54440-33001 This part replaces 54440-33000.

54440-33002

1
Out of stock

4

CAM, BRAKE | L,M This part replaces 54440-33001.

54440-33002

1
Out of stock

5

O RING (ID:14.8,D:2.40) | R,J,K,L,M; 14.8x19.6x2.4 This part replaces 09280-15001.

09280-15003

1
Out of stock

6

WASHER | R,J,K,L,M; 15x24x1.6 This part replaces 09160-15001.

09160-15048

1
Out of stock

7

SPRING | R,J,K,L,M This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

8

LEVER, BRAKE CAM | R,J,K,L,M

64451-11000

1
Out of stock

9

BOLT | R,J,K,L,M This part replaces 01112-06408.

01500-0640B

1
Out of stock

10

.NUT | R,J,K,L,M This part replaces 08311-11068.

08310-00067

1
Out of stock

11

WASHER | R,J,K,L,M This part replaces 08322-21068.

08322-01067

1
Out of stock

12

SHOE SET,BRAKE( | R,J,K,L,M; SEE NOTE 1. This part replaces 64410-11002.

64400-11870

2
Out of stock

13

SPRING, BRAKE SHOE | R,J,K,L,M

55420-30000

2
Out of stock

14

BEARING, LH | R,J,K,L,M This part replaces 08143-63030.

08143-63037

1
Out of stock

15

DRUM, REAR HUB | R,J,K,L,M

64110-11000

—
Out of stock

16

SPACER, HUB BEARING | R,J,K,L,M; L:57

64730-11000

1
Out of stock

17

BEARING, DRIVE SHAFT RH | R,J,K,L,M This part replaces 08113-62030.

09262-17023

1
Out of stock

18

SHOCK ABSURBER, REAR DRUM | R,J,K,L,M This part replaces 64651-11000.

64651-11002

6
Out of stock

19

SHAFT, SPROCKET DRUM | R,J,K,L,M

64761-11000

1
Out of stock

20

DRUM, REAR SPROCKET | R,J,K,L,M

64611-11000

1
Out of stock

21

BEARING, LH | R,J,K,L,M This part replaces 08113-62050.

09262-25003

1
Out of stock

22

SPACER, SPROCKET DRUM | R,J,K,L,M; 25x30.5x1113

09180-25011

1
Out of stock

23

SEAL,OIL(30.5X5 | R,J,K,L,M; 30.5x52.2x8 This part replaces 09283-30001.

09285-30003

1
Out of stock

24

NUT | R,J,K,L,M; 24SCREW This part replaces 09140-24002.

09140-24010

1
Out of stock

25

NUT | R,J,K,L,M This part replaces 08314-31168.

08314-3116A

1
Out of stock

26

PIN, COTTER | R,J,K,L,M This part replaces 04111-40408.

04111-4040A

1
Out of stock

27

TIRE, REAR | R,J,K; 4.00-18

65100-15011

—
Out of stock

27

TIRE, REAR | L; 4.00-18

65100-15012

—
Out of stock

27

TIRE, REAR | M

65100-15013

—
Out of stock

28

TUBE, INNER | R,J,K,L,M; 4.00-18 This part replaces 65200-15011.

65200-49015

1
Out of stock

29

IN TUBE PROTECT | R,J,K,L,M; 3.50-18 This part replaces 65261-15010.

55261-26F10

1
Out of stock

30

RIM, WHEEL | R,J,K,L; 2.158x18

65311-15020

1
Out of stock

30

RIM, WHEEL | M

65311-15021

1
Out of stock

31

SPOKE SET,REAR | R,J,K,L This part replaces 65320-15818.

65320-15819

1
Out of stock

31

SPOKE SET | M

65300-15830

1
Out of stock

32

BALANCER WHEEL (15G) | 3)J,K,L This part replaces 55411-11000.

55411-26G00

1
Out of stock

32

BALANCER S AR | 3)J,K,L

55411-37000

—
Out of stock

33

BALANCER WHEEL (30G) | 3)J,K,L This part replaces 55412-11000.

55413-41F00

1
Out of stock

33

BALANCER L | M

55412-37000

—
Out of stock

34

SPROCKET, REAR | NT:33 This part replaces 64511-15000.

64511-15001

1
Out of stock

34

SPROCKET, REAR

64511-15001

1
Out of stock

34

SPROCKET, REAR | NT:32; OPT

64511-15730

—
Out of stock

34

NO DESCRIPTION AVAILABLE | NT:34; OPT This part replaces 64511-15740.

64511-15741

1
Out of stock

34

SPROCKET, REAR | NT:35; OPT

64511-15750

—
Out of stock

35

SPROCKET, REAR | OPT

64511-15751

1
Out of stock

35

SPROCKET, REAR | NT:38; OPT

64511-15780

—
Out of stock

35

SPROCKET, REAR | OPT

64511-33760

1
Out of stock

35

SPROCKET, REAR | NT:39; OPT

64511-15790

—
Out of stock

36

BOLT | 10x35 This part replaces 09119-10002.

09105-10001

6
Out of stock

37

NUT

09140-10018

—
Out of stock

38

NUT This part replaces 08312-31108.

08310-00107

6
Out of stock

39

WASHER, SPROCKET

09169-10006

3
Out of stock

40

ADJUSTER, CHAIN RH

61410-15002

1
Out of stock

41

ADJUSTER, CHAIN LH

61420-15002

1
Out of stock

42

2

$1.93

In stock

43

BOLT (8X50) | 8x50 This part replaces 09104-08006.

09104-08034

2
Out of stock
