1975 Suzuki T500J Gear Shifting Diagram

← All diagrams

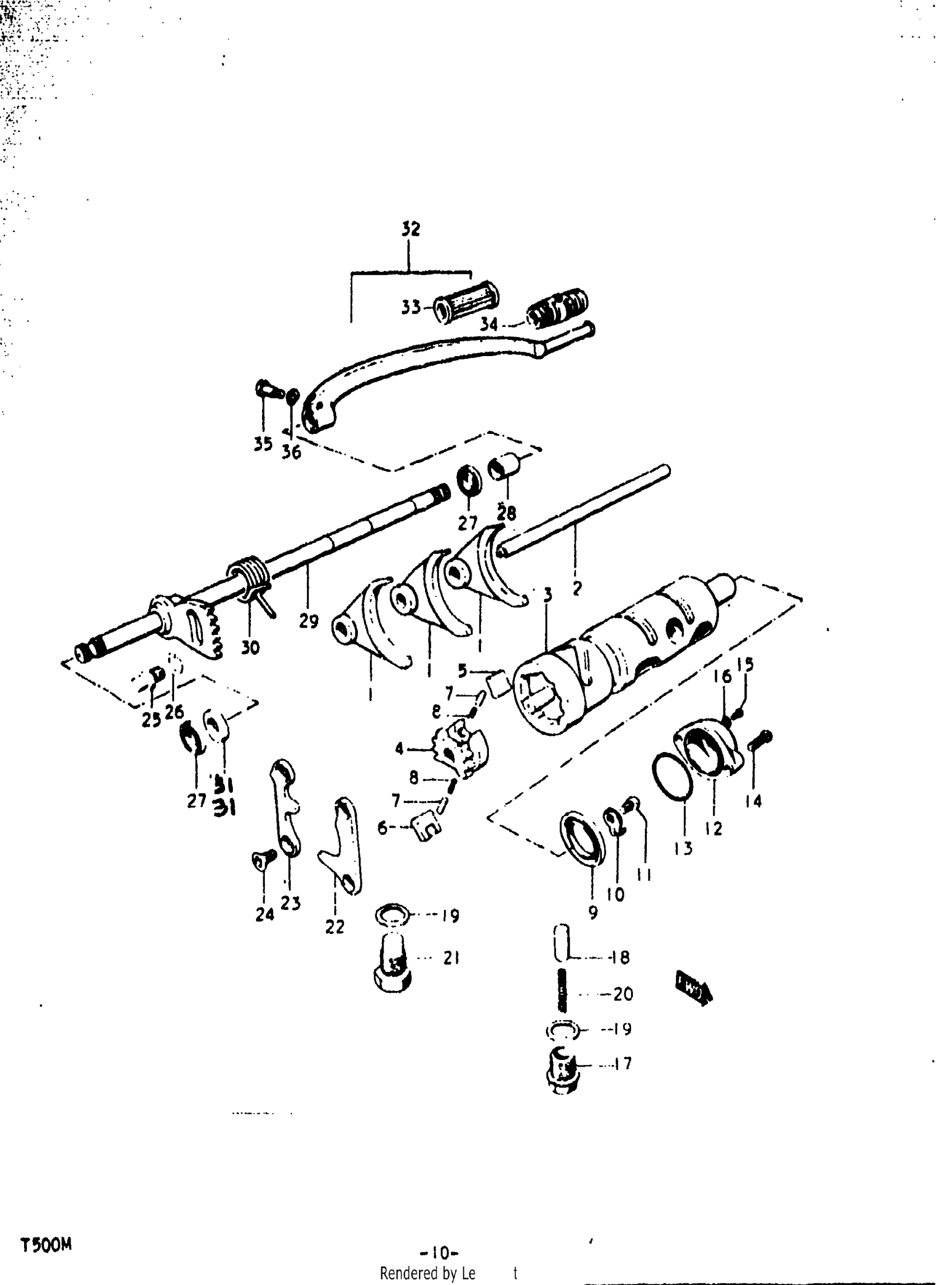

Find the part on the Gear Shifting diagram for your 1975 Suzuki T500J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki T500J Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING | R,J,K,L,M

25211-15000

3
Out of stock

2

SHAFT, SHIFTING FORK | R,J,K,L,M

25411-15000

1
Out of stock

3

CAM, GEAR SHIFTING | R,J,K,L,M

25310-15001

—
Out of stock

4

GEAR, GEAR SHIFT CAM DRIVEN | R,J,K,L,M This part replaces 25322-11000.

25322-31310

1
Out of stock

5

PAWL, GEAR SHIFT NO.1 | R,J,K,L,M This part replaces 25323-11000.

25323-34201

1
Out of stock

6

PAWL, GEAR SHIFT NO.2 | R,J,K,L,M This part replaces 25324-11000.

25324-34201

1
Out of stock

7

ROLLER, SHIFTING PAWL | R,J,K,L,M

09261-05003

2
Out of stock

8

SPRING, PAWL ROLLER | R,J,K,L,M

09440-04003

2
Out of stock

9

SEAL,OIL(16X30X | R,J,K,L,M This part replaces 09285-16002.

09285-16005

1
Out of stock

10

CONTACT, SWITCH | R,J,K,L,M This part replaces 37711-05100.

37711-05101

1
Out of stock

11

SCREW | R,J,K,L,M This part replaces 02122-06128.

02122-06127

1
Out of stock

12

SWITCH, GEAR SHIFTING | R,J,K,L,M

37721-15002

1
Out of stock

13

O RING | R,J,K,L,M

09280-28002

1
Out of stock

14

SCREW | R,J,K,L,M This part replaces 02111-05207.

02112-05207

2
Out of stock

15

SCREW | R,J,K,L,M This part replaces 02111-03048.

02112-03047

1
Out of stock

16

WASHER | R,J,K,L,M; 3.3x8x0.5 This part replaces 08322-21038.

08322-01037

1
Out of stock

18

STOPPER, CAM | R,J,K,L,M This part replaces 25351-11000.

25351-11010

1
Out of stock

19

GASKET, PLUG | R,J,K,L,M

09160-14004

2
Out of stock

20

SPRING, CAM STOPPER | R,J,K,L,M

09440-05007

1
Out of stock

21

BOLT, SHIFTING CAM GULDE | R,J,K,L,M; 14x20

09119-14003

1
Out of stock

22

PLATE, STOPPER | R,J,K,L,M

25331-11001

1
Out of stock

23

GUIDE, GEAR SHIFTING CAM | R,J,K,L,M

25341-31000

1
Out of stock

24

SCREW | R,J,K,L,M This part replaces 02122-06128.

02122-06127

4
Out of stock

25

STOPPER, ARM | R,J,K,L,M This part replaces 25671-01000.

25671-01011

1
Out of stock

27

OIL SEAL (12X22X9) | R,J,K,L,M This part replaces 09285-12002.

09285-12006

2
Out of stock

28

CUSHION, SHIFTING SHAFT | R,J,K,L,M

09320-13004

1
Out of stock

29

SHAFT, GEAR SHIFTING | R,J,K,L,M

25510-15001

1
Out of stock

30

SPRING, SHIFTING SHAFT | R,J,K,L,M

09444-26004

1
Out of stock

31

SPACER, SHIFTING SHAFT | R,J,K,L,M

09180-12021

1
Out of stock

32

LEVER ASSY, GEAR SHIFTING | R,J,K; TO 25600-18001 This part replaces 25600-18000.

25600-18001

1
Out of stock

32

LEVER ASSY, GEAR SHIFTING | L

25600-18001

1
Out of stock

32

LEVER ASSY, GEAR SHIFTING | M; Includes Item(s) 33 - 34 This part replaces 25600-18002.

25600-18001

1
Out of stock

33

.RUBBER,GEAR SHIFT PEDAL | R,J,K,L This part replaces 25652-03201.

25652-16510

1
Out of stock

34

.RUBBER,GEAR SHIFT PEDAL | L,M This part replaces 25652-16500.

25652-16510

1
Out of stock

35

BOLT, REAR | R,J,K,L,M This part replaces 01122-08208.

01500-08207

1
Out of stock
