1975 Suzuki T500J Fuel Tank Diagram

← All diagrams

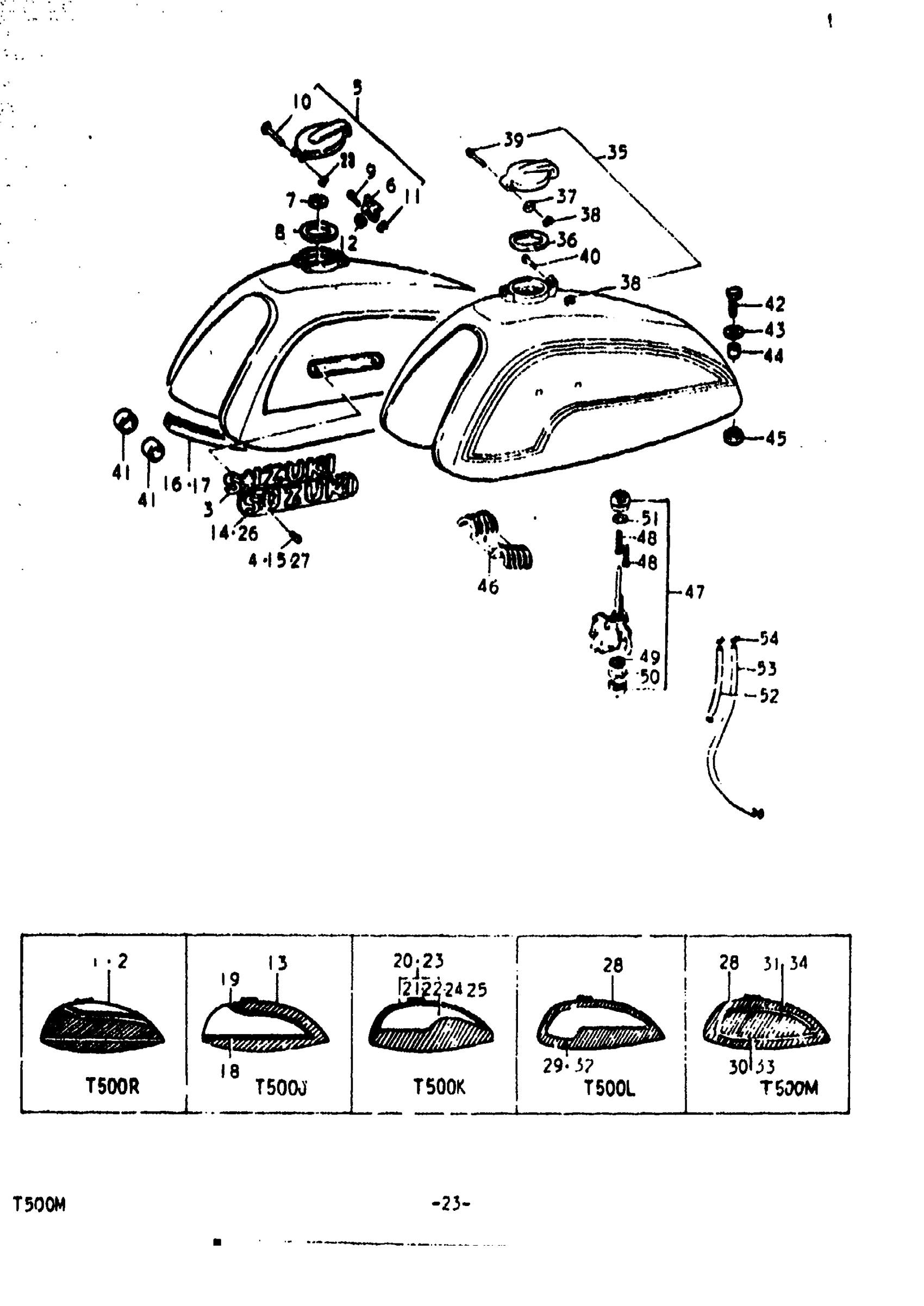

Find the part on the Fuel Tank diagram for your 1975 Suzuki T500J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki T500J Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | R This part replaces 44110-15102-577.

44110-15620-737

1
Out of stock

2

NO DESCRIPTION AVAILABLE | R This part replaces 44110-15102-578.

44110-15620-737

1
Out of stock

3

EMBLEM, FUEL TANK | R

68111-18600

2
Out of stock

4

4

$2.27

In stock

5

CAP ASSY, FUEL TANK | R,J; Includes Item(s) 6 - 12

44200-15100

1
Out of stock

6

LEVER | R,J

44246-15100

1
Out of stock

7

GASKET | R,J

09161-05005

—
Out of stock

8

GASKET | R,J

44248-15100

1
Out of stock

9

PIN | R,J

09208-03001

1
Out of stock

10

PIN | R,J

09208-03002

1
Out of stock

11

E RING | R,J

09383-02003

2
Out of stock

12

SPRING | R,J

09444-06002

1
Out of stock

13

NO DESCRIPTION AVAILABLE | J This part replaces 44110-15600-523.

44110-15620-737

1
Out of stock

13

NO DESCRIPTION AVAILABLE | J This part replaces 44110-15600-524.

44110-15620-737

1
Out of stock

14

EMBLEM, FUEL TANK | J: WHITE

68111-15700

—
Out of stock

15

SCREW | J This part replaces 09127-03002.

02122-0306B

4
Out of stock

16

MOULDING, TANK RH | J,K,L,M

68241-15600

1
Out of stock

17

MOULDING; TANK LH | J,K,L,M

68251-15600

1
Out of stock

18

TAPE, STRIPING | J:600

68115-15600-019

—
Out of stock

19

NO DESCRIPTION AVAILABLE | J; :11000 This part replaces 68116-15600.

68100-15870

—
Out of stock

20

NO DESCRIPTION AVAILABLE | K; Includes Item(s) 21 - 22 This part replaces 44100-15830-279.

44110-15620-737

1
Out of stock

21

TAPE, STRIPING RH | K

68115-15610-929

—
Out of stock

22

TAPE, STRIPING LH | K

68125-15600-929

—
Out of stock

23

NO DESCRIPTION AVAILABLE | K; Includes Item(s) 24 - 25 This part replaces 44100-15830-715.

44110-15620-737

1
Out of stock

24

TAPE, STRIPING RH | K

68115-15610-915

—
Out of stock

25

TAPE, STRIPING LH | K

68125-15600-915

—
Out of stock

26

EMBLEM, FUEL TANK | K,L; ORANGE

68111-15601

2
Out of stock

26

EMBLEM, FUEL TANK | M

68111-15602

—
Out of stock

27

SCREW | K,L,M This part replaces 09127-03002.

02122-0306B

4
Out of stock

28

TANK, FUEL | L

44110-15620-OOF

—
Out of stock

28

NO DESCRIPTION AVAILABLE | M This part replaces 44110-15630-797.

44110-15620-737

1
Out of stock

29

TAPE, STRIPING RH | L

68115-15200-764

—
Out of stock

30

NO DESCRIPTION AVAILABLE | M This part replaces 68115-15620-764.

68100-15850-764

1
Out of stock

31

NO DESCRIPTION AVAILABLE | M This part replaces 68117-15620-764.

68100-15850-764

1
Out of stock

32

TAPE, STRIPING LH | L

68125-15200-764

—
Out of stock

33

NO DESCRIPTION AVAILABLE | M This part replaces 68125-15620-764.

68100-15850-764

1
Out of stock

34

NO DESCRIPTION AVAILABLE | M This part replaces 68127-15620-764.

68100-15850-764

1
Out of stock

35

CAP ASSY,FUEL T | K,L,M; Includes Item(s) 36 - 40 This part replaces 44200-33011.

44200-33012

1
Out of stock

36

1

$9.56

In stock

37

WASHER | K,L,M

44238-33010

2
Out of stock

38

E RING | K,L,M

09383-02003

2
Out of stock

39

PIN, FRONT | K,L,M

44239-33010

1
Out of stock

40

PIN, LOCK | K,L,M

44233-33010

1
Out of stock

41

2

$2.57

In stock

42

1

$2.73

In stock

43

WASHER, TANK REAR | R,J,K,L,M

09160-08006

1
Out of stock

43

WASHER, EXHAUST SUPPORT | M This part replaces 09160-08002.

09160-08135

1
Out of stock

45

1

$2.92

In stock

46

CUSHION, TANK REAR (1) | R,J,K,L,M

44541-15000

1
Out of stock

47

COOK ASSY, FUEL | R,J,K; TO 44300-18450 This part replaces 44300-15051.

44300-18450

1
Out of stock

47

COOK ASSY, FUEL | L,M; Includes Item(s) 48 - 51

44300-18450

1
Out of stock

48

FILTER | R,J,K,L,M

44322-15050

—
Out of stock

49

FILTER | R,J,K,L,M

44344-15080

1
Out of stock

50

GASKET, FILTER CUP | R,J,K,L,M

44346-10050

1
Out of stock

51

GASKET | R,J,K,L,M

44348-10050

1
Out of stock

52

1

$7.25

In stock

53

HOSE, FUEL RH | R,J,K,L,M; L:200

09343-05032

—
Out of stock

54

4

$1.76

In stock
