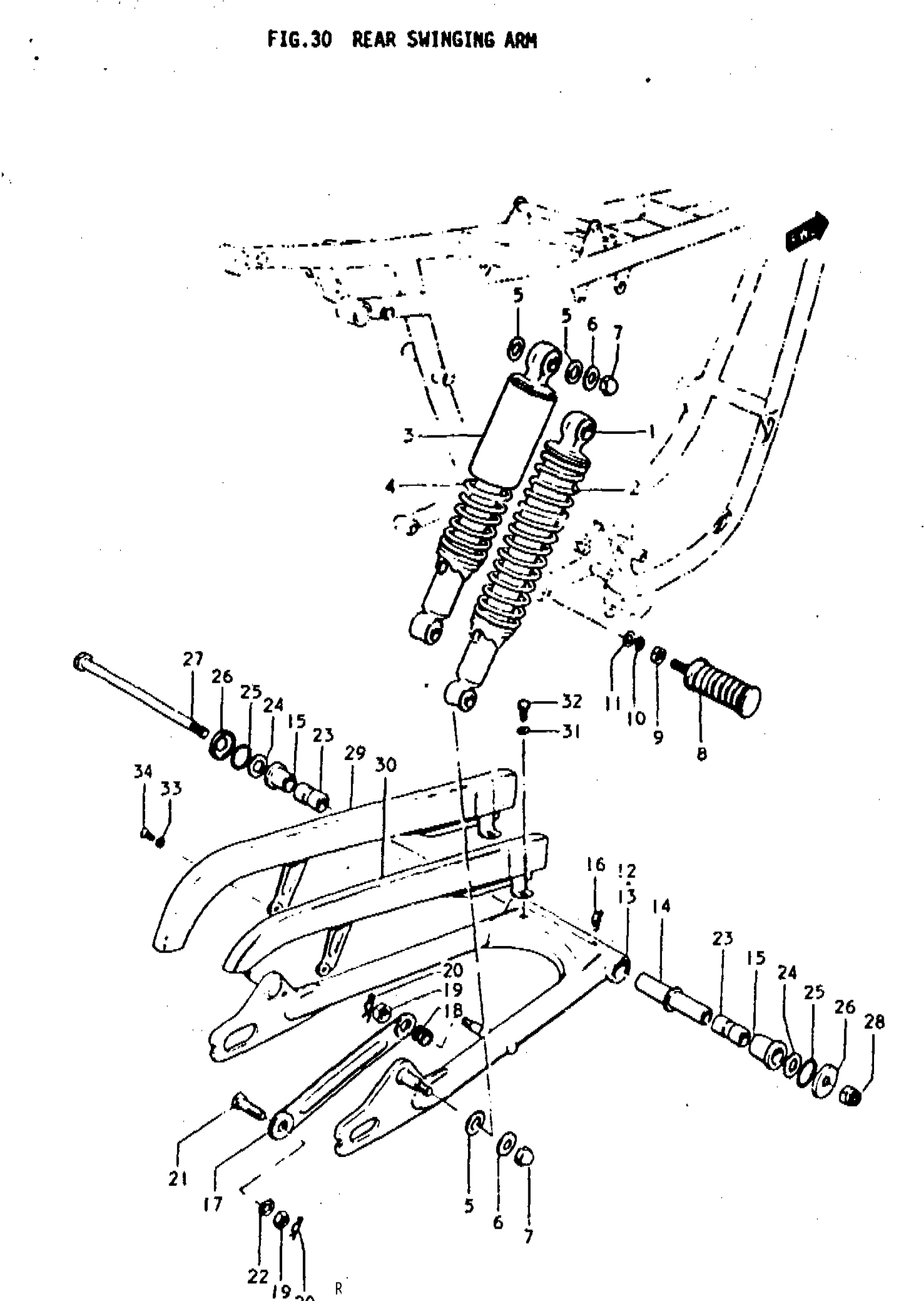

Find the part on the Rear Swinging Arm diagram for your 1972 Suzuki T3501, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki T3501 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSORBER ASSY, REAR | 1,2; FROM 62100-18310; Includes Item(s) 2

62100-15110

2
Out of stock

2

SPRING, SHOCK ABSORBER | 1,2; 38x55x185 FROM 62211-18310

62211-15110

—
Out of stock

3

SHOCK ABSORBER ASSY, REAR | R,J; TO 62100-33010; Includes Item(s) 4

62100-18600

—
Out of stock

4

SPRING, SHOCK ABSORBER | R,J

62211-15110

—
Out of stock

6

WASHER This part replaces 08322-11128.

08322-01127

4
Out of stock

7

4

$2.73

In stock

8

FOOTREST SET,PI | Includes Item(s) 9 This part replaces 43600-10808.

43600-10809

2
Out of stock

9

2

$2.35

In stock

10

2

$1.93

In stock

11

WASHER This part replaces 08322-21108.

08322-01107

2
Out of stock

12

SWINGING ARM ASSY | 1,2; FROM 61107-18806-019 TO 61100-18830-019

61100-18816-019

—
Out of stock

13

ARM SET, REAR SWINGING | R,J; TO 61100-18831-019; Includes Item(s) 14 - 16 This part replaces 61100-18830-019.

61100-18831-019

1
Out of stock

14

SPACER | 10:15.3, L:99.2

61280-15000

1
Out of stock

15

BUSHING | 10.5x24x2.3 FROM 09301-22001

09307-22003

2
Out of stock

16

1

$4.39

In stock

17

TORQUE LINK, REAR

64310-11000

1
Out of stock

18

SPRING, TORQUE LINK

09440-18002

1
Out of stock

19

2

$2.35

In stock

20

CLIP This part replaces 09385-10001.

09385-10005

2
Out of stock

21

BOLT, TORQUE LINK | 10x28

09101-10003

1
Out of stock

22

1

$1.93

In stock

23

SPACER | 14x22x41.5 TO 61251-15001 This part replaces 61251-15000.

61251-15001

2
Out of stock

24

THRUST WASHER, SWINGING ARM | 14.5x29x2.3

09160-14009

2
Out of stock

25

2

$1.77

In stock

26

COVER, SWINGING ARM DUST

61262-15000

2
Out of stock

27

NO DESCRIPTION AVAILABLE | 14x725 FROM 61211-15001 This part replaces 61211-18400.

61211-18401

1
Out of stock

28

NUT, PIVOT SHAFT | FROM 09159-14002

09159-14003

1
Out of stock

29

CASE, CHAIN | CHROME-PLATED This part replaces 61310-11601.

61310-18600

1
Out of stock

30

CASE, CHAIN | 2,R,J; CHROME-PLATED

61310-18600

1
Out of stock

31

1

$2.28

In stock

32

BOLT

01111-06128

—
Out of stock

33

1

$1.57

In stock

34

SCREW

02121-05128

—
Out of stock
