1969 Suzuki T305 Tail/brake Lamp Diagram

← All diagrams

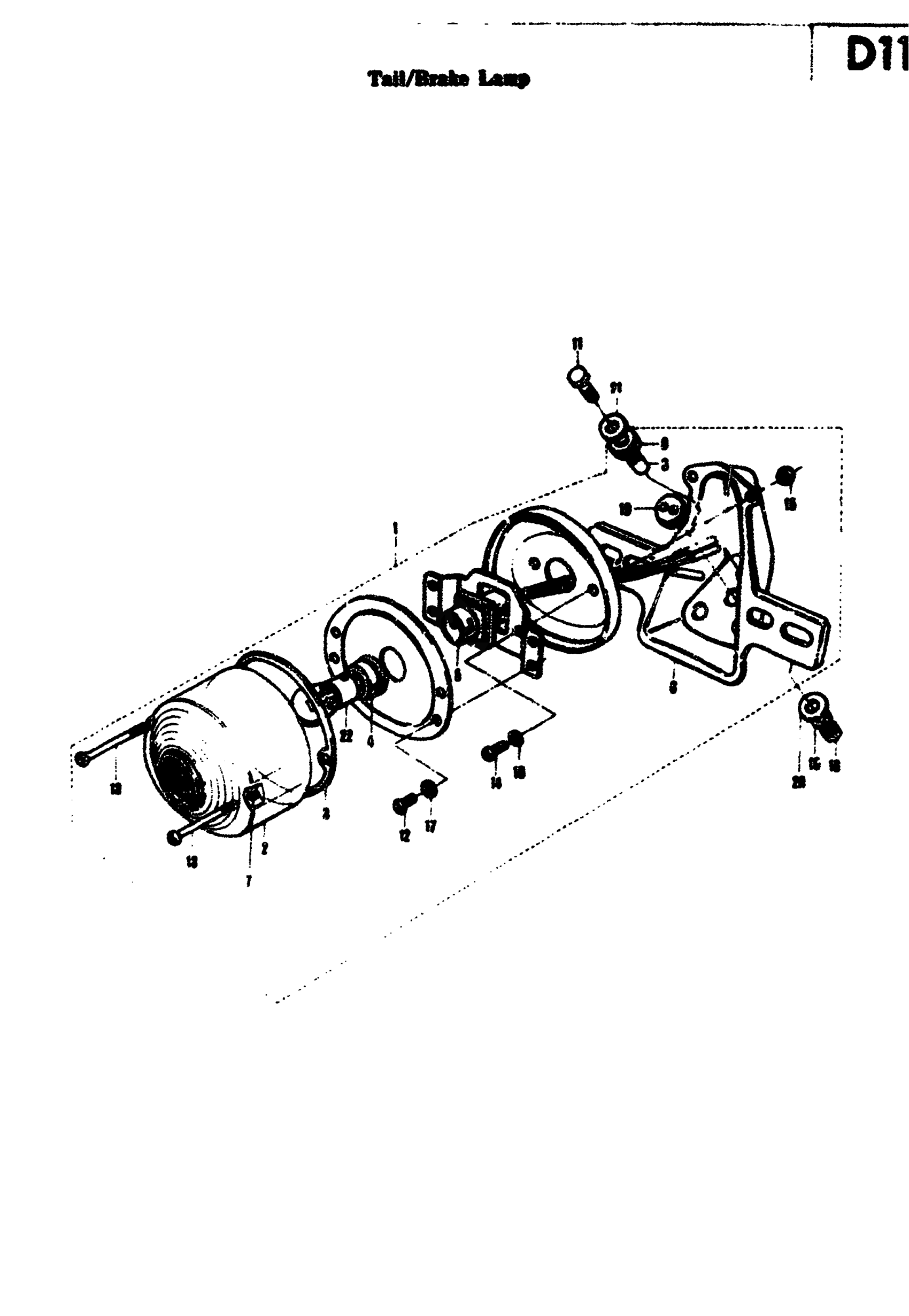

Find the part on the Tail/brake Lamp diagram for your 1969 Suzuki T305, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Suzuki T305 Tail/brake Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAIL/BRAKE LAMP ASS'Y

35710-18610

—
Out of stock

2

1

$46.67

In stock

3

TAIL/BRAKE LAMP LENS GASKET

35713-15010

1
Out of stock

4

TAIL/BRAKE LAMP BULB BUFFER

35716-15010

1
Out of stock

5

SOCKET This part replaces 35718-18610.

35718-05611

—
Out of stock

6

TAIL/BRAKE LAMP BRACKET

35726-18600

—
Out of stock

7

BAIL/BRAKE LAMP LONS WASHER

35727-03010

2
Out of stock

8

TAIL/BRAKE LAMP BUFFER

35765-15010

3
Out of stock

9

3

$7.01

In stock

10

TAIL/BRAKE LAMP LAND WIRE GROM

35728-18610

1
Out of stock

11

3

$2.48

In stock

12

CROSS HEAD SCREW

02111-04088

—
Out of stock

13

2

$1.80

In stock

14

CROSS HEAD SCREW

02111-05128

—
Out of stock

15

2

$1.97

In stock

16

3

$1.82

In stock

17

2

$2.00

In stock

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

19

3

$2.28

In stock

20

3

$1.84

In stock

21

WASHER (6.5X20X1.6) | L.D.-6.5(0.26), O.D.-28(9.79) T.-1.6(0.06) This part replaces 09160-06020.

09160-06066

3
Out of stock

22

BULB (12V,23W/8W) | 12V. 32/4CP This part replaces 09471-12002.

09471-12035

1
Out of stock
