1969 Suzuki T305 A.c.generator-Ignition Coil Diagram

← All diagrams

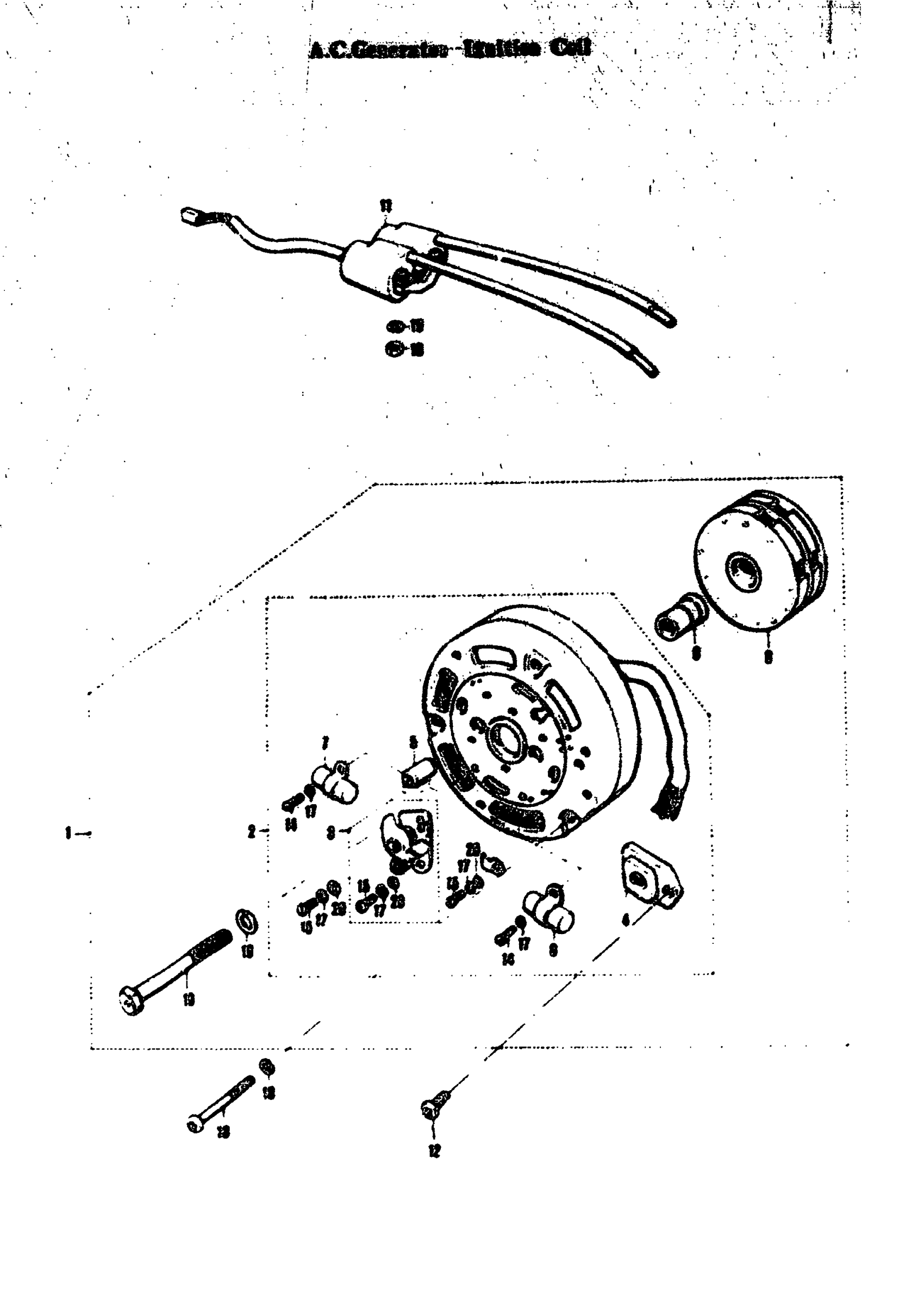

Find the part on the A.c.generator-Ignition Coil diagram for your 1969 Suzuki T305, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Suzuki T305 A.c.generator-Ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSY | TC305 This part replaces 31400-18020.

31400-18524

1
Out of stock

2

STATOR ASS'Y | TC305

31401-18020

—
Out of stock

3

CONTACT POINT ASS'Y | TC305

31440-15020

2
Out of stock

4

A.C.GENERATOR WIRING HARNESS B | TC305TC305

31485-15020

—
Out of stock

5

CAM OIL FELT | TC305

31638-15020

2
Out of stock

6

CONDENSER, RH | TC305 This part replaces 31641-15020.

31641-18522

1
Out of stock

7

CONDENSER, LH | TC305 This part replaces 31642-15021.

31642-18522

1
Out of stock

8

ROTOR | TC305

31710-15020

—
Out of stock

9

CONTACT BREAKER CAM | TC305

31724-15021

1
Out of stock

10

ROTOR FITING BOLT | TC305

31791-15020

—
Out of stock

11

NO DESCRIPTION AVAILABLE | TC305 This part replaces 33410-15020.

33410-15021

1
Out of stock

12

CROSS HEAD SCREW

02111-06108

—
Out of stock

13

3

$2.16

In stock

14

SLOT PAN HEAD SCREW

02311-04068

—
Out of stock

15

SLOT PAN HEAD SCREW

02311-04040

—
Out of stock

16

2

$1.93

In stock

17

8

$2.00

In stock

18

3

$2.28

In stock

19

3

$2.28

In stock

20

6

$2.03

In stock
