1972 Suzuki T250II Rear Wheel Diagram

← All diagrams

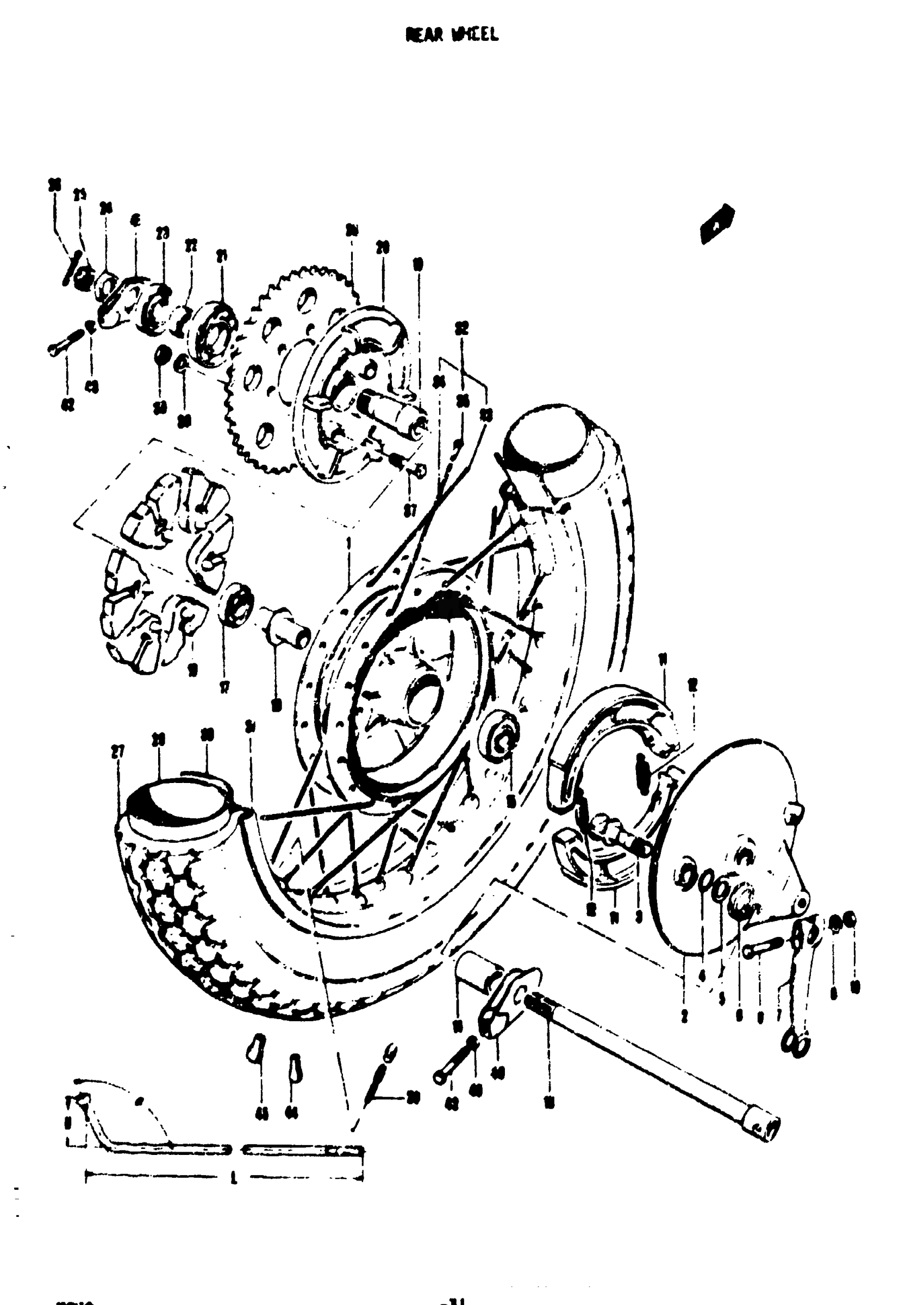

Find the part on the Rear Wheel diagram for your 1972 Suzuki T250II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki T250II Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64110-11000

—
Out of stock

2

PANEL, BRAKE ANCHER

64210-11000

—
Out of stock

3

SHAFT, BRAKE CAM

54440-11002

—
Out of stock

4

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

5

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

1
Out of stock

6

SPRING This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

7

LEVER, BRAKE CAM

64451-11000

1
Out of stock

8

BOLT

01111-06408

—
Out of stock

9

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

10

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

11

SHOE SET,BRAKE( This part replaces 64410-11000.

64400-11870

2
Out of stock

12

SPRING, BRAKE SHOE

55420-30000

2
Out of stock

13

NO DESCRIPTION AVAILABLE | 16SCREW, L:252 This part replaces 64711-11000.

64711-0800V

1
Out of stock

14

SPACER | 17.5x28x36.8

09180-17024

1
Out of stock

15

BEARING, LH This part replaces 08143-63030.

08143-63037

1
Out of stock

16

SPACER, HUB BEARING | L:57

64730-11000

1
Out of stock

17

BEARING, FRONT HUB RH This part replaces 08143-62030.

08143-62037

1
Out of stock

18

SHOCK ABSURBER, REAR DRUM This part replaces 64651-11000.

64651-11002

6
Out of stock

19

SHAFT, SPROCKET DRUM

64761-11000

1
Out of stock

20

DRUM, REAR SPROCKET

64611-11000

1
Out of stock

21

BEARING, LH This part replaces 08113-62050.

09262-25003

1
Out of stock

22

SPACER | 25x30.5x11.3

09180-25011

1
Out of stock

23

SEAL,OIL(30.5X5 | 30.5x52x8 This part replaces 09283-30001.

09285-30003

1
Out of stock

24

NUT This part replaces 09140-24002.

09140-24010

1
Out of stock

25

NUT

08314-31167

—
Out of stock

26

COTTER PIN

04111-40358

—
Out of stock

27

TIRE, REAR | T250,T250II; 3.00-18

65100-11010

—
Out of stock

27

TIRE, REAR | T250R,T250J; 3.25-18

65100-18012

—
Out of stock

28

TUBE ASSY,WHEEL | T250,T250II; 3.00-18 This part replaces 55200-11601.

55200-26F01

1
Out of stock

28

TUBE ASSY, WHEEL INNER | T250R,T250J; 3.25-18 This part replaces 65200-18010.

65200-44AA0

1
Out of stock

29

VALVE, INNER TUBE

55250-01000

—
Out of stock

30

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

1
Out of stock

31

RIM, WHEEL | T250,T250II; 1.60Ax18

55311-11020

1
Out of stock

31

RIM, WHEEL | T250R,T250J; 1.858x18

65311-11220

1
Out of stock

32

SPOKE SET,REAR | Includes Item(s) 33 - 35 This part replaces 65320-15818.

65320-15819

1
Out of stock

33

SPOKE, INNER | L:150.5, a:95.5 H:8.5

65321-15020

—
Out of stock

34

SPOKE, OUTER | L:150, a:80 H:10.5

65322-15020

—
Out of stock

35

NIPPLE, SPOKE

65325-03020

—
Out of stock

36

SPROCKET, REAR | NT:41

64511-11000

1
Out of stock

36

SPROCKET, REAR | NT:40, OPT

64511-11720

—
Out of stock

36

SPROCKET, REAR | NT:42, OPT

64511-11730

1
Out of stock

37

BOLT | 10SCREW, L:35 This part replaces 09119-10002.

09105-10001

6
Out of stock

38

LOCK WASHER

09169-10006

3
Out of stock

39

NUT | Includes Item(s) 40 This part replaces 08312-31108.

08310-00107

6
Out of stock

40

ADJUSTER, CHAIN RH

61410-15002

1
Out of stock

41

ADJUSTER, CHAIN LH

61420-15002

1
Out of stock

42

BOLT | T250; 8SCREW, L:40

09104-08004

—
Out of stock

42

BOLT (8X50) | 8SCREW, L:50 This part replaces 09104-08006.

09104-08034

2
Out of stock

43

2

$1.93

In stock

44

BALANCER WHEEL (15G) | (0~3) This part replaces 55411-11000.

55411-26G00

1
Out of stock

45

BALANCER WHEEL (30G) | (0~3) This part replaces 55412-11000.

55413-41F00

1
Out of stock
