1972 Suzuki T250II Piston - Crankshaft Diagram

← All diagrams

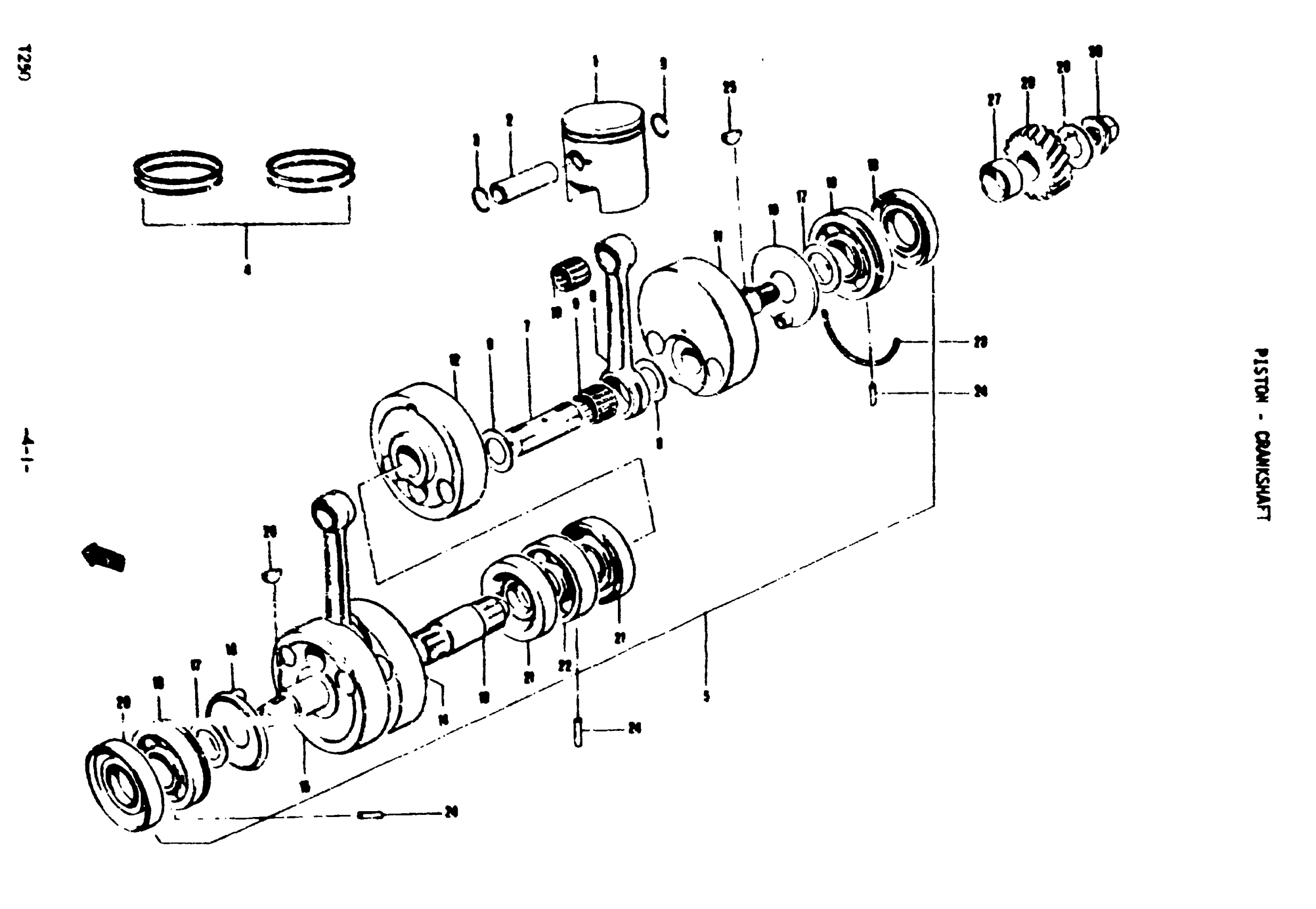

Find the part on the Piston - Crankshaft diagram for your 1972 Suzuki T250II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki T250II Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 12110-18400.

12110-18402

2
Out of stock

1

NO DESCRIPTION AVAILABLE | OS:0.5 This part replaces 12110-18750.

12103-18810-050

2
Out of stock

1

NO DESCRIPTION AVAILABLE | OS.1.0 This part replaces 12110-18760.

12103-18810-100

2
Out of stock

2

PIN, PISTON | 12.5x16x44.5 This part replaces 12151-08000.

12151-08001

2
Out of stock

3

CIRCLIP

09381-16001

4
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 12140-18410.

12140-18400

1
Out of stock

4

NO DESCRIPTION AVAILABLE | OS:0.5 This part replaces 12140-18720.

12140-18110-050

—
Out of stock

4

NO DESCRIPTION AVAILABLE | OS:1.0 This part replaces 12140-18730.

12140-18110-100

—
Out of stock

5

CRANKSHAFT ASSY | Includes Item(s) 6 - 23

12000-18802

—
Out of stock

6

ROD, CONNECTING

12161-18000

2
Out of stock

7

PIN, CRANK This part replaces 12211-18000.

12211-18001

2
Out of stock

8

WASHER | 20x34x1

09160-20016

4
Out of stock

9

BEARING, CRANK PIN | 20x26x17 This part replaces 09263-20001.

09263-20020

2
Out of stock

10

RN 16X21X19.6BR | 16x21x19.6 This part replaces 09263-16004.

09263-16015

2
Out of stock

11

CRANKSHAFT, RH

12220-18000

—
Out of stock

12

WHEEL, CENTER CRANKSHAFT RH

12240-18000

—
Out of stock

13

CRANKSHAFT, CENTER

12231-18000

1
Out of stock

14

WHEEL, CENTER CRANKSHAFT LH

12250-18000

—
Out of stock

15

CRANKSHAFT, LH

12260-18000

—
Out of stock

16

PLATE, OIL GUIDE

12511-18000

2
Out of stock

17

WASHER, SUB T/M DRIVE This part replaces 08211-25401.

09181-25251

2
Out of stock

18

B1 25X62X17 BEA | 25x55x17 This part replaces 09269-25004.

09269-25005

2
Out of stock

19

OIL SEAL | 32x65x12

09283-32001

1
Out of stock

20

OIL SEAL | 25x65x12

09283-25019

1
Out of stock

21

OIL SEAL | 25x65x14

09283-25032

2
Out of stock

22

NO DESCRIPTION AVAILABLE | 25x65x17 This part replaces 09262-25008.

09262-25009

1
Out of stock

23

C RING

09390-65002

1
Out of stock

24

DOWEL PIN

04221-04143

—
Out of stock

25

KEY

08341-31039

1
Out of stock

26

KEY

23341-31059

—
Out of stock

27

SPACER | 25x32x13.3

09180-25014

1
Out of stock

28

GEAR, PRIMARY DRIVE | NT:20

21111-18000

1
Out of stock

29

WASHER | 0D.30, T:0.8

09160-12002

—
Out of stock

30

NUT

09159-12103

1
Out of stock
