1969 Suzuki T20 Tail/brake Lamp Diagram

← All diagrams

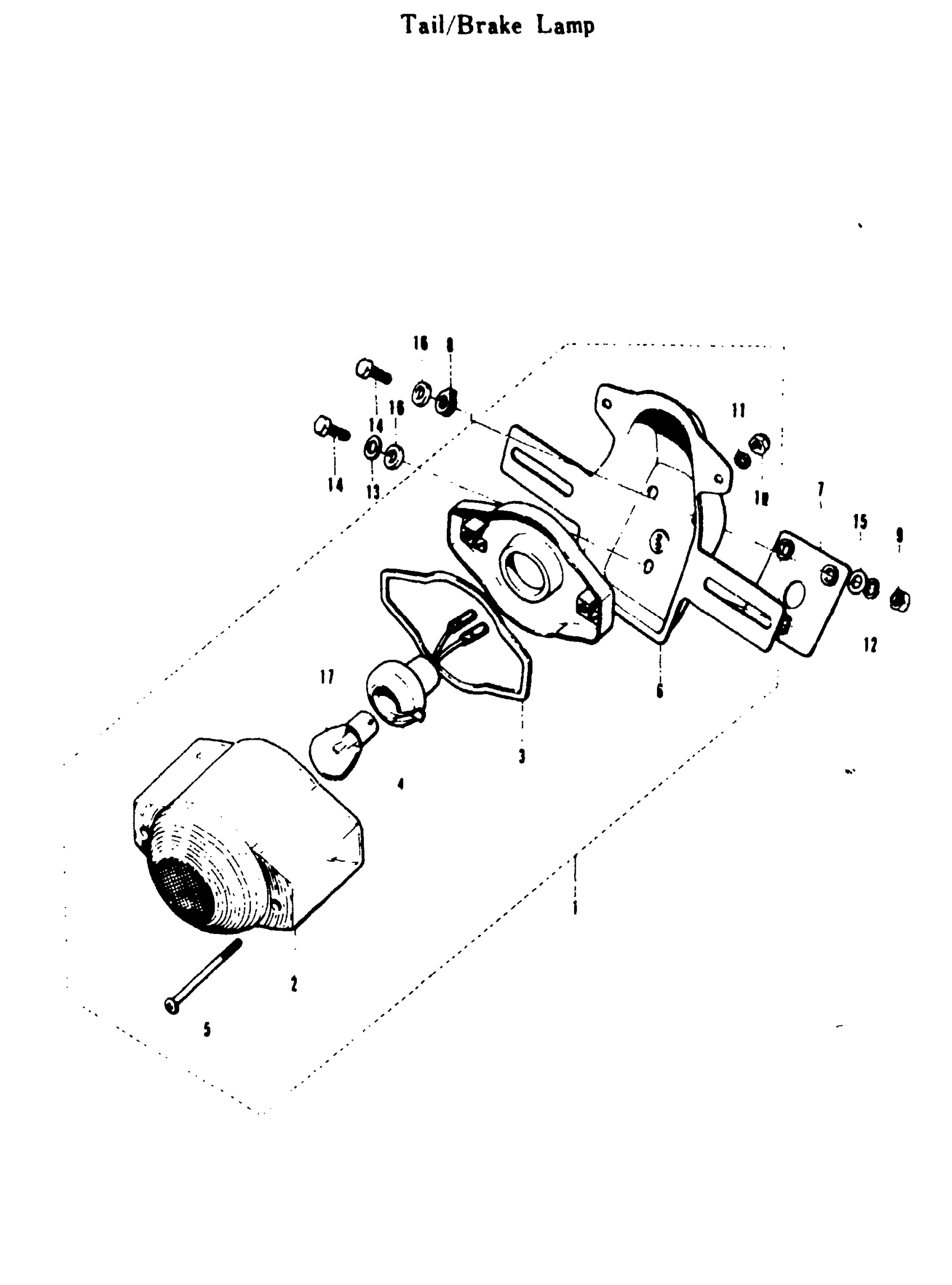

Find the part on the Tail/brake Lamp diagram for your 1969 Suzuki T20, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Suzuki T20 Tail/brake Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAIL/BRAKE LAMP ASS'Y

35710-11010

—
Out of stock

2

TAIL/BRAKE LAMP LENS

35712-11011

1
Out of stock

3

TAIL/BRAKE LAMP LENS GASKET

35713-11010

1
Out of stock

4

TAIL/BRAKE LAMP SOCKET

35715-11012

—
Out of stock

5

TAIL/BRAKE LAMP LENS SCREW | ISO 3 SCREW L. =51(2.01)

35723-03312

2
Out of stock

5

TAIL/BRAKE LAMP LENS SCREW

35723-03310

2
Out of stock

6

TAIL/BRAKE LAMP BRACKET

35726-11012

—
Out of stock

7

TAIL/BRAKE LAMP BUFFER

35735-11000

—
Out of stock

8

TAIL/BRAKE LAMP GROUNDING PIEC | TC250TC250

35737-11000

—
Out of stock

9

.NUT | ISO This part replaces 08311-11068.

08310-00067

3
Out of stock

9

HEXAGON NUT

08311-11051

3
Out of stock

9

.NUT | UP TO E NO T20-41304 This part replaces 08311-11068.

08310-00067

3
Out of stock

10

CROWN NUT | ISO

08313-11047

2
Out of stock

10

CROWN NUT

08313-11042

2
Out of stock

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

2
Out of stock

13

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

14

TAIL/BRAKE LAMP BOLT | ISO

09111-06101

—
Out of stock

14

TAIL/BRAKE LAMP BOLT

09111-06001

3
Out of stock

14

HEXAGON BOLT | UP TO E NO. T20 41304

01111-06128

—
Out of stock

15

TAIL/BRAKE LAMP WASHER | I.D. =5.2(0.20), O.D. =13(0.51) T =1.0(0.04)

09160-06008

3
Out of stock

16

TAIL/BRAKE LAMP R@@@ WASHER | I.D. =6(0.24), O.D. =13(0.51) T. =3(0.12)

09320-06004

—
Out of stock

17

BULB (12V,23W/8W) | TC250; 12V. 32/4 CP This part replaces 09471-12002.

09471-12035

1
Out of stock
