1969 Suzuki T20 A.C. Generator - Ignition Coil Diagram

← All diagrams

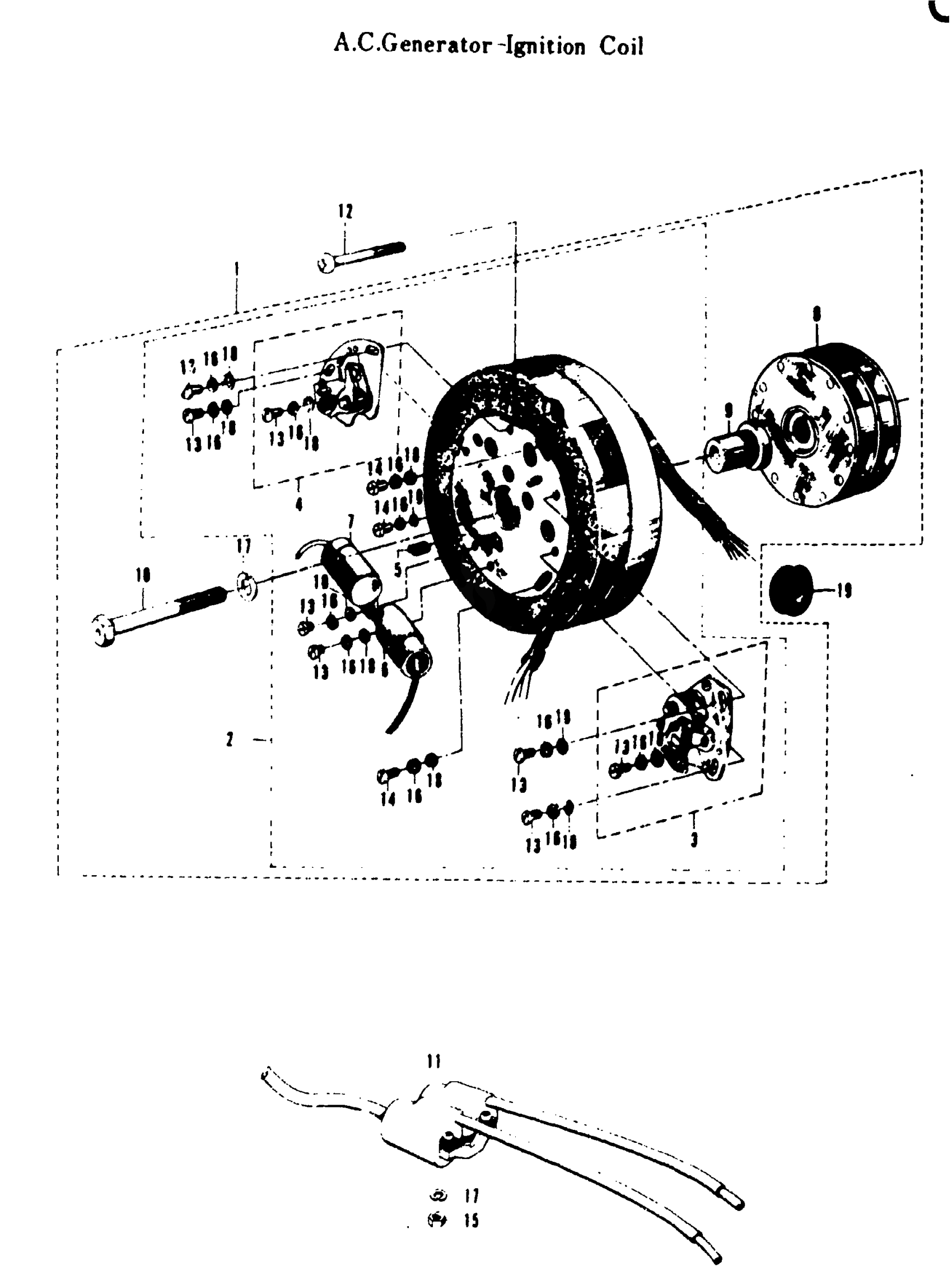

Find the part on the A.C. Generator - Ignition Coil diagram for your 1969 Suzuki T20, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Suzuki T20 A.C. Generator - Ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

A.C.GENERATOR ASS'Y | TC250

31400-11010

—
Out of stock

2

STATOR ASS'Y | TC250

31401-11010

1
Out of stock

3

RIGHT CONTACT POINT ASS'Y | TC250

31440-11010

1
Out of stock

4

LEFT CONTACT POINT ASS'Y | TC250

31460-11010

1
Out of stock

5

OIL FELT | TC250

31638-11011

—
Out of stock

6

RIGHT CONDENSER | TC250

31641-11011

1
Out of stock

7

LEFT CONDENSER | TC250

31642-11011

1
Out of stock

8

ROTOR | TC250

31710-11010

—
Out of stock

9

CONTACT BREAKER CAM | TC250

31724-11010

1
Out of stock

10

ROTOR BOLT | TC250; O.D.=8(0.31).I.=72(2.83)

31791-11010

1
Out of stock

11

IGNITION COIL ASS'Y | TC250

33410-09011

1
Out of stock

12

SCREW (6X40) This part replaces 02112-06408.

02112-06407

3
Out of stock

13

SCREW | ISO This part replaces 02311-04088.

09125-04001

8
Out of stock

13

SLOT HEAD SCREW

02311-04081

—
Out of stock

14

SCREW | ISO This part replaces 02311-04108.

02112-0410A

3
Out of stock

14

SLOT HEAD SCREW

02311-04101

—
Out of stock

15

2

$1.93

In stock

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

11
Out of stock

17

3

$2.28

In stock

18

WASHER This part replaces 08322-21048.

08322-01047

11
Out of stock

19

A.C.GENERATOR WIRING HARNESS B | TC250; I.D.=8(0.31).O.D=22(0.87) W.TC250; I.D.=8(0.31).O.D=22(0.87) W.=9(0.35)

09308-09002

1
Out of stock
