1971 Suzuki T125II Transmission Diagram

← All diagrams

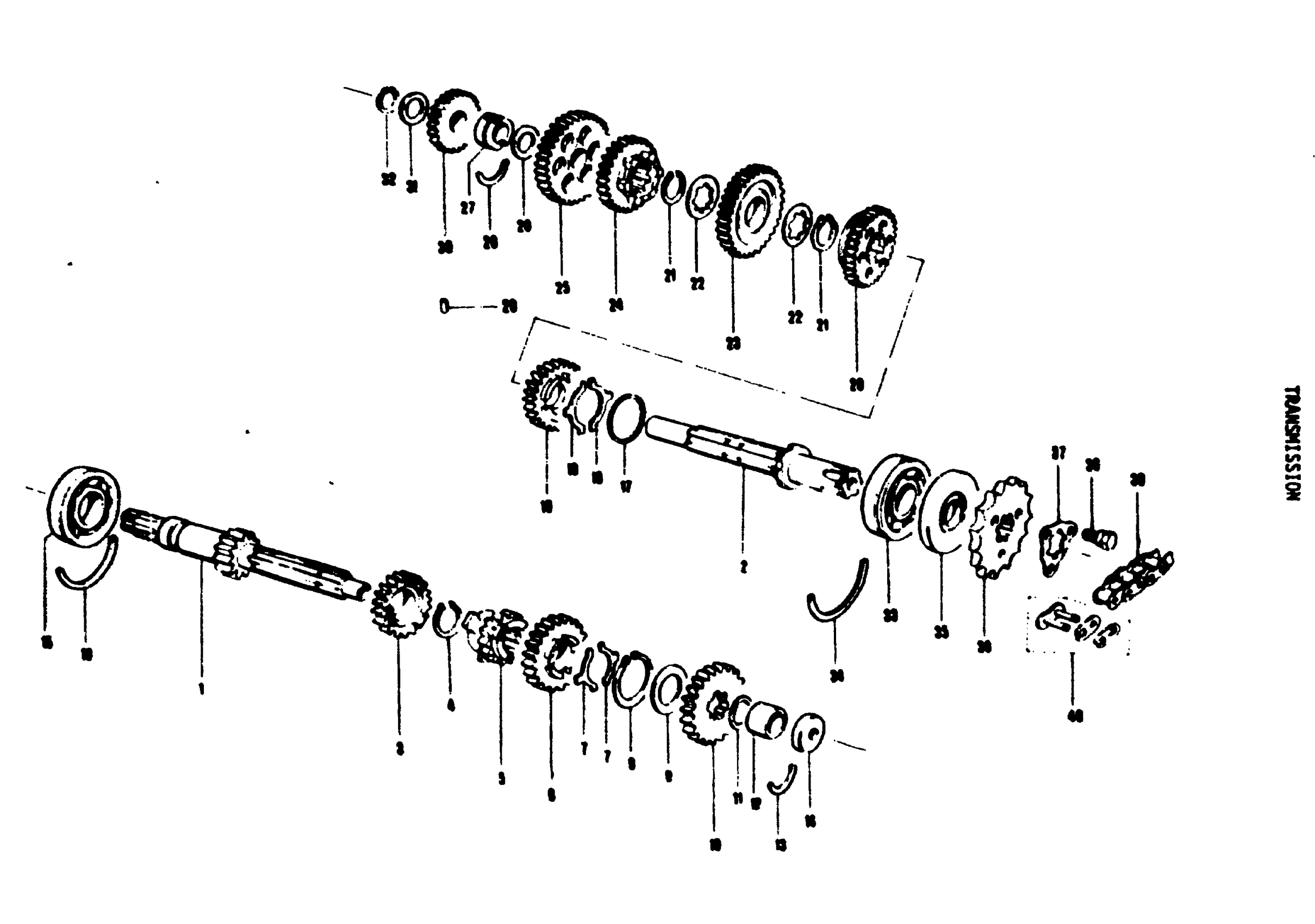

Find the part on the Transmission diagram for your 1971 Suzuki T125II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki T125II Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHART | NT:11

24121-20001

1
Out of stock

2

DRIVE SHAFT

24131-20000

—
Out of stock

3

3RD DRIVE GEAR | NT:18

24231-20000

—
Out of stock

4

3RD DRIVE GEAR CIRCLIP

09380-17001

1
Out of stock

5

2ND DRIVE GEAR | NT:15

24221-20000

1
Out of stock

6

4TH DRIVE GEAR | NT:21

24241-20000

—
Out of stock

7

4TH DRIVE GEAR RING

09399-14001

2
Out of stock

8

4TH DRIVE GEAR CIRCLIP

09380-26001

1
Out of stock

9

WASHER | 17x29x1.5 This part replaces 09160-17003.

08211-17282

1
Out of stock

10

5TH DRIVE GEAR | NT:22

24251-20000

—
Out of stock

11

THRUST WASHER

08211-12241

1

$2.23

In stock

12

COUNTERSHAFT LH BEARING | 12x19x12

09263-12001

1
Out of stock

13

COUNTERSHAFT LH BEARING RING

09390-19001

—
Out of stock

14

OIL SEAL | T125; 6x19x7 This part replaces 09285-06006.

09285-06021

1
Out of stock

14

PUSH ROD OIL SEAL | T125II,T125R; 5x19x7

09285-05006

1
Out of stock

15

COUNTERSHAFT RH BEARING | 20x47x15

09262-20027

1
Out of stock

16

COUNTERSHAFT RH BEARING RING

09390-47001

—
Out of stock

17

5TH DRIVEN GEAR CIRCLIP

09380-38001

1
Out of stock

18

5TH DRIVEN GEAR RING

09399-25001

—
Out of stock

19

5TH DRIVEN GEAR | NT:24

24351-20000

—
Out of stock

20

4TH DRIVEN GEAR | NT:26

24341-20000

—
Out of stock

21

CIRCLIP This part replaces 09380-20003.

09380-20007

2
Out of stock

22

LOCK WASHER, LH This part replaces 09167-20007.

09167-20022

2
Out of stock

23

2ND DRIVEN GEAR | NT:31

24321-20000

—
Out of stock

24

3RD DRIVEN GEAR | NT:28

24331-20000

—
Out of stock

25

1ST DRIVEN GEAR COMPS | NT:35

24310-20001

—
Out of stock

26

SHIM, CAM CHAIN IDLER,T:1.0 This part replaces 08211-15241.

09181-15166

1
Out of stock

27

DRIVE SHAFT BUSHING

09300-15004

—
Out of stock

28

DRIVE SHAFT BUSHING RING

09390-25002

—
Out of stock

29

TRANSMISSION BUSHING DOWEL PIN

04221-04069

1
Out of stock

30

KICK STARTER IDLE GEAR | NT:24

26260-20001

—
Out of stock

31

THRUST WASHER

08221-15246

—
Out of stock

32

CIRCLIP This part replaces 08331-11159.

08331-3115A

1
Out of stock

33

DRIVE SHAFT BUSHING | 20x52x15

09262-20003

1
Out of stock

34

DRIVE SHAFT BEARING RING

09390-52001

1
Out of stock

35

DRIVE SHAFT OIL SEAL | 20x52x7

09283-20015

1
Out of stock

36

ENGINE SPROCKET | NT:16

27511-20710

1
Out of stock

36

SPROCKET,ENGINE | NT:14 OPT This part replaces 27511-20700.

27511-13700

1
Out of stock

36

SPROCKET, ENGINE | NT:15 OPT This part replaces 27511-20000.

27511-27100

1
Out of stock

37

ENGINE SPROCKET PLATO

27512-20000

1
Out of stock

38

ENGINE SPROCKET BOLT | 6SCREW

09111-06007

3
Out of stock

39

DRIVE CHAIN ASS'Y | #428x104; Includes Item(s) 40

27600-20211

—
Out of stock

40

JOINT (RK) | #428 This part replaces 27620-20210.

27620-40220

1
Out of stock
