Description

Price

10

Main Tube Kit | Model With DPS

703501108

$67.66

15

Anodized Handlebar | Package XTP, XXC

709402292

$64.58

20

Pitman Arm | Model With DPS Except XMR

703501160

$41.51

30

Handle Grip

709400493

$14.75

37

End Piece

709400449

$8.29

50

Lower Mounting Clamp

709402750

$27.66

55

Upper Mounting Clamp

709402749

$27.66

60

Socket Head Screw M8 X 60

205086060

$3.38

65

Socket Head Screw M8 X 30, Scotch Grip

205583060

$2.89

70

Hex. Elastic Flange Nut M8

233281416

$1.25

75

Hex. Screw M8 X 30

207183060

$1.30

150

Hex. Flange Screw M8 X 20

207682044

$0.92

155

Hex. Flange Screw M8 X 25

207682544

$0.90

160

Spherical Bushing

709402169

$6.14

165

Spherical Half Bushing

709400783

$6.14

170

Hex. Elastic Flange Nut M8

233281416

$1.25

175

Upper Column Attachment

709400827

$1.00

176

Column Attachment

709401428

$36.12

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$106.12

180a1

LH Ball Joint

709402303

$35.35

180b

RH Ball Joint

709402302

$35.35

200

O-Ring

293300068

$5.29

210

Hardened Washer

706200281

$2.34

220

Hex Nut M12

250100239

$1.64

230

Cotter Pin

211400013

$0.32

240

Handlebar Trim

709402687

$83.05

250

Power Steering Ass'y | Model With DPS

709403187

$1,176.89

260

Power Steering Module Bracket

709402192

$23.05

262

RH Power Steering Support

709402978

$27.66

263

Power Steering Support

709402969

$16.89

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

300a

LH Rearview Mirror

708200963

$36.89

300b

RH Rearview Mirror

708201092

$46.12

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

415

Hex. Elastic Flange Nut M8

233281416

$1.25

420

Hex. Flange Nut

233081436

$1.63

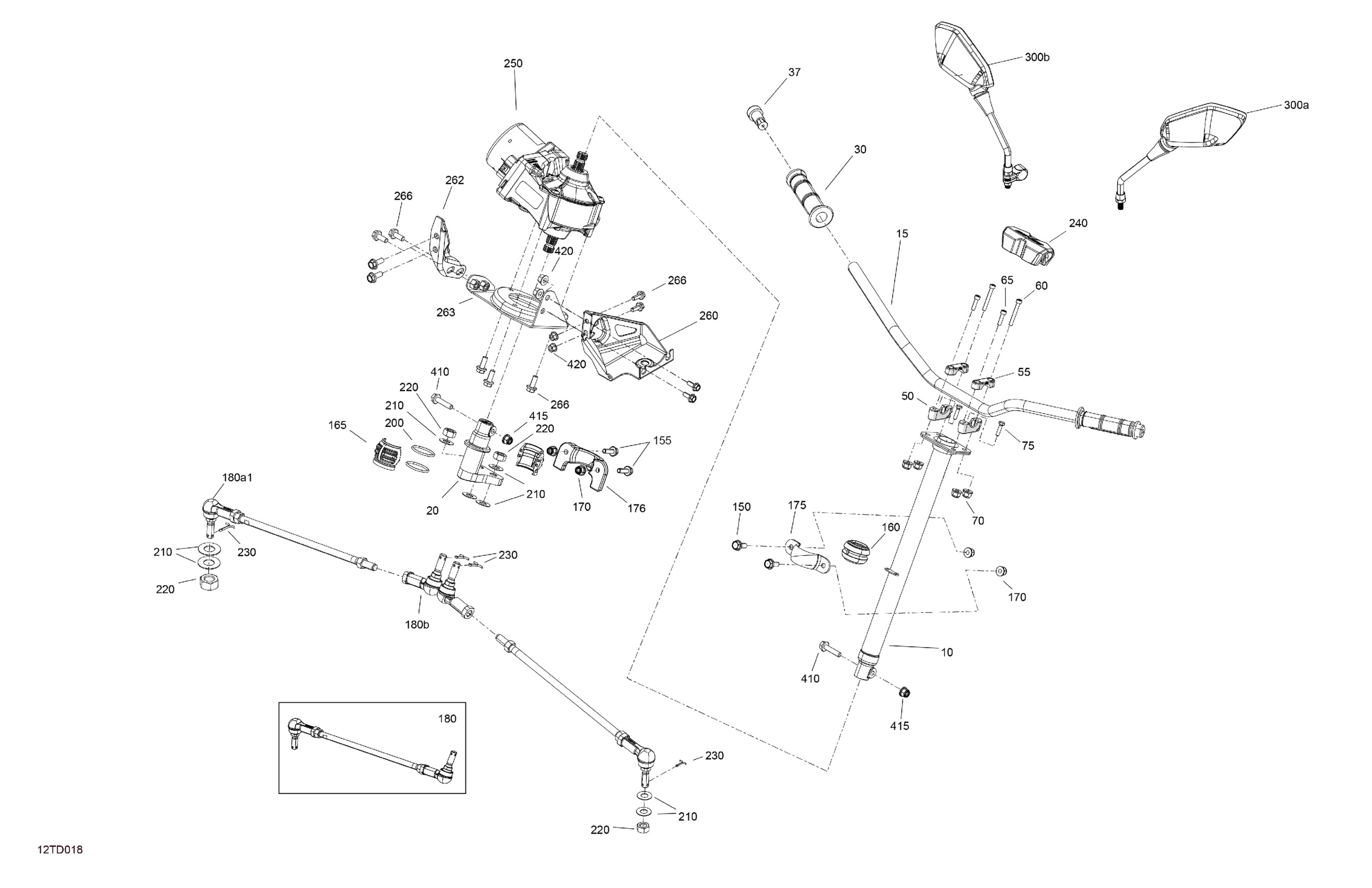

Can-Am Renegade 650 EFI - 5PRA - STD Package - Catalyst Gray, 2024 Mechanic - Steering Diagram
