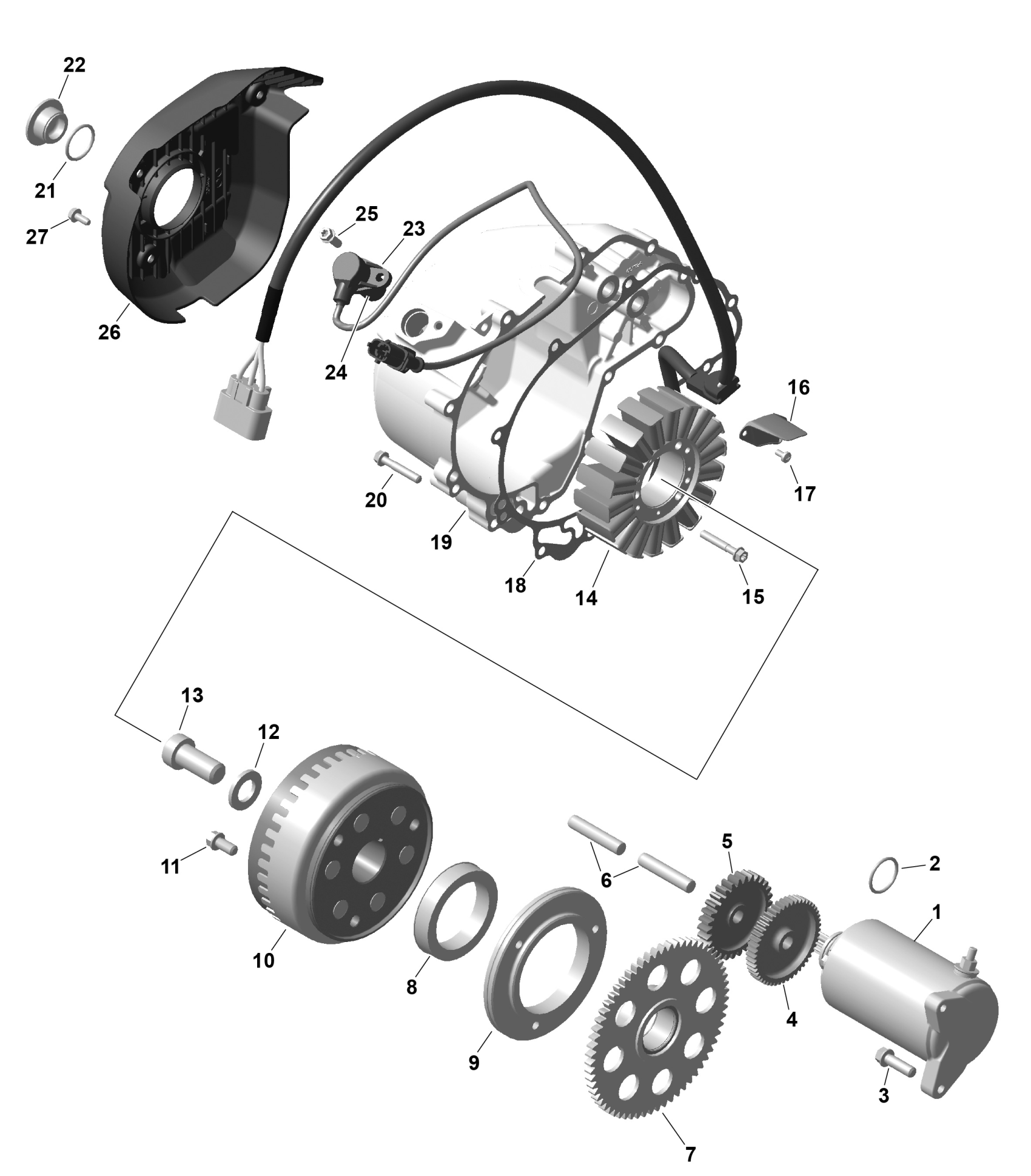

Can-Am RENEGADE - 4X4 - XXC - 1000 EFI - 5MTA - Catalyst Gray - 2026 ROTAX - Magneto and Electric Starter Diagram

Description

Price

Electric starter Ass'y

420684566

$265.99

O-Ring

420250140

$7.05

Torx Flange Screw M8 X 25

420440372

$4.00

Starter Double Gear 11/49 T

420634741

$155.97

Starter Intermediate Gear, 30 Teeth

420634605

$79.20

Location Pin 10 M6x50

420229302

$3.11

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$179.20

Sprag Clutch

420659111

$204.72

Sparg Clutch Housing

420659263

$122.82

Flywheel With Trigger Wheel 650W | With DPS, European Community, T3

420685704

$563.05

Torx Flange Screw M8 X 16

420440854

$3.61

Shim

420627270

$3.38

Socket Head Screw M16 X 35

420241549

$7.05

Stator Plate | With DPS

420685922

$296.99

Torx Flange Screw M6 X 30

420440647

$1.97

Interior Cable Support Ass'y

420251889

$13.83

Phillips Screw M4 X 8

420240196

Unavailable

Gasket

420651203

$35.35

Ignition Cover

420212227

$183.05

Torx Flange Screw M6 X 35

420440274

$0.83

O-Ring

420430782

$4.41

Plug Screw M24X 1.5

420241633

$7.23

Camshft Position Sensor Ass'y

420265727

$108.89

O-Ring

420431580

$12.29

Torx Flange Screw M6 X 16

420440162

$3.11

Cover

420201390

$36.89

TAPTITE SCREW M5 X 12

420941937

$12.68
