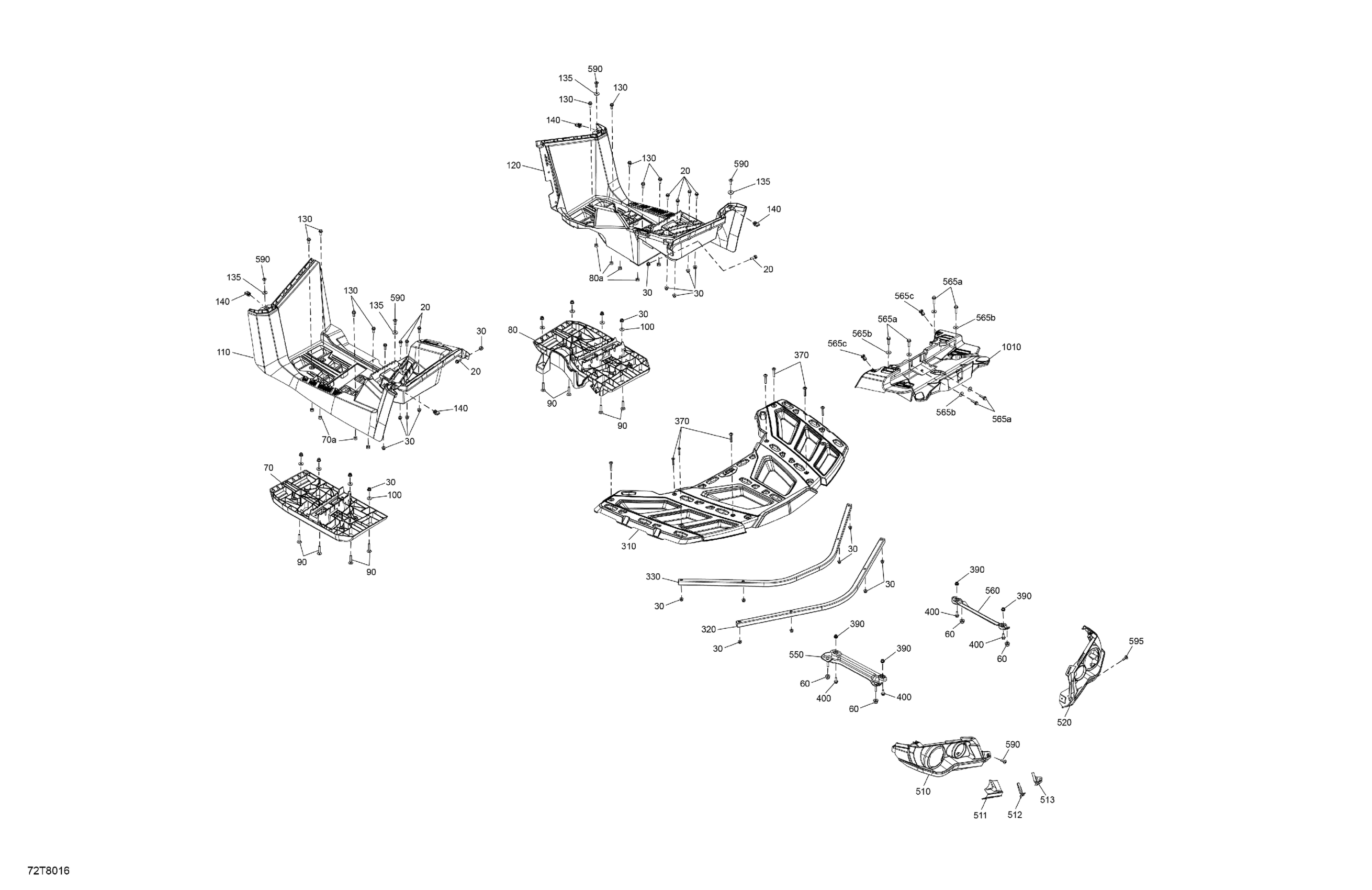

Can-Am OUTLANDER PRO - 4X4 - 650 EFI - 3TJA - Brushed Aluminium, 2018 Body - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$0.83

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M8

233281434

$1.74

LH Structural Footboard

705011540

$108.18

70a

Square Nut M6

232862412

$1.18

RH Structural Footboard

705011542

$95.49

80a

Square Nut M6

232862412

$1.18

Carriage Bolt M6 X 35

207763554

$1.70

100

Flat Washer 6 mm

234062410

$0.64

110

LH Footrest Max

705003525

$117.88

120

RH Footrest Max

705003521

$117.88

130

Hex. Flange Screw M6 X 16

207661654

$1.74

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

310

Rack Kit | Europe, Int'l

715002784

$172.36

320

Sectional Bent Tube

705016640

$34.30

330

Sectional Bent Tube

705016641

$38.03

370

Black, Torx Screw M6 X 35

250000646

$0.78

390

Insert Half Hex Body M6 x 1.0

250100199

$2.54

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

510

LH Rear Facia | Europe

705006651

$14.27

511

Heat Shield

707002103

$8.66

512

Heat Shield

707002107

$1.91

513

Heat Shield

707002293

$8.66

520

RH Rear Facia | Europe

705006652

$14.27

550

LH Support

705007277

$27.58

560

RH Support

705007278

$27.58

565a

Hex Flange Screw M6 X 25

250000841

$6.15

565b

Stainless Steel Flat Washer

234062670

$1.74

565c

Tuflok Plastic Rivet

293150230

$1.21

590

Torx Screw M6 X 20

250000722

$1.34

595

Hex. Flange Screw M6 X 16

207661654

$1.74

1010

Seat Holder

705007948

$52.21
