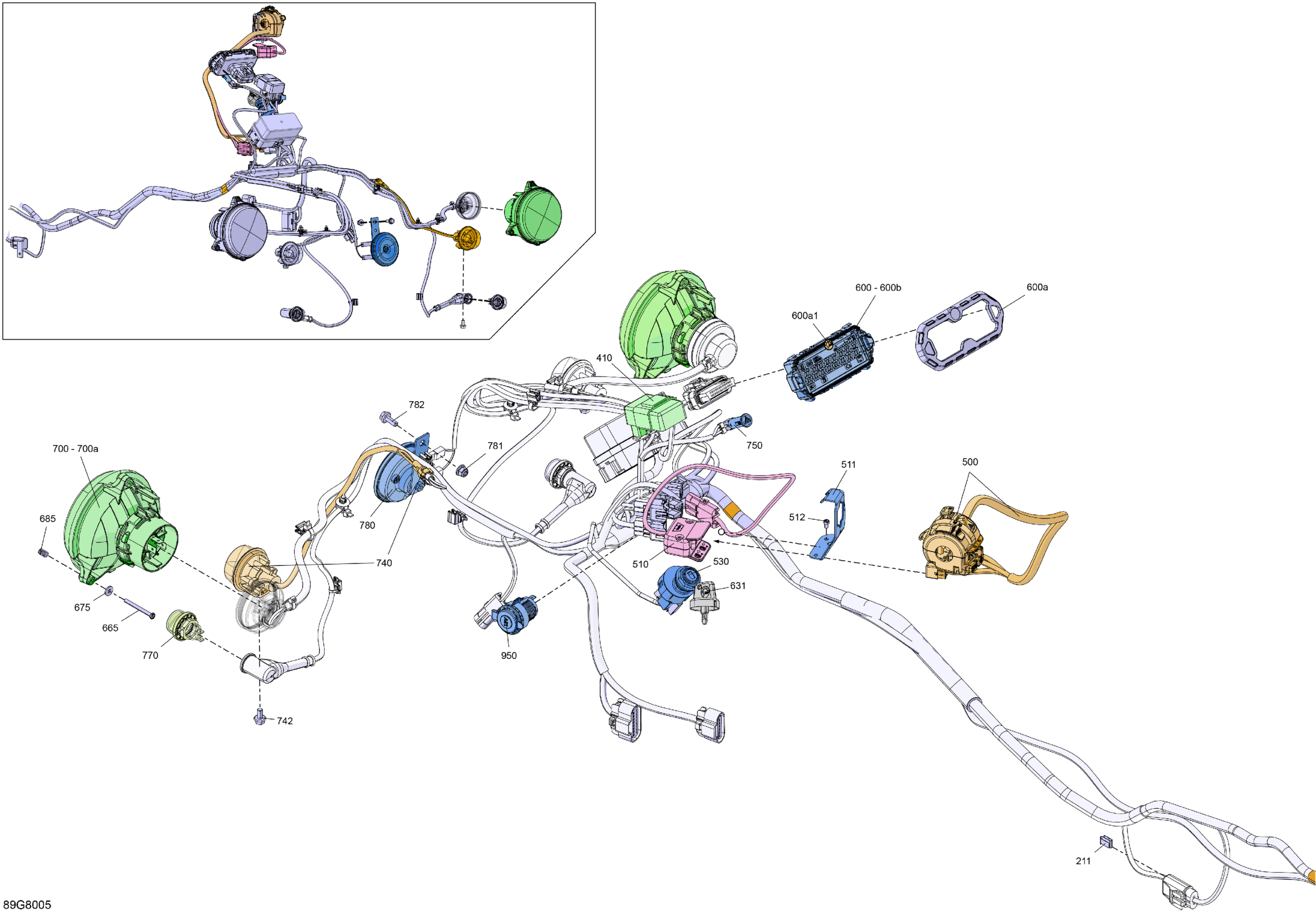

Can-Am OUTLANDER PRO - 4X4 - 450 EFI - 3NJC - Squadron Green, 2018 Electric - Front Section Diagram

Description

Price

211

Clip

710000992

$4.00

410

Flasher Unit

710003239

$78.43

500

Multi-Function Handle

710004040

$166.12

510

Winch Switch

710005241

$161.51

511

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.14

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

530

Switch_Ignition | Model-Europe

710007865

$69.20

600

Speedometer | Includes 600 to 600b

710005553

$323.05

600a

Trim Ring Ass'y

710001183

$18.43

600a1

BRP Logo 13 MM

516010651

$9.66

600b

Button

715900265

$12.68

631

Grey, Electronic Key

710002183

$55.35

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

740

Flasher | Europe

710002964

$35.14

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

750

Pilot Lamp | Model-Europe

710003909

$23.05

770

Day Light | Europe

710001726

$36.89

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 16

207661644

$0.61

950

DC Outlet

710001248

$31.17
