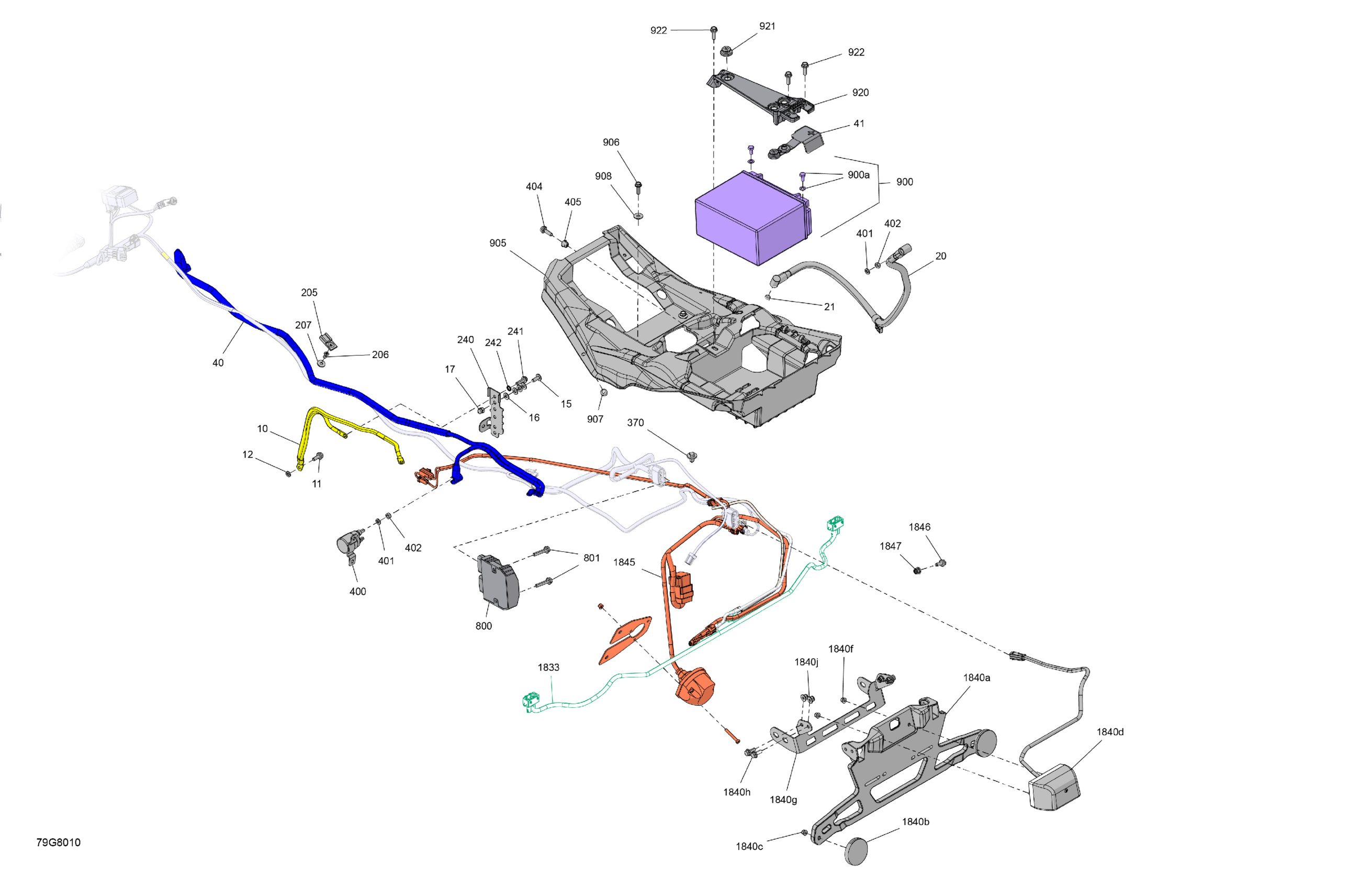

Can-Am OUTLANDER MAX - 4X4 - XT - 570 EFI - 2GJE - Pur Magnesium, 2018 Electric - Rear Section Diagram

#

Description
Price

10

Ground Cable

710004382

$17.88

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

15

Torx Head Screw M6 X 16

250000717

$1.74

16

Flat Washer

224061121

$0.44

17

Domed Nut M6

232361493

$1.77

20

Positive Cable

710004377

$24.60

21

Elastic Stop Nut M6

232561414

$1.78

40

Connector Ass'y

710004375

$30.57

41

Battery Cable Cap

710006729

$6.72

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

240

Connector Bracket

710004118

$5.04

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$0.92

370

Mount Dart

293730040

$0.86

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561414

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$85.77

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

908

Stainless Steel Flat Washer

234062670

$1.74

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

1833

Rear Light Harness

515178093

Unavailable

1840a

Plate Support | Europe

708300434

$24.60

1840b

Red Reflector

705011221

$11.96

1840c

Hex. Flange Elastic Nut M5

233251414

$1.66

1840d

License Plate Light | Europe

710005563

$117.88

1840f

Hex. Flange Elastic Nut M5

233251414

$1.66

1840g

License Plate Support

710009520

$10.37

1840h

Hex. Flange Screw M6 X 16

207661644

$0.61

1840j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1845

Trailer Plug Ass'y | Includes 13 To 19

860200927

Unavailable

1846

Hex. Flange Screw M6 X 16

207661644

$0.61

1847

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
