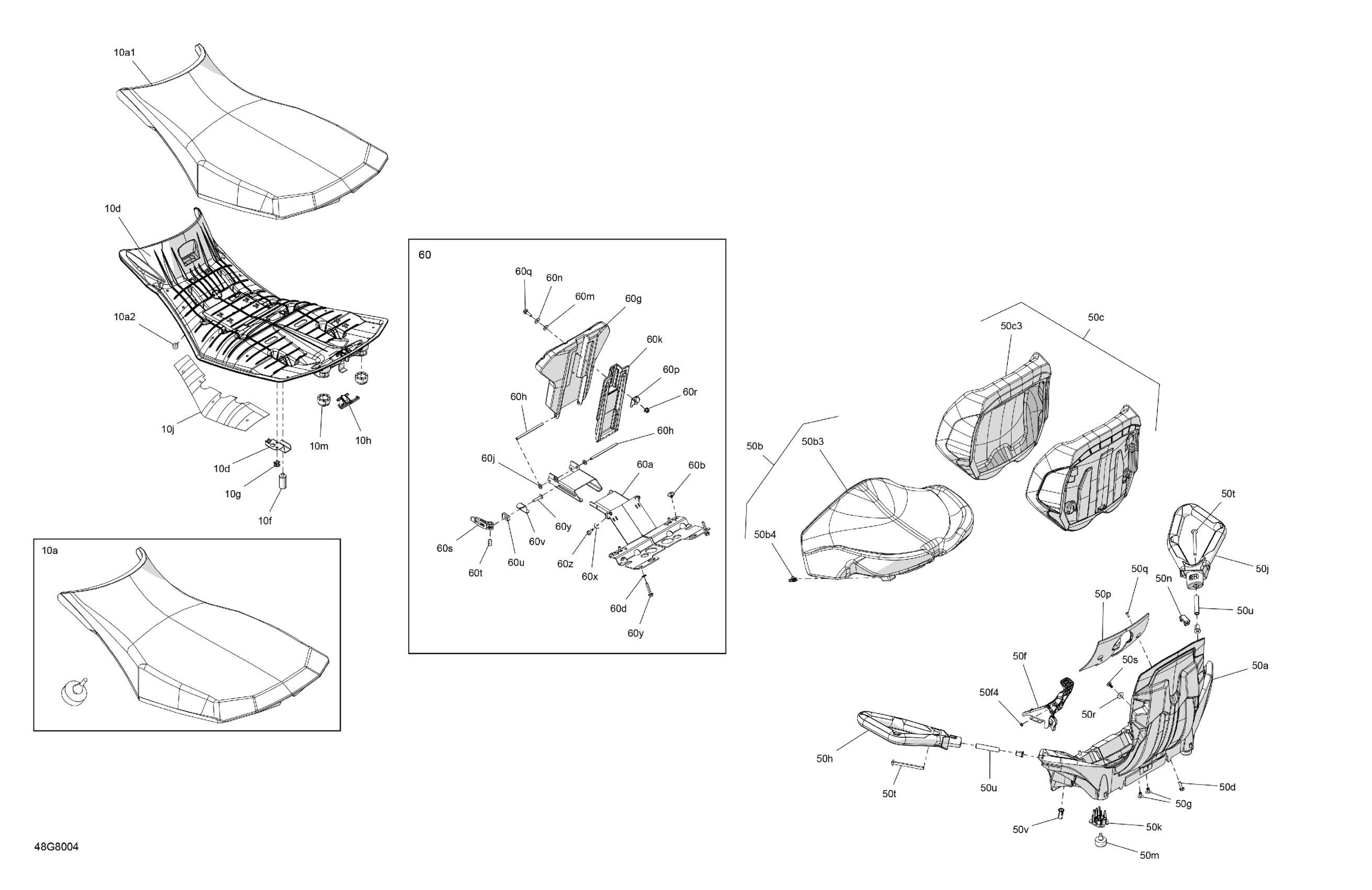

Can-Am OUTLANDER MAX - 4X4 - XT - 570 EFI - 2GJE - Pur Magnesium, 2018 Body - Seat Diagram

#

Description
Price

10a

Seat Ass'y | Model-T3

708002208

Unavailable

10a1

Seat Cover | Model T3

605156558

Unavailable

10a2

Rubber Stopper

708000759

$3.61

10d

Support Rear Cushion

510005988

Unavailable

10f

RUBBER DAMPER - Call your local BRP dealership | Model-T3

605456546

Unavailable

10g

Rivet | Model-T3

293150067

$2.29

10h

Latch

708000909

$5.89

10j

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

10m

Bumper Rubber

708000760

$9.11

50a

Seat Base

708002574

$235.35

50b

Rear Seat | MAX Model

708002088

$216.89

50b3

Black, Seat Cover

708001290

$143.05

50b4

Panel Nut M6 X 1.0

250100198

$1.73

50c

Back Rest

708002085

$489.20

50c3

Back Rest Cover

708001841

$115.35

50d

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

50f

Latch

708001532

$64.58

50f4

Flat Washer M5

234051410

$0.44

50g

Pop Rivet 3/16”

293150108

$1.23

50h

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$64.58

50j

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$64.58

50k

Seat Support

708001483

$2.98

50m

Rubber Stopper

708000758

$9.37

50n

Insert

708001511

$3.85

50p

Cap

708001512

$12.68

50q

Torx Truss Screw K40 X 12

250000577

$1.74

50r

Flat Washer

224060201

$1.15

50s

Oval Head Torx Screw K60 X 16

250000546

$1.74

50t

Torx Truss M8 X 90

250000806

$6.15

50u

Sleeve

705009248

$14.75

50v

Pilot Lamp Cap

710003910

$3.85

60

T3 Backrest Ass'y | Includes 60 to 60z

708002501

Unavailable

60a

Support

708001796

Unavailable

60b

Plug

605452114

$8.60

60d

Push Nut

732610072

$1.72

60g

Backrest | Model-T3

708001794

Unavailable

60h

Pin

605456662

Unavailable

60j

Safety Washer

36084

$1.55

60k

Sliding Cover

708001798

Unavailable

60m

Rubber Washer 5 mm

250200024

$1.77

60n

Washer

20117

$5.22

60p

Sliding Guide

708001799

Unavailable

60q

Hex. Flange Screw M6 X 20

207662054

$0.83

60r

Hex. Flange Elastic Nut M6

233261494

$1.26

60s

LEVER - Call your local BRP dealership

506152646

Unavailable

60t

Lever Pin

506152647

Unavailable

60u

Compression Block

506152706

Unavailable

60v

Lever Guide

708301660

Unavailable

60x

Washer M5

250200025

$0.61

60y

Stainless Torx Screw M6 X 30

250000634

$1.92

60z

Hex. Flange Screw M5 X 25

207652544

$0.42
