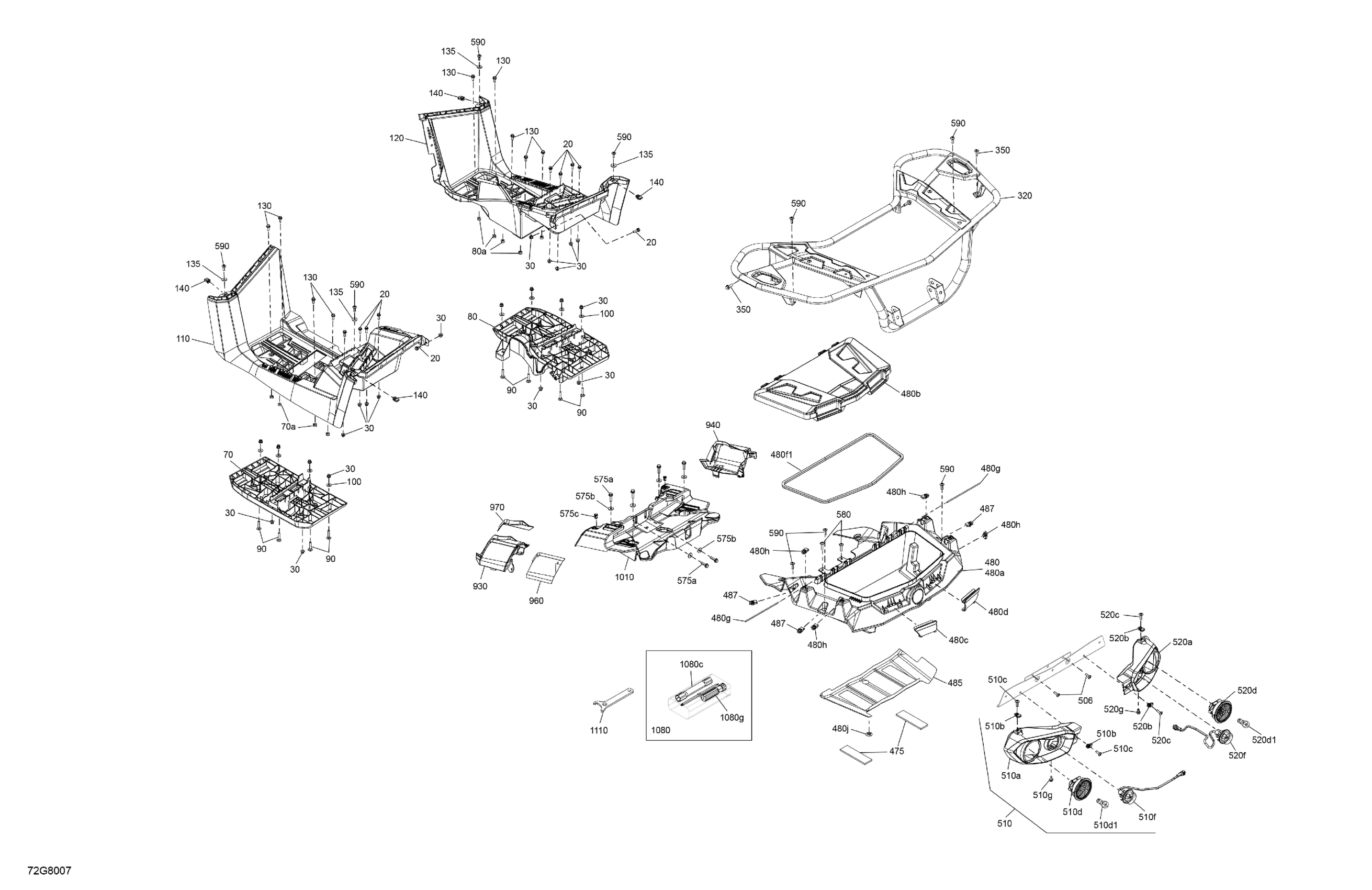

Can-Am OUTLANDER MAX - 4X4 - XT - 570 EFI - 2GJE - Pur Magnesium, 2018 Body - Rear Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.83

30

Flange Elastic Nut M6

233261434

$3.61

70

LH Structural Footboard

705011540

$108.18

70a

Square Nut M6

232862412

$1.18

80

RH Structural Footboard

705011542

$95.49

80a

Square Nut M6

232862412

$1.18

90

Carriage Bolt M6 X 35

207763554

$1.70

100

Flat Washer 6 mm

234062410

$0.64

110

LH Footrest Max

705003525

$117.88

120

RH Footrest Max

705003521

$117.88

130

Hex. Flange Screw M6 X 16

207661654

$1.74

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

320

Rear Luggage Rack Ass'y | Except Model North America

715005988

$254.45

350

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

475

Rubber Pad

293830163

$7.81

480

Storage Cover | Model-Europe International

715004412

$196.99

480a

Storage Cover | Model-Europe International

715004412

$196.99

480b

Storage Cover | Model-Europe International

715004412

$196.99

480c

LH Box Rear Latch

705007448

$9.91

480d

RH Box Rear Latch

705007921

$9.85

480f1

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$34.30

480g

Retaining Rod

705007531

$70.87

480h

Panel Nut M6 X 1.0

250100198

$1.73

480j

CAP - Call your local BRP dealership

414859400

Unavailable

485

Heat Deflector Sheet

705007487

$3.81

487

Panel Nut M6 X 1.0

250100198

$1.73

506

Torx Screw M6 X 20

250000722

$1.34

510

LH Rear Light Support Ass'y | Includes 510 to 510g

705011495

Unavailable

510a

LH Support

705010329

Unavailable

510b

Panel Nut M6 X 1.0

250100198

$1.73

510c

Torx Screw M6 X 20

250000722

$1.34

510d

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

510d1

Bulb

520000758

$7.49

510f

Flasher | Europe

710002964

$34.30

510g

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

520a

RH Support

705010330

Unavailable

520b

Panel Nut M6 X 1.0

250100198

$1.73

520c

Torx Screw M6 X 20

250000722

$1.34

520d

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

520d1

Bulb

520000758

$7.49

520f

Flasher | Europe

710002964

$34.30

520g

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

575a

Hex Flange Screw M6 X 25

250000841

$6.15

575b

Stainless Steel Flat Washer

234062670

$1.74

575c

Tuflok Plastic Rivet

293150230

$1.21

580

Torx Truss Screw M6 X 25

250000807

$1.74

590

Torx Screw M6 X 20

250000722

$1.34

930

LH Extension Panel

715001897

$24.60

940

RH Extension Panel

705004348

$23.85

960

Heat Shield

705006870

$4.76

970

Heat Shield

705006871

$4.76

1010

Seat Holder

705007948

$52.21

1080

Tool Kit

704700168

$40.99

1080c

Socket Wrench 14/16MM

529000085

$6.55

1080g

Screw Driver

529000021

$3.19

1110

Adjustment Wrench

529000035

$2.19
