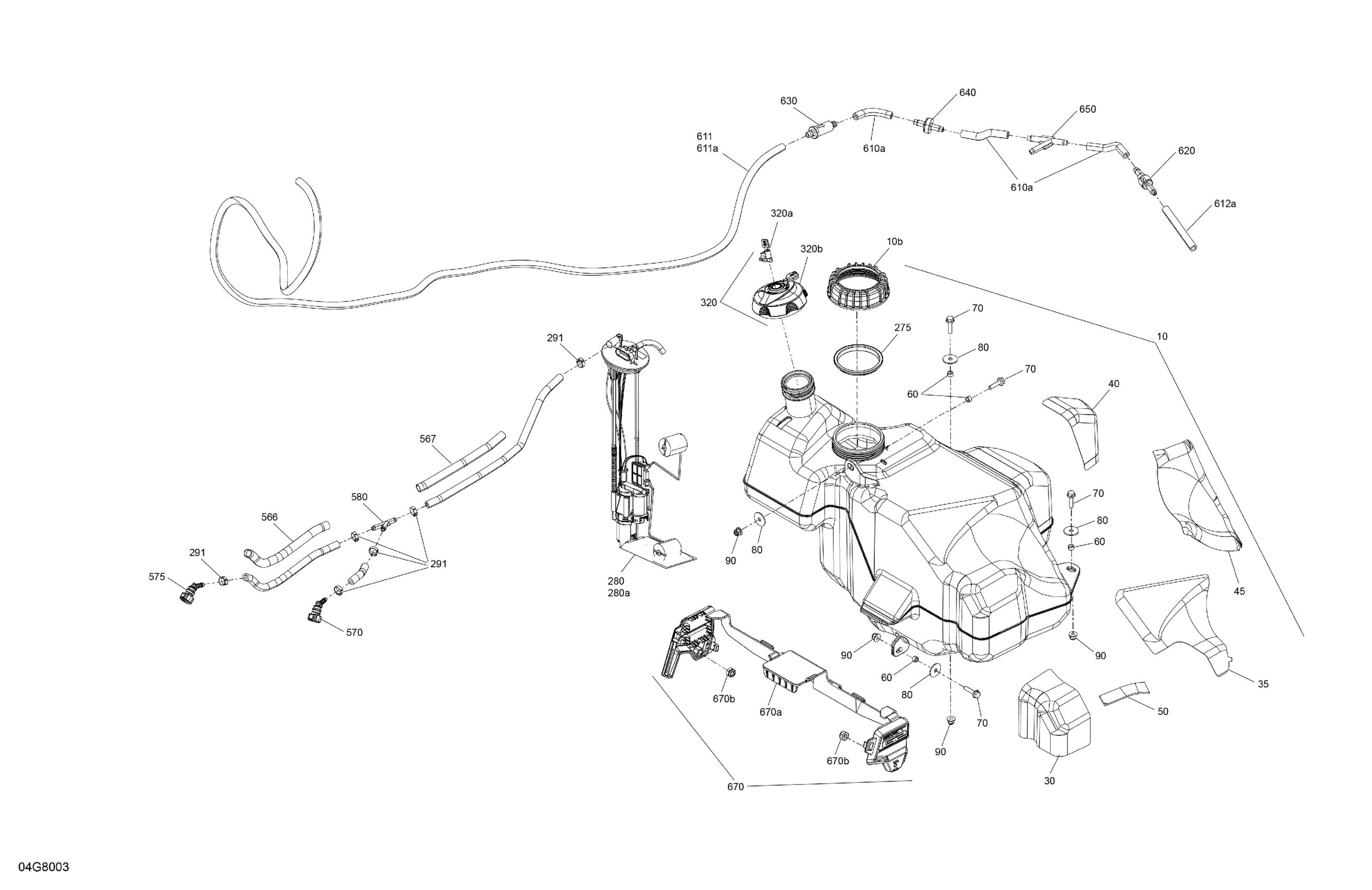

Can-Am OUTLANDER MAX - 4X4 - XT - 570 EFI - 2GJE - Pur Magnesium, 2018 Engine - Fuel Diagram

Fuel Tank Ass'y | Includes 10 to 10b

709000843

$236.54

Fuel Pump Module Nut

709000328

$12.43

Heat Reflective Sheet

709000381

$5.18

Heat Reflective Sheet

709000387

$3.81

Heat Reflective Sheet

709001071

$8.48

Heat Reflective Sheet

709000388

$4.76

Rubber Pad

293830172

$2.13

Bushing | DS 650 X

293900104

$5.10

Hex. Flange Screw M6 X 25

207662544

$0.53

Washer

224060251

$0.55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Seal

709000208

$12.16

Fuel Pump

709000461

$323.94

Prefilter Fuel Pump Kit 125mm Long | Not shown

715900677

$73.85

Crimp Clamp, 15.3-706R

293650047

$2.64

Lock Device Kit | Europe Model

707001750

$63.40

Padlock with Key

707000666

$23.10

Fuel Tank Cap | Europe

709000267

$55.19

Tubing 16 Mm 1000Mm Long

219704408

$6.23

Tubing 16 Mm 1000Mm Long

219704408

$6.23

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$12.61

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$12.61

Y-Fitting, 5/16''

293710136

$5.76

Polyurethane Hose

293830193

Unavailable

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

Polyurethane Hose

293830193

Unavailable

Polyurethane Hose

293830193

Unavailable

Check Valve

513033469

$25.32

Filter

709000330

$7.48

Check Valve

275500398

$8.57

Y-Fitting

293710059

$8.19

Hose Support Ass'y

709000359

$13.39

Hose Support Ass'y

709000359

$13.39

Hex. Elastic Stop Nut M6

232561600

$0.92
