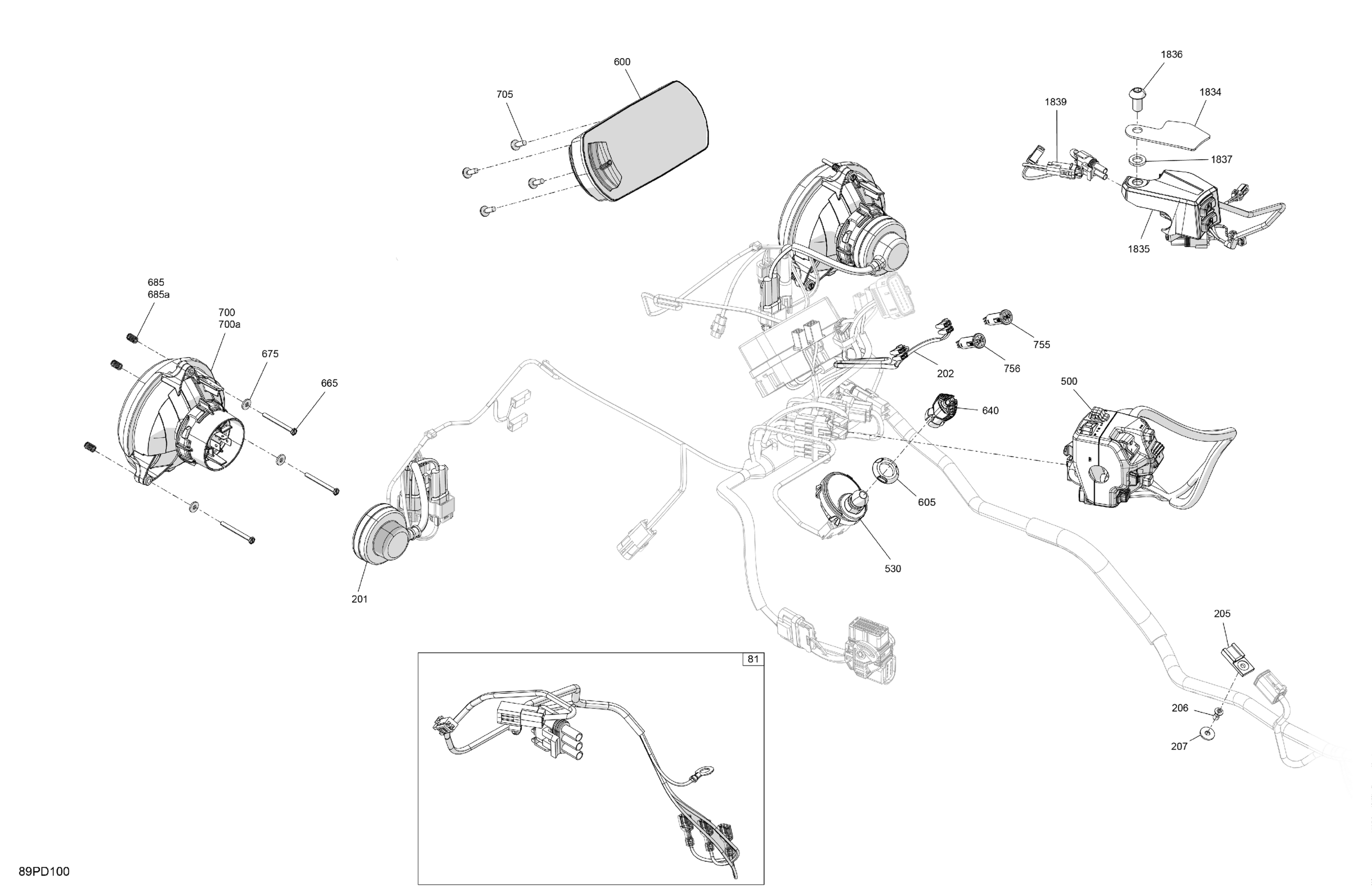

Can-Am Outlander MAX 450 EFI 6X6 - 5ERA - XU+ Package - Tundra Green, 2024 Electric - Front Section Diagram

Description

Price

Winch Wiring Harness

710008412

$40.27

201

Light Cable

710005780

$19.37

202

Tell Tale Wiring Harness

710007825

$22.36

205

Clip

270000141

$8.33

206

Pop Rivet 3/16 X ,551

293150301

$0.64

207

Washer | DS 650 X

391301600

$0.46

500

LH Front Switch Housing

710006672

$228.33

530

Terminal DESS One Wire

515179305

$60.42

600

Multifunction Compact Gauge

710008298

$347.73

605

Specialized Nut

278004274

$2.72

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.16

685

Spring

517168600

$6.70

685a

Spring

517168600

$6.70

700

Low Beam

710003900

$101.46

700a

Bulb, 12V 35/35W

710000871

$32.06

705

Torx Screw K50 X 16

250000720

$1.39

755

Pilot Light Trailer Flasher

710005766

$7.64

756

Pilot Light Tail Lamp

710005767

$7.64

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73

1838

Housing Switch Support

710009590

$32.81

1839

Cable

710004567

$12.60
