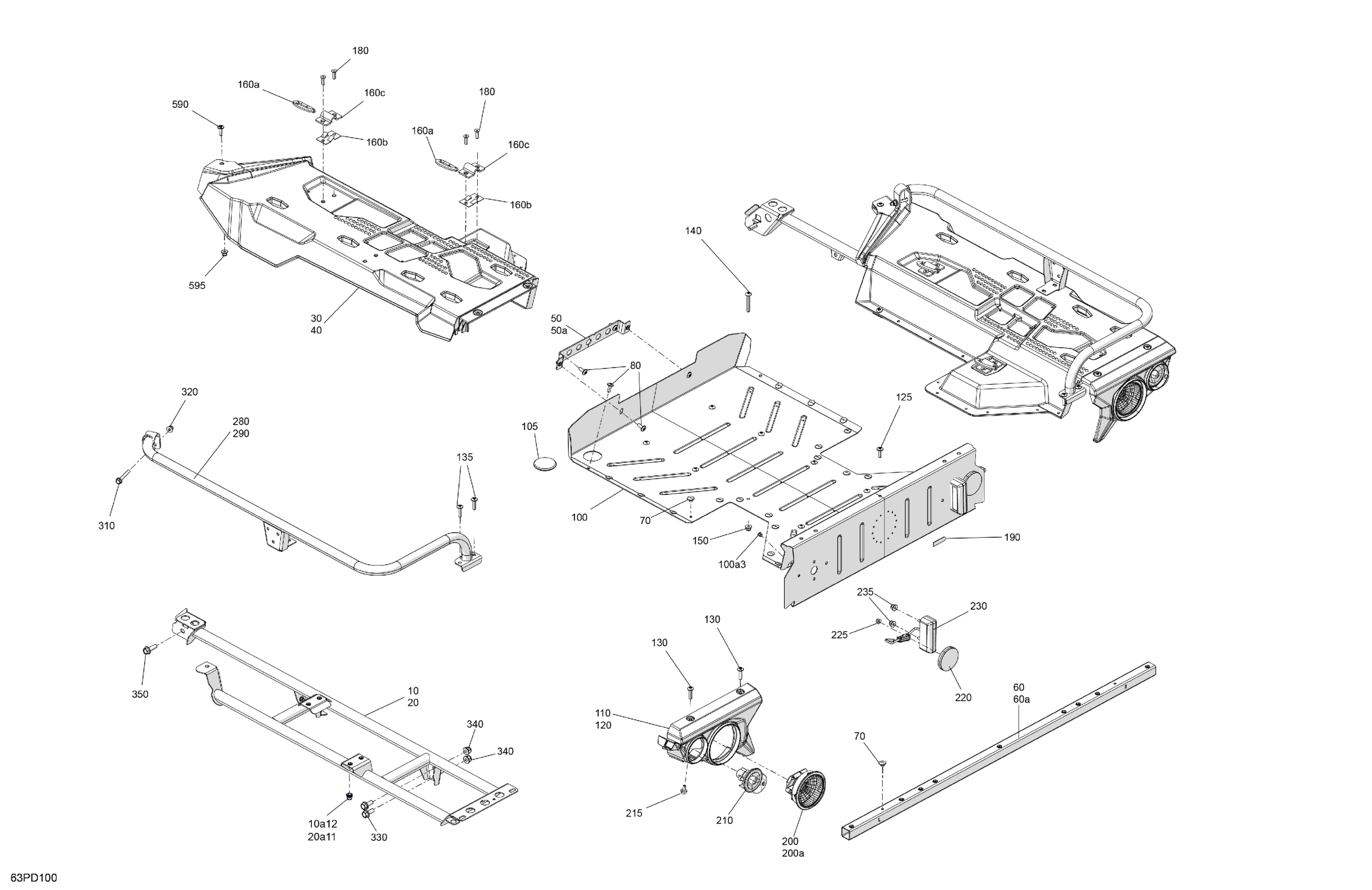

Can-Am Outlander MAX 450 EFI 6X6 - 5ERA - XU+ Package - Tundra Green, 2024 Body - Cargo Diagram

#

Description
Price

10

RH Fender Support | Includes 1000 to 1000a

708302667

$251.46

10a12

Clinch Nut M6 Hexsert

605636003

$4.00

20

LH Fender Support | Includes 1010 to 1010a

708302668

$251.46

20a11

Clinch Nut M6 Hexsert

605636003

$4.00

30

RH Cargo Fender

708302687

$184.30

40

CARGO FENDER LH - Call your local BRP dealership

708302688

Unavailable

50

Fastening Plate | Includes 1040 to 1040a

708302628

$30.57

50a

Clinch Nut M6 Hexsert

605636003

$4.00

60

Rear Support Tube | Includes 1050 to 1050a

708302619

$50.72

60a

Clinch Nut M6 Hexsert

605636003

$4.00

70

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

80

Torx Head Screw M6 X 16

250000717

$1.74

100

Middle Area | Includes 100 to 100a.c

705206831

Unavailable

100a3

Avex Rivet

390909200

$0.25

105

Black, Wheel Cap

503192771

$2.21

110

RH Light Cover

708302734

$11.51

120

LH Light Cover

708302735

$11.51

125

Torx Screw M6 X 20

250000722

$1.34

130

Torx Truss Screw M6 X 25

250000807

$1.74

135

Torx Truss Screw M6 X 25

250000807

$1.74

140

Torx Screw M6 X 45

250000748

$1.56

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

160a

D-Ring

708302990

$4.15

160b

Tie-Down Ring Spring

708302991

$2.39

160c

Tie-Down Ring Bracket

708302992

$2.39

180

Socket Screw HD.CTSK.DIN.7991 | not shown

205362096

$13.21

190

BRP Logo 68 mm

219902672

$9.93

200

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

200a

Bulb

520000758

$7.49

210

Flasher | Europe

710002964

$34.30

215

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

220

Red, Reflector

705016982

$11.96

225

Flange Elastic Nut M5

233251434

$1.66

230

Light | Includes 220j to 220j1

710008467

$59.67

235

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

280

LH Side Rail

708302788

$58.93

290

RH Side Rail

708302789

$58.93

310

Hex. Flange Screw

207664554

$1.73

320

Hex. Flange Elastic Nut M6

233261466

$1.66

330

Hex. Flange Screw M8 X 20

207682046

$1.76

340

Hex. Elastic Flange Nut M8

233281416

$1.25

350

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

590

Torx Screw M6 X 20

250000722

$1.34

595

Hex. Flange Elastic Nut M6

233261494

$1.26
