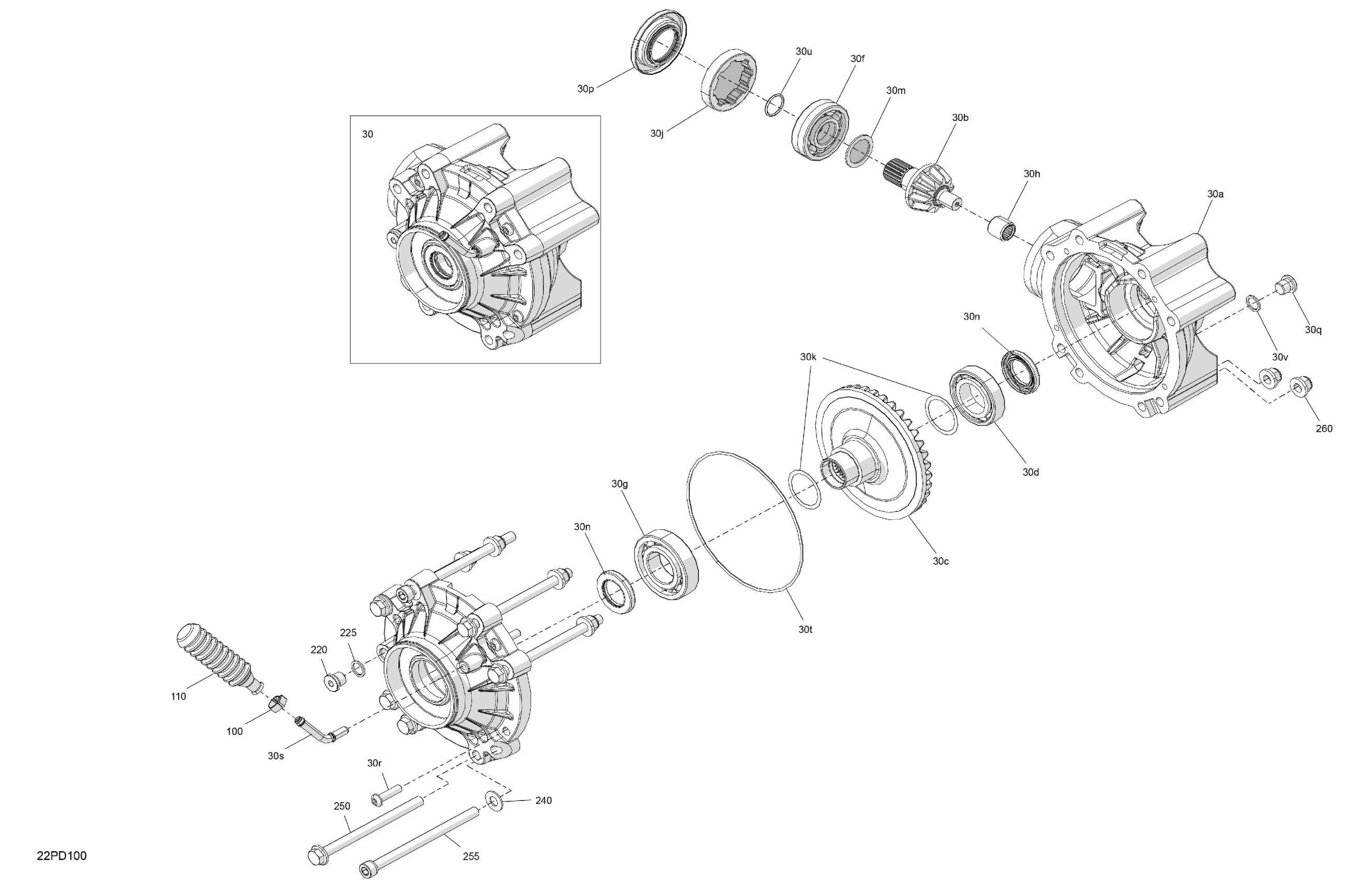

Can-Am Outlander MAX 450 EFI 6X6 - 5ERA - XU+ Package - Tundra Green, 2024 Drive - Final Drive Unit Diagram

Description

Price

Rear Drive Unit Ass'y | Includes 1000 to 1000u

705502370

$862.66

30a

Rear Cover

705502389

$165.64

30b

Pinion 10 Teeth

705502823

$194.75

30c

Gear 36 Teeth

705502822

$364.15

30d

Ball Bearing

705502736

$29.82

30f

Ball Bearing

705502737

$44.75

30g

Ball Bearing

705502738

$55.19

30h

Needle Bearing

705502058

$46.24

30j

Nut | 4X4

705401603

$33.55

30k

Differential Shim 0.02 mm

705502060

$12.64

30m

Pinion Gear Shim 1.67 mm

705502061

$15.64

30n

Oil Seal

705501996

$20.12

30p

Oil Seal

705402405

$25.34

30q

Fill Level Plug | 4X4

705500504

$7.61

30r

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

30s

Breather Tube

705501584

$13.45

30t

Seal

705502064

$8.06

30u

O-Ring

705502065

$5.94

30v

Copper Washer | 4X4

705500506

$0.36

100

Oetiker Clamp

293650042

$1.40

110

Rubber Bellow | 4X4

705400552

$5.84

220

Fill Level Plug | 4X4

705500504

$7.61

225

Copper Washer | 4X4

705500506

$0.36

240

Washer

506152582

$4.28

250

Hex. Flange Screw M10 X 135

250001041

$4.46

255

Screw Socket HD M10 X 140

250001094

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

$1.74
