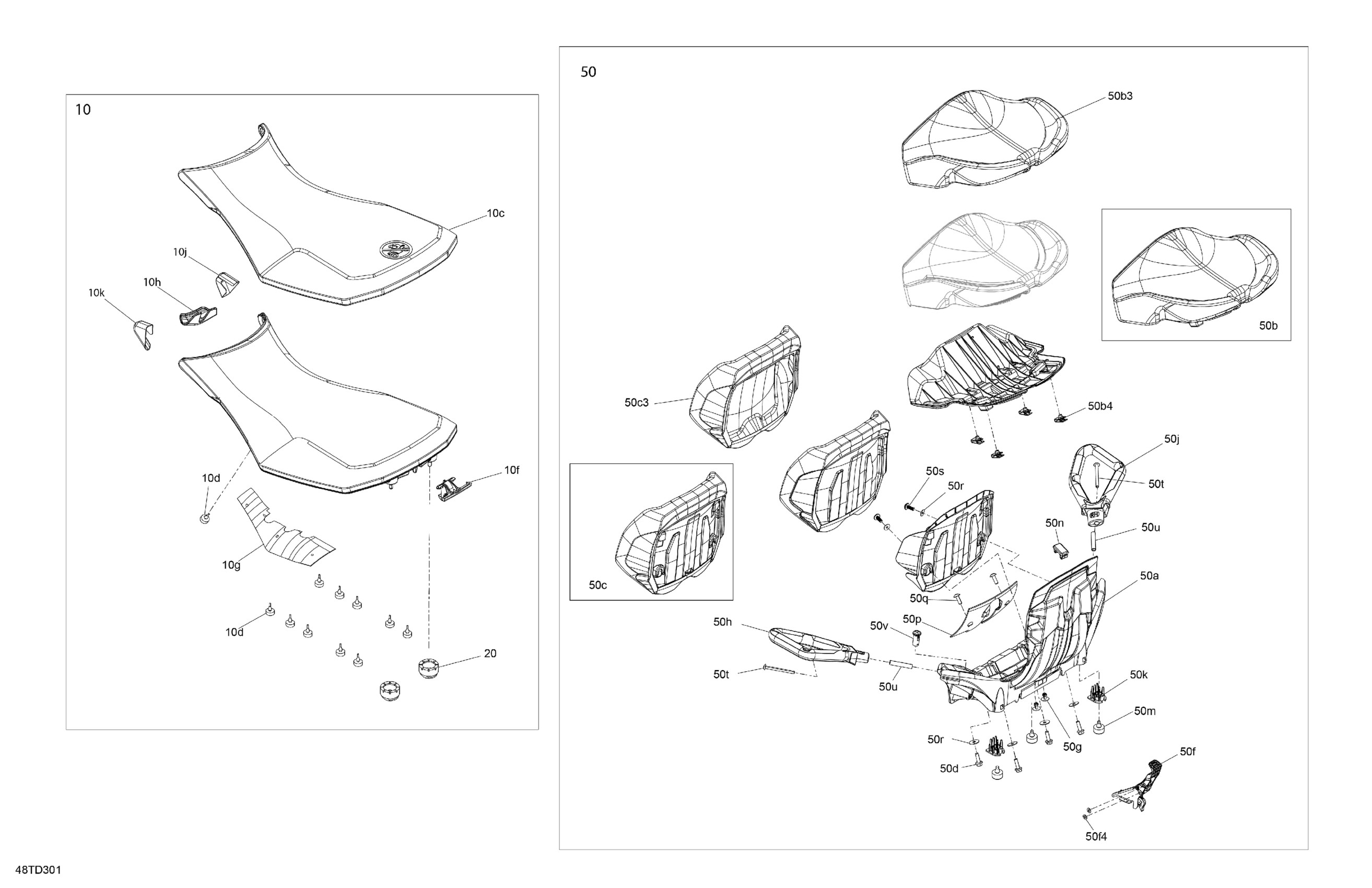

Can-Am Outlander MAX 1000 EFI 4X4 - 3URA - XU+ Package - Platinum Silver Satin, 2024 Body - Seat Diagram

Description

Price

Seat Ass'y | Package PRO

708002493

$415.35

10c

Seat Cover | OUT-MAX Black

708001972

$175.35

10d

Rubber Stopper

708000759

$3.61

10f

Latch

708000909

$5.89

10g

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

10h

Center Seat Corner | Model Pro

708002077

$10.98

10j

RH Seat Corner | Model Pro

269001669

$13.83

10k

LH Seat Corner | Model Pro

269001670

$13.83

Seat Stopper

708003609

$9.11

Passenger Seat Ass'y | Includes 50 to 50v

708003483

$729.97

50a

Seat Base

708002574

$235.35

50b

Seat | Model-OUT-MAX XTP

708002086

$221.51

50b3

Passenger Seat Cover | Model-OUT-MAX XTP

708001581

$143.05

50b4

Panel Nut M6 X 1.0

250100198

$1.73

50c

Backrest | Model-OUT-MAX XTP

708002081

$489.20

50c3

Back Rest Cover

708001847

$115.35

50d

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

50f

Latch

708001532

$64.58

50f4

Flat Washer M5

234051410

$0.44

50g

Pop Rivet 3/16”

293150108

$1.23

50h

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$64.58

50j

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$64.58

50k

Seat Support

708001483

$2.98

50m

Rubber Stopper

708000758

$9.37

50n

Insert

708001511

$3.85

50p

Cap

708001512

$12.68

50q

Torx Truss PT K40 x 12

250001131

$1.74

50r

Flat Washer

224060201

$1.15

50s

Oval Head Torx Screw K60 X 16

250000546

$1.74

50t

Torx Truss M8 X 90

250000806

$6.15

50u

Sleeve

705009248

$14.75

50v

Pilot Lamp Cap

710003910

$3.85
