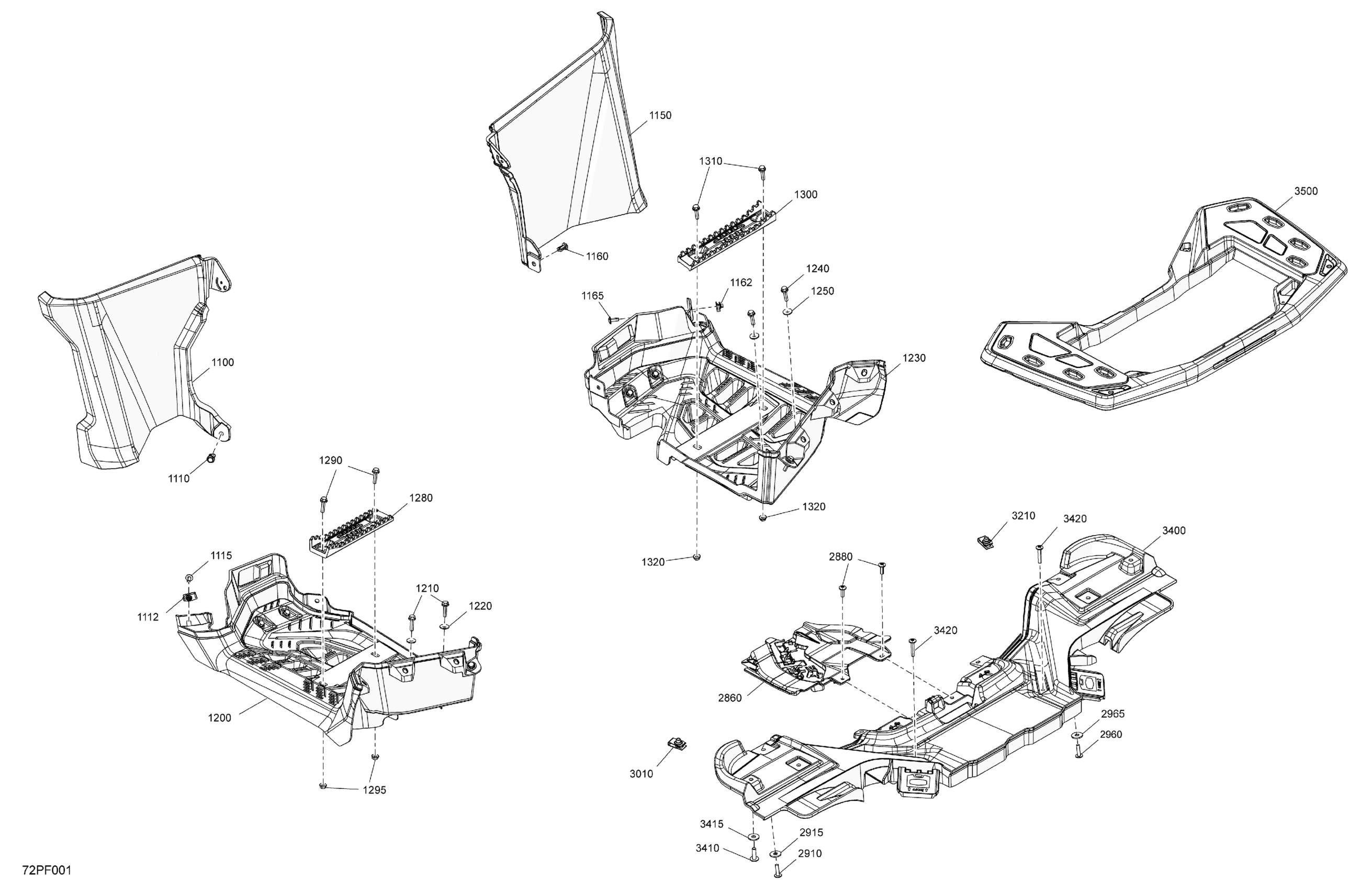

Can-Am OUTLANDER - 6X6 - DPS - 850 EFI - 2GTA - Granite Grey - 2026 Body - Rear Section Diagram

Description

Price

1100

LH Upper Footstep

705017657

$82.99

1110

Tuflok Plastic Rivet

293150230

$1.49

1112

Panel Nut M6 X 1.0

250100198

$2.19

1115

Torx Head Screw M6 X 16

250000717

$2.19

1150

RH Upper Footstep

705017659

$82.99

1160

Tuflok Plastic Rivet

293150230

$1.49

1162

Panel Nut M6 X 1.0

250100198

$2.19

1165

Torx Head Screw M6 X 16

250000717

$2.19

1200

LH Footboard

705012789

$189.99

1210

Hex Flange Screw M6 X 25

250000841

$7.69

1220

Stainless Steel Flat Washer

234062670

$2.19

1230

RH Footboard

705012790

$139.99

1240

Hex Flange Screw M6 X 25

250000841

$7.69

1250

Stainless Steel Flat Washer

234062670

$2.19

1280

Footrest

705013651

$4.09

1290

Hex Flange Screw M6 X 25

250000841

$7.69

1295

Hex. Flange Nut M6

233161414

$2.19

1300

Footrest

705013651

$4.09

1310

Hex Flange Screw M6 X 25

250000841

$7.69

1320

Hex. Flange Nut M6

233161414

$2.19

2860

Panel

709001696

$18.49

2880

Screw Torx M6 X 20

250001257

$1.69

2910

Torx-Truss M/S M6 X 25

250001000

$5.39

2915

Flat Washer 6 mm

234062410

$1.49

2960

Torx-Truss M/S M6 X 25

250001000

$5.39

2965

Flat Washer 6 mm

234062410

$1.49

3010

Panel Nut M6 X 1.0

250100198

$2.19

3210

Panel Nut M6 X 1.0

250100198

$2.19

3400

Rear Multi Purpose Support

705018518

Unavailable

3410

Screw Torx M6 X 20

250001257

$1.69

3415

Flat Washer 6 mm

234062410

$1.49

3420

Screw Torx M6 X 35

250001258

$2.19

3500

Rear Luggage Rack Ass'y

705019089

Unavailable
