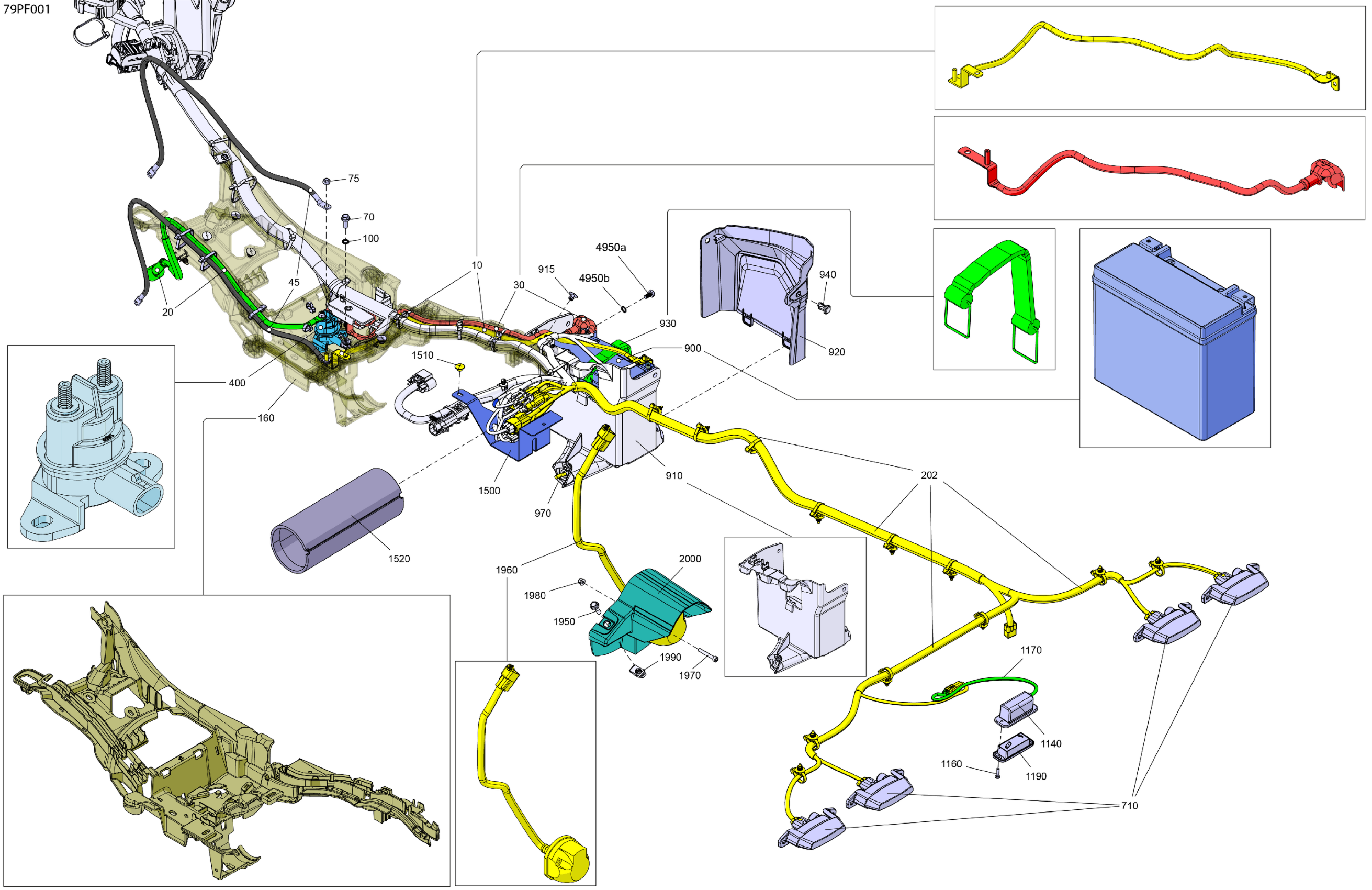

Can-Am OUTLANDER - 6X6 - DPS - 700 EFI - 2ETD - Granite Grey - 2026 Electric - Rear Section Diagram

Description

Price

Negative Cable

710009367

$35.04

Positive Cable

710011179

$43.25

Positive Cable

710009368

$43.25

Negative Cable

710007321

$35.04

Hex. Flange Screw M6 X 16

207661646

$1.00

Elastic Stop Nut M6

232561414

$1.55

100

External Serrated Lock Washer 6 mm

234461608

$0.92

160

Starter Relay Support

710009950

$38.78

202

Taillight Wiring Harness

710009701

$85.04

400

Starter Relay

278003012

$35.07

710

Tail Light

710010031

$58.18

900

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$101.37

910

Battery Support

710008195

$41.76

915

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

920

Battery Cover

710011427

Unavailable

930

Fuel Tank Strap

293850087

$14.27

940

Tuflok Plastic Rivet

293150230

$1.21

970

Hex. Flange Screw M6 X 25

207562544

$1.39

1140

Rear Connector Guard

710008469

$8.43

1160

Flange Torx Screw K40 X 16

250000287

$1.74

1170

Rear Lighting Wiring Harness

710008956

$16.39

1190

License Light

710005501

$55.19

1500

Wiring Harness Support

710010954

$21.61

1510

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

1520

Sheath | Not Shown

710004193

$18.63

1950

Hex. Flange Screw M6 X 20

207662046

$1.74

1960

Trailer Harness

710005846

$202.96

1970

Socket Head Screw M5 X 35

205053588

$1.56

1980

Hex. Flange Elastic Nut M5

233251414

$1.66

1990

Panel Nut M6 X 1.0

250100198

$1.73

2000

Trailer Hitch Support

710009909

$6.30

4950a

Screw | Not Shown

710009084

$1.48

4950b

Washer | Not Shown

710009082

$0.99
