Description

Price

10

LH Front Brake Caliper | Includes 10 to 10d

705602299

$258.43

10a

LH Pad Brake

705602070

Unavailable

10b

Pin Set

705601016

$9.98

10c

Bleeding Screw

705601017

$6.45

10d

Retaining Spring

705601018

$7.98

11

LH/RH Pads Kit

705602167

$101.51

20

RH Front Brake Caliper | Includes 20 to 20g

705602300

$258.43

20a

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

20b

Pin Set

705601016

$9.98

20c

Bleeding Screw

705601017

$6.45

20d

Retaining Spring

705601018

$7.98

20g

RH Pads Kit

705602168

$50.74

21

LH/RH Pads Kit

705602167

$101.51

30

LH Rear Brake Caliper | Includes 30 to 30f

705601810

$258.43

30a

LH Pad Brake

705602070

Unavailable

30b

Pin Set

705601016

$9.98

30c

Bleeding Screw

705601017

$6.45

30d

Retaining Spring

705601018

$7.98

31

LH/RH Pads Kit

705602167

$101.51

40

RH Rear Brake Caliper | Includes 40 to 40d

705601811

$258.43

40a

PAD_BRAKE R - Call your local BRP dealership

705602071

Unavailable

40b

Pin Set

705601016

$9.98

40c

Bleeding Screw

705601017

$6.45

40d

Retaining Spring

705601018

$7.98

40g

RH Pads Kit

705602168

$50.74

41

LH/RH Pads Kit

705602167

$101.51

45

Brake Disc

705602310

$115.35

50

Brake Disc

705602348

$86.12

55

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

80

Hex. Flange Screw M10 X 25

207502546

$1.74

295

Hex Flange Screw M6 X 25

229000711

$2.75

300

LH Front Brake Master Cylinder | Includes 300 to 300d

705602312

$230.74

300a

Master Cylinder Lever

705602075

Unavailable

300b

Clamp And Screw Kit

507032477

$23.05

300b1

Hex. Flange Screw M6 X 25

250000447

$2.06

300c

Cap Set

219800096

$23.05

300c1

Screw M4 X 20

415129356

$2.17

300d

Hex Flange Screw M6 X 25

229000711

$2.75

310

Master Cylinder Support

705207200

$32.28

320

Hex. Flange Screw M10 X 70

207607046

$2.91

325

Hex. Flange Elastic Nut M10

233201436

$1.74

330

Brake Pedal

705602192

$54.58

335

Shoulder Screw M10

250000513

$5.54

340

Hex. Flange Elastic Nut M10

233201436

$1.74

345

O-Ring Seal

293300285

$3.98

350

Brake Pedal Spring

705600792

$9.22

355

Oil Tank Screw

705602073

$32.28

360

Oil Tank Support

705208962

$32.28

365

Torx Screw M6 X 20

250000722

$1.34

375

Hex. Flange Elastic Nut M6

233261466

$1.66

380

Hex. Flange Screw M6 X 45

207664544

$1.07

385

Hose Support

705602234

$7.37

395

Hex. Flange Screw M6 X 40

207664044

$2.18

400

Rear Brake Master Cylinder Ass'y | Includes 400 to 400a

705602122

$230.74

400a

Brake Fluid Reservoir

705602138

$226.12

410

Hex. Flange Screw M8 X 50

207685044

$1.39

415

Hex. Flange Elastic Nut M8

233281414

$1.14

420

Brake Switch

705601250

$59.97

440

Bleeding Screw

705601051

$11.98

595

Hex. Flange Elastic Nut M6

233261466

$1.66

600a

LH Front Master Cylinder Hose

705602271

$193.82

600b

Brake Hose

705602272

$226.12

600c

Brake Hose

705602273

$226.12

600d

Clamp

293650256

$4.36

605

Hex. Flange Screw M6 X 45

207664544

$1.07

610

Rear Caliper Hose | Includes 610 to 610a

705602001

$78.43

610a

Clamp

293650256

$4.36

615

Pop Rivet 3/16 X ,425

293150293

$0.26

645

Pop Rivet 3/16 X ,425

293150293

$0.26

670

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

675

Washer

414920600

$1.52

680

Pop Rivet 3/16 X ,425

293150293

$0.26

685

Torx Truss M6X14

250000789

$4.41

840

Pop Rivet 3/16 X ,425

293150293

$0.26

870

Torx Screw M6 X 50

250000317

$2.06

880

Hex. Flange Elastic Nut M6

233261466

$1.66

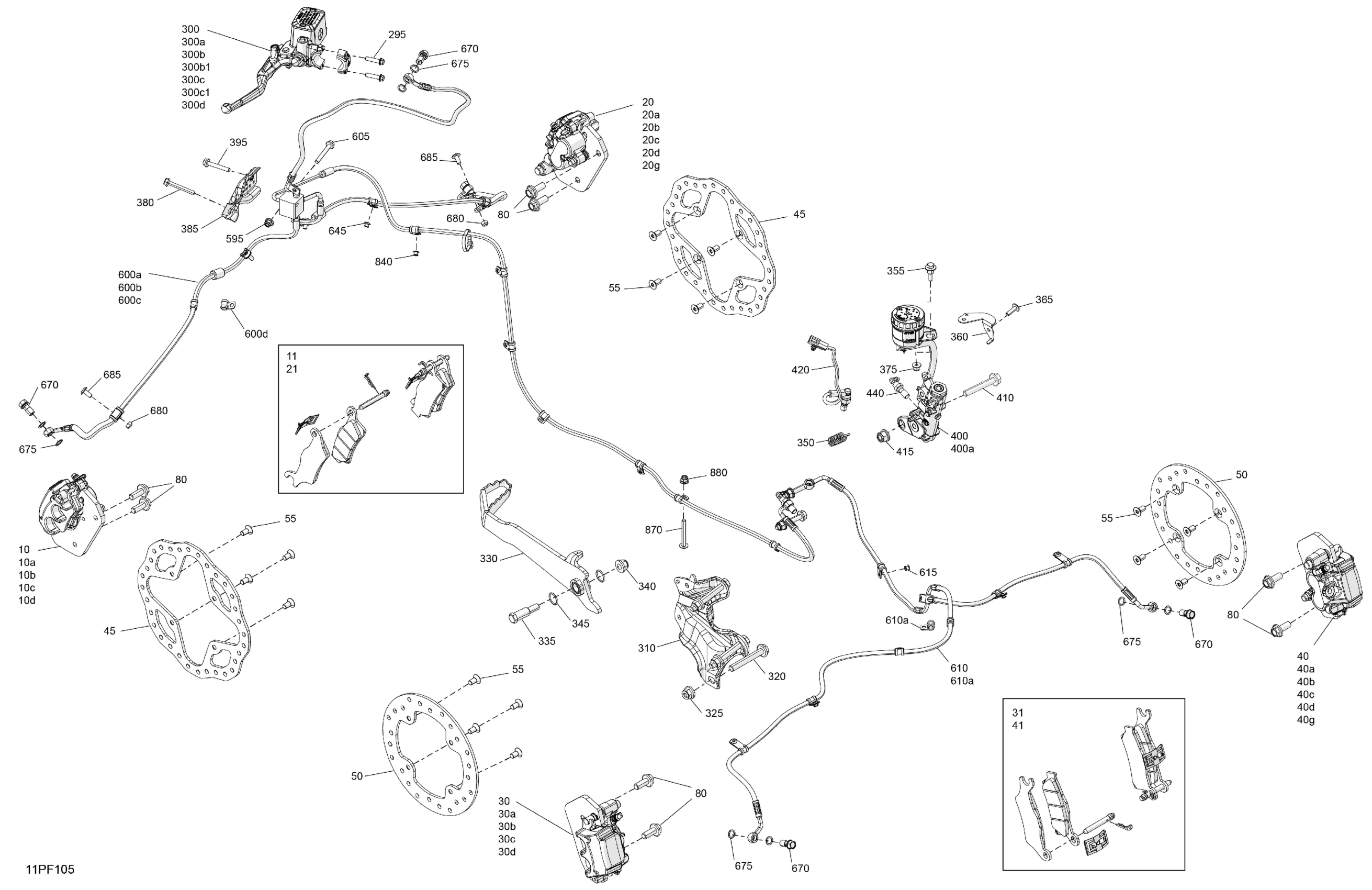

Can-Am OUTLANDER - 6X6 - BACKCOUNTRY - 1000R EFI - 2JTA - Stealth Black - 2026 Mechanic - Brake System Diagram
