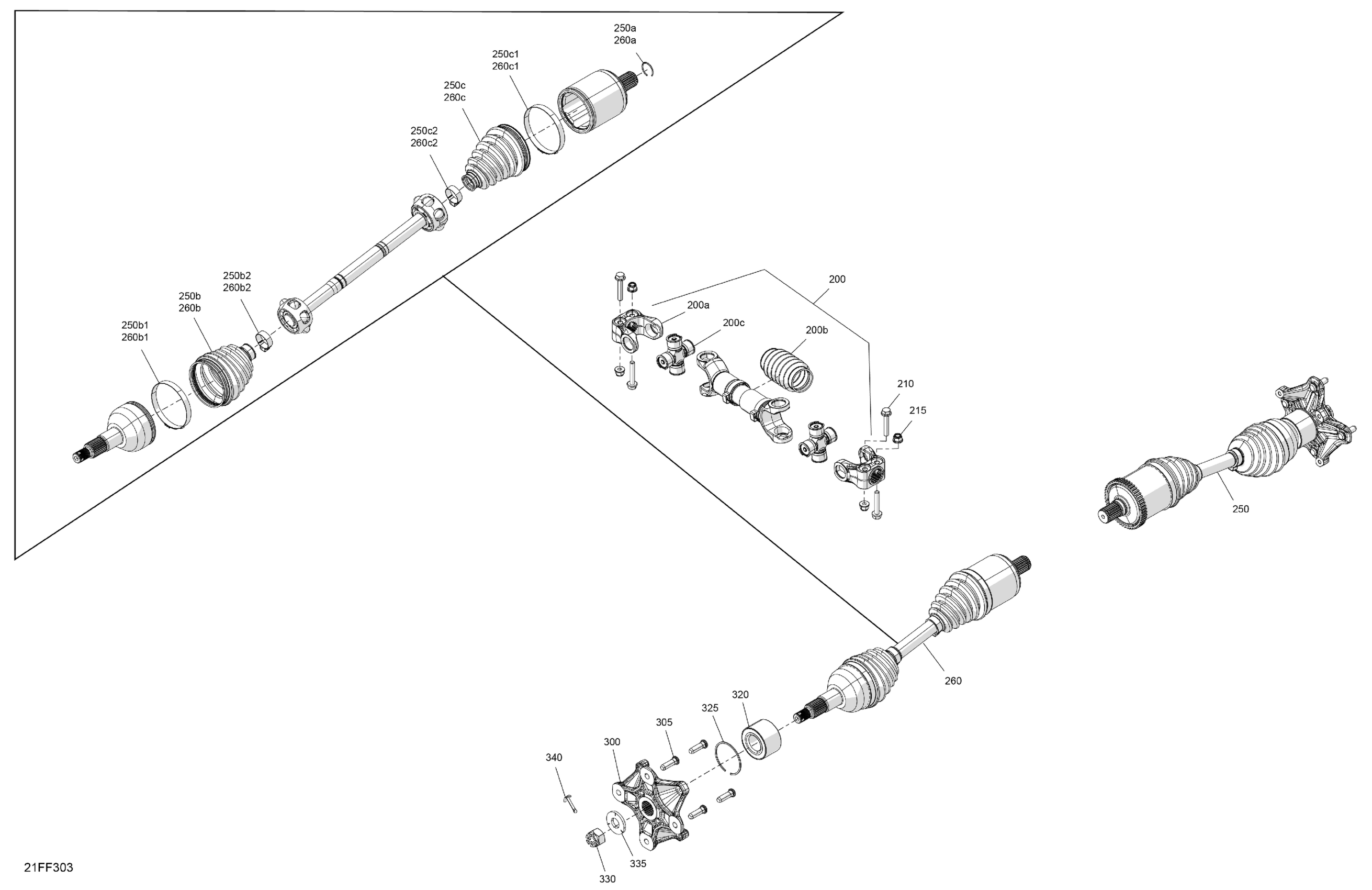

Can-Am OUTLANDER - 4X4 - XTP - 1000R - 4HTL - Mineral Gray Satin - 2026 Drive - Rear - Common Parts Diagram

Description

Price

200

Rear Drive Axle | Includes 200 to 200c

705503887

$170.74

200a

Connecting Yoke 20Th

715900974

$36.89

200b

Drive Shaft Boot Kit

715900975

$13.83

200c

Universal Joint Ass'y

715900976

$46.12

210

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

215

Hex. Elastic Flange Nut M8

233281416

$1.25

250

CV Joint | Includes 250 to 250c2

705503460

$263.82

250a

Circlip Joint

715500463

$5.52

250b

CV Joint Boot Kit | Includes 250b to 250b2

715500531

$41.51

250b1

Clamp, Large

715500537

$5.52

250b2

Small Clamp

715500533

$5.52

250c

CV Joint Boot Kit | Includes 250c to 250c2

715500532

$41.51

250c1

Clamp, Large

715500538

$5.52

250c2

Small Clamp

715500533

$5.52

260

CV Joint | Includes 250 to 250c2

705503459

$233.82

260a

Circlip Joint

715500463

$5.52

260b

CV Joint Boot Kit | Includes 250b to 250b2

715500531

$41.51

260b1

Clamp, Large

715500537

$5.52

260b2

Small Clamp

715500533

$5.52

260c

CV Joint Boot Kit | Includes 250c to 250c2

715500532

$41.51

260c1

Clamp, Large

715500538

$5.52

260c2

Small Clamp

715500533

$5.52

300

Wheel Hub

705503257

$101.51

305

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

320

Ball Bearing

293350150

$52.99

325

Circlip

293370019

$4.98

330

Hex. Flange Castellated Nut M18

232291413

$2.82

335

Conical Spring Washer M18

250200171

$5.28

340

Cotter Pin

250400071

$1.74
