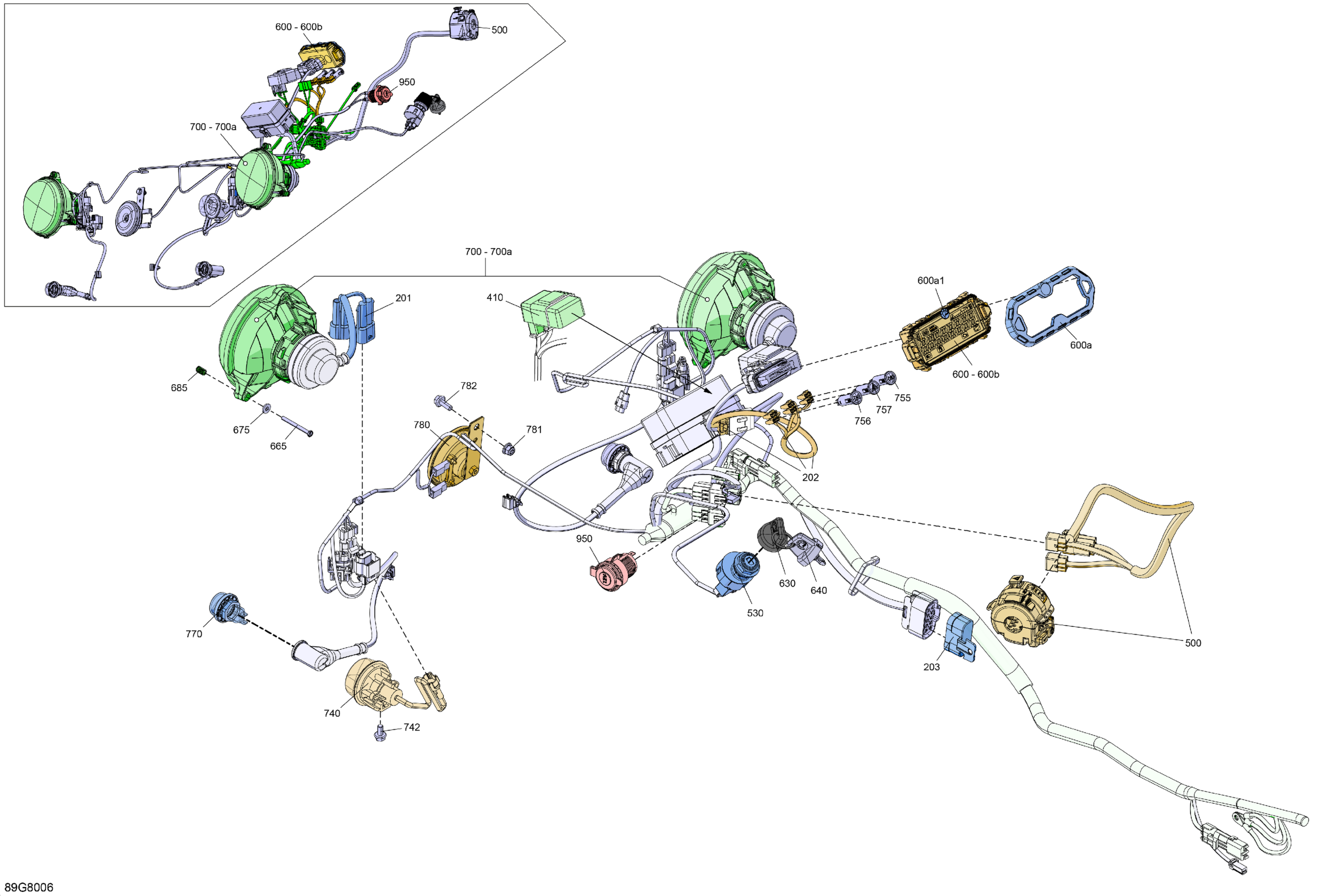

Can-Am OUTLANDER - 4X4 - STD - 570 EFI - 3BJB - Viper Red, 2018 Electric - Front Section Diagram

Description

Price

201

Light Cable

710005780

$20.74

202

Indicator Light Cable

710005840

$16.89

203

DPS Connector Cap | Not Shown

710005760

$15.22

410

Flasher Unit

710003239

$78.43

500

Multi-Function Handle

710005552

$161.51

530

Ignition Switch

710008400

Unavailable

600

Speedometer | Includes 600 to 600b

710005553

$323.05

600a

Trim Ring Ass'y

710001183

$18.43

600a1

BRP Logo 13 MM

516010651

$9.66

600b

Button

715900265

$12.68

630

Black, Electronic Key

710000817

$55.35

640

Grey, Electronic Key

710002183

$55.35

665

Hex. Screw K40 X 45

250000718

$1.74

675

Flat Washer

517225900

$0.17

685

Spring

517168600

$6.91

700

Low Beam

710003900

$106.12

700a

Bulb, 12V 35/35W

710000871

$32.28

740

Flasher | Europe

710002964

$35.35

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

755

Pilot Light Trailer Flasher

710005766

$8.45

756

Pilot Light Tail Lamp

710005767

$8.45

757

Pilot Lamp | Model-Europe

710003909

$23.05

770

Day Light | Europe

710001726

$36.89

780

Horn

710004791

$37.66

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 16

207661644

$0.61

950

DC Outlet

710001248

$31.17

1879

Clamp

293650256

$4.36
