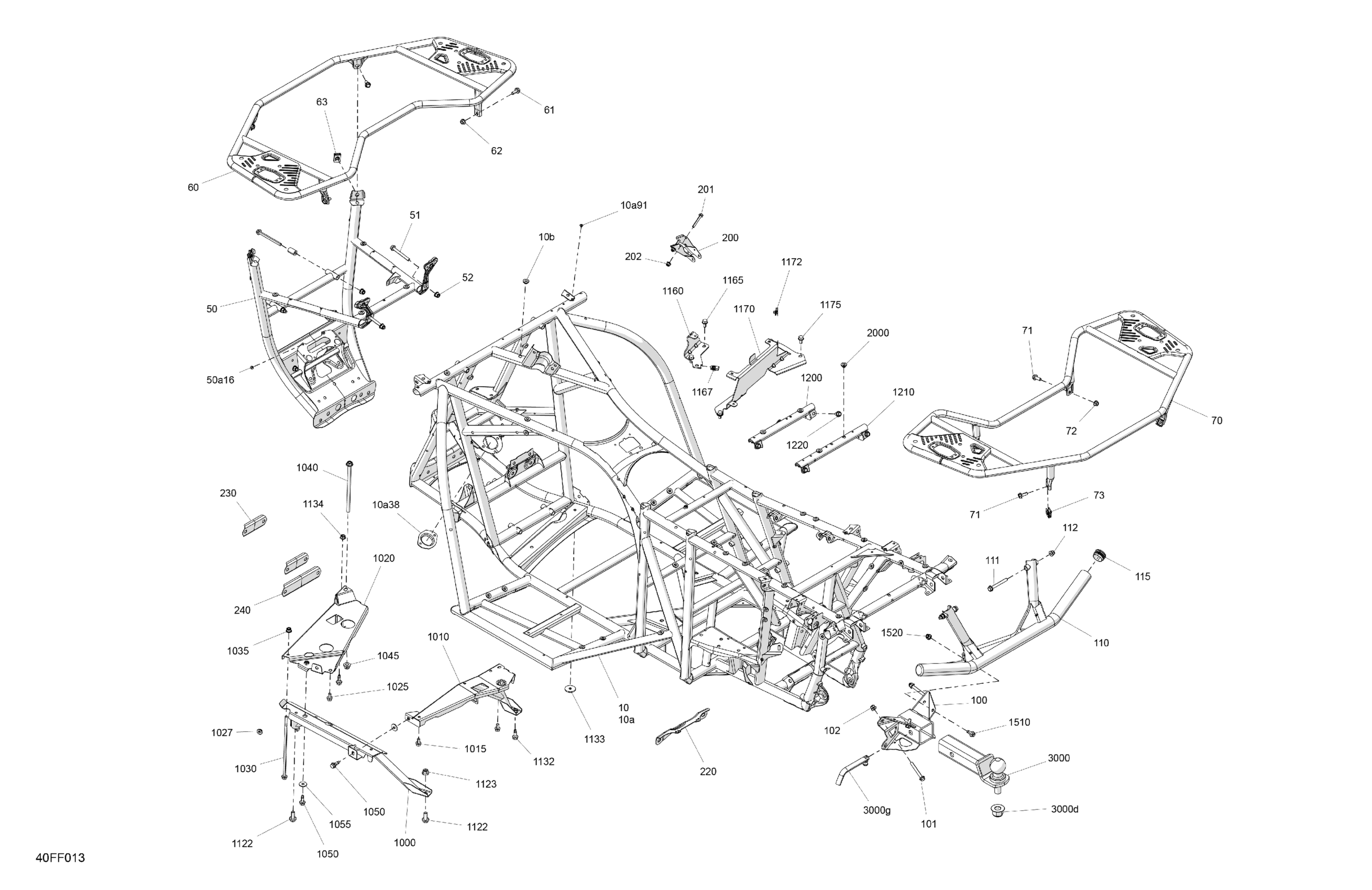

Can-Am OUTLANDER - 4X4 - EV - 2WTD - Bright White - 2026 Frame - System Diagram

#

Description
Price

10

Chassis Ass'y | Includes 10 to 10b

715010930

Unavailable

10a

Chassis Ass'y | Includes 10 to 10b

715010930

Unavailable

10a38

Lower Bearing Support

709402713

$41.51

10a91

Pop Rivet 3/16 X ,425

293150293

$0.26

10b

Threaded Insert

293450383

$2.31

50

Front Bumper | Includes 50 to 50a16

705208429

$258.43

50a16

Pop Rivet 3/16 X ,425

293150293

$0.26

51

Hex. Flange Screw M8 X 70

207687044

$6.11

52

Hex. Flange Elastic Nut M8

233281414

$1.14

60

Deep Black, Front Luggage Rack

705208148

$258.43

61

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

62

Hex. Flange Nut M8

233181414

$0.91

63

Panel Nut M8 X 1.25

250100236

$3.43

70

Deep Black, Rear Luggage Rack

705208247

$239.97

71

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

72

Hex. Flange Nut M8

233181414

$0.91

73

Panel Nut M8 X 1.25

250100236

$3.43

100

Trailer Hitch | Includes 100 to 100a3

705211925

Unavailable

101

Hex. Flange Screw, M8 X 65

207686544

$9.74

102

Hex. Flange Elastic Nut M8

233281414

$1.14

110

Deep Black, Rear Bumper

705209181

Unavailable

111

Hex. Flange Screw M8 X 70

207687044

$6.11

112

Hex. Flange Elastic Nut M8

233281414

$1.14

115

Cap

705202455

$4.62

200

Lever Support

705208228

$10.62

201

Hex. Flange Screw M6 X 45

207664544

$1.07

202

Hex. Flange Elastic Nut M6

233261466

$1.66

220

Rear Suspension Arm Reinforcement

705211974

$16.12

230

Front Upper Suspension Arm Reinforcement

705212296

$5.52

240

Front Lower Suspension Arm Reinforcement

705211664

$5.52

1000

LH Lower Battery Support

705211972

$89.97

1010

RH Upper Battery Support

705211998

$89.97

1015

Hex Forming Screw Hd.Fl. Din. M8 X 16

210281640

$2.06

1020

Front Upper Battery Support

705212090

$89.97

1025

Hex Forming Screw Hd.Fl. Din. M8 X 16

210281640

$2.06

1027

Threaded Insert

293450383

$2.31

1030

Hex Flange Screw M8 X 235MM

518335077

$17.66

1035

Hex. Flange Elastic Nut M8

233281414

$1.14

1040

Geoblack, Hex. Flange Screw M10 X 185

250001334

$18.43

1045

Hex. Flange Elastic Nut M10

233201436

$1.74

1050

Hex Screw M8 S.Grip

250001085

$1.37

1055

Flat Washer 8 mm

234082410

$1.11

1122

Hex. Flange Screw M10 X 25

207602546

$1.74

1123

Hex. Flange Elastic Nut M10

233201436

$1.74

1132

Hex Screw M8 S.Grip

250001085

$1.37

1133

Washer

250200203

$2.75

1134

Hex. Flange Nut M8

233181414

$0.91

1160

Front Battery Charger Support

705212589

$23.05

1165

Hex Forming Screw Hd.Fl. Din. M8 X 16

210281640

$2.06

1167

Panel Nut M6 X 1.0

250100198

$1.73

1170

Rear Battery Charger Support

705212007

$23.05

1172

Panel Nut M6 X 1.0

250100198

$1.73

1175

Hex Forming Screw Hd.Fl. Din. M8 X 16

210281640

$2.06

1200

Front Upper Cross Member

705212028

$108.43

1210

Rear Upper Cross Member

705212030

Unavailable

1220

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

1510

Hex. Flange Screw M8 X 20

207682044

$0.92

1520

Hex. Flange Elastic Nut M8

233281414

$1.14

2000

Threaded Insert

293450383

$2.31

3000

Trailer Hitch Ass'y | Includes 3000 to 3000g

705211827

$115.35

3000d

Elastic Flange Nut M20

250100104

$9.71

3000g

Hitch Pin

705204490

$54.58
