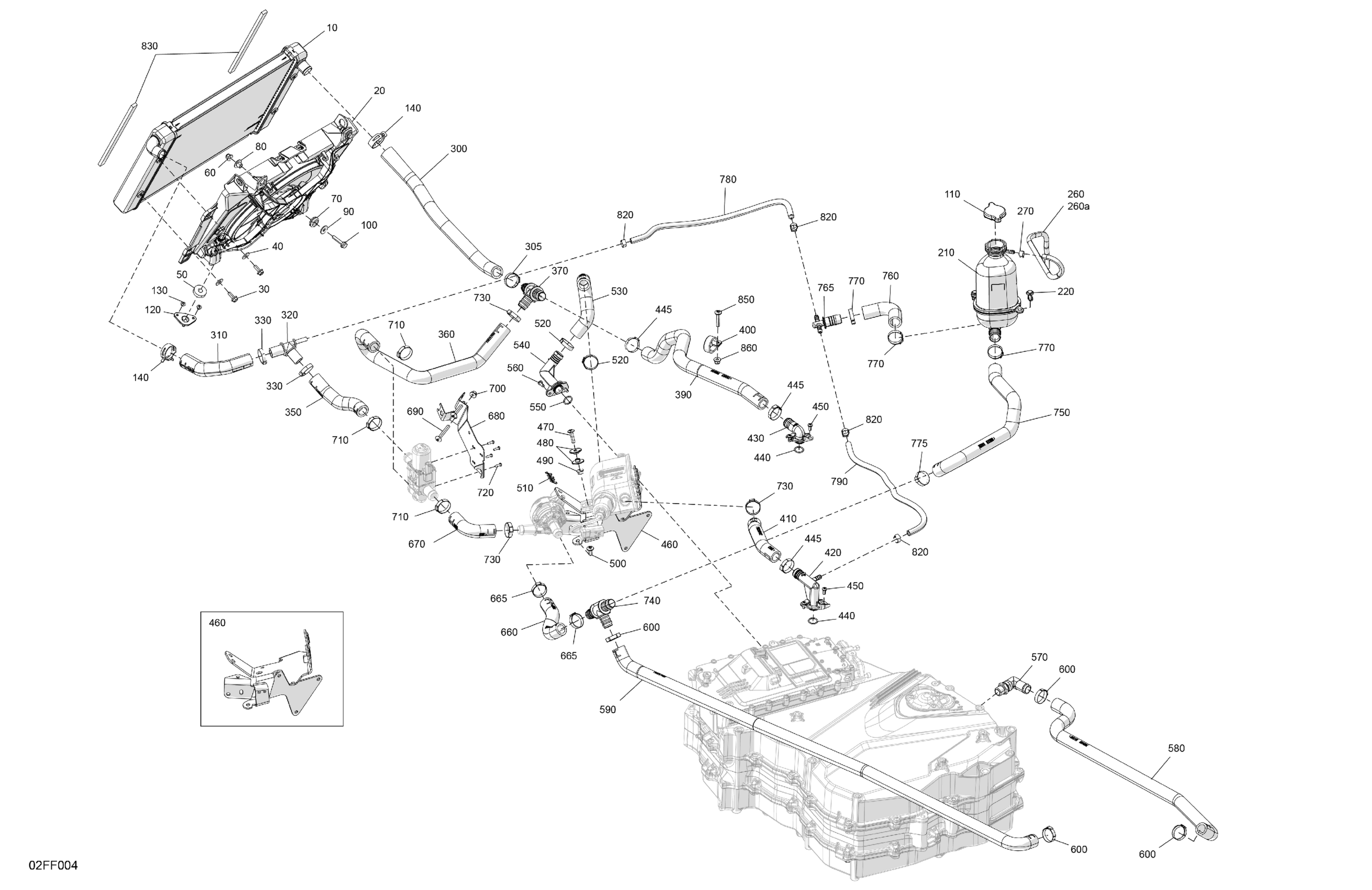

Can-Am OUTLANDER - 4X4 - EV - 2WTA - Granite Grey - 2026 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200762

Unavailable

20

Fan Cooling

709201457

Unavailable

30

Hex Flange Screw M6 X 16

250000906

Unavailable

40

Flat Washer 6 mm

234062410

$0.64

50

Grommet

709200948

Unavailable

60

Hex. Flange Elastic Nut M6

233261466

Unavailable

70

Overmolded Grommet

293720130

Unavailable

80

Bushing

709001288

Unavailable

90

Flat Washer

250200082

Unavailable

100

Hex. Flange Screw M6 X 30

207663046

$1.42

110

Coolant Tank Cap

709201682

Unavailable

120

Radiator Support

709201149

Unavailable

130

Pop Rivet 3/16 X ,425

293150293

Unavailable

140

Norma Spring Clamp

293650108

Unavailable

210

Coolant Tank

709201060

Unavailable

220

Tuflok Plastic Rivet

293150230

Unavailable

260

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

Unavailable

260a

Not Available As Spare Parts

XXX

Unavailable

270

Spring Clamp

414554800

$0.83

300

Hose Radiator

709201397

Unavailable

305

Oetiker Gear Clamp

293650165

$4.32

310

Hose Radiator

709201398

Unavailable

320

Fitting Pipe Elbow

293710194

$15.35

330

Oetiker Gear Clamp

293650165

$4.32

350

Hose

709201399

Unavailable

360

Hose

709201400

Unavailable

370

Fitting Pipe T

293710214

$5.52

390

Hose

709201401

Unavailable

400

Open Clamp

293750064

$14.75

410

Hose

709201402

Unavailable

420

Manifold Coolant

293710205

$9.22

430

Manifold Coolant

293710215

$9.22

440

Seal O-Ring

293300304

$3.68

445

Oetiker Gear Clamp

293650165

$4.32

450

Screw Torx M5 X 12

250001241

Unavailable

460

Support Pump / Block Heater

709201405

Unavailable

470

Torx-Truss M/S M6 X 25

250001000

$4.33

480

Shouldered Bushing

709001343

Unavailable

490

Hex. Elastic Flange Nut M6

233161464

$0.83

500

Torx Head Screw M6 X 16

250000717

Unavailable

510

External Retaining Ring

509001420

Unavailable

520

Oetiker Gear Clamp

293650165

$4.32

530

Hose

709201404

Unavailable

540

Manifold Coolant

293710196

$9.22

550

Seal O-Ring

293300304

$3.68

560

Screw Torx M5 X 12

250001241

Unavailable

570

Coolant Manifold

293700057

$27.66

580

Hose

709201406

Unavailable

590

Hose

709201407

Unavailable

600

Oetiker Gear Clamp

293650165

$4.32

660

Hose

709201410

Unavailable

665

Oetiker Gear Clamp

293650165

$4.32

670

Hose

709201411

Unavailable

680

Support Valve

709201525

Unavailable

690

Torx Screw M6 X 45

250000748

Unavailable

700

Hex. Elastic Flange Nut M6

233161464

$0.83

710

Oetiker Gear Clamp

293650165

$4.32

720

Torx Screw K35 X 12

250001269

Unavailable

730

Oetiker Gear Clamp

293650165

$4.32

740

Fitting Pipe T

293710214

$5.52

750

Hose Coolant Tank

709201414

Unavailable

760

Hose Coolant Tank

709201415

Unavailable

765

Fitting Pipe T

293710197

$15.35

770

Oetiker Gear Clamp

293650165

$4.32

775

Oetiker Gear Clamp

293650165

$4.32

780

Polyurethane Hose 1000Mm Long

219704391

Unavailable

790

Polyurethane Hose 1000Mm Long

219704391

Unavailable

820

Oetiker Clamp | Europe

293650044

Unavailable

830

Seal 3000MM Long

219704386

Unavailable

850

Torx Screw M6 X 35

250000541

Unavailable

860

Hex. Flange Elastic Nut M6

233261466

Unavailable
