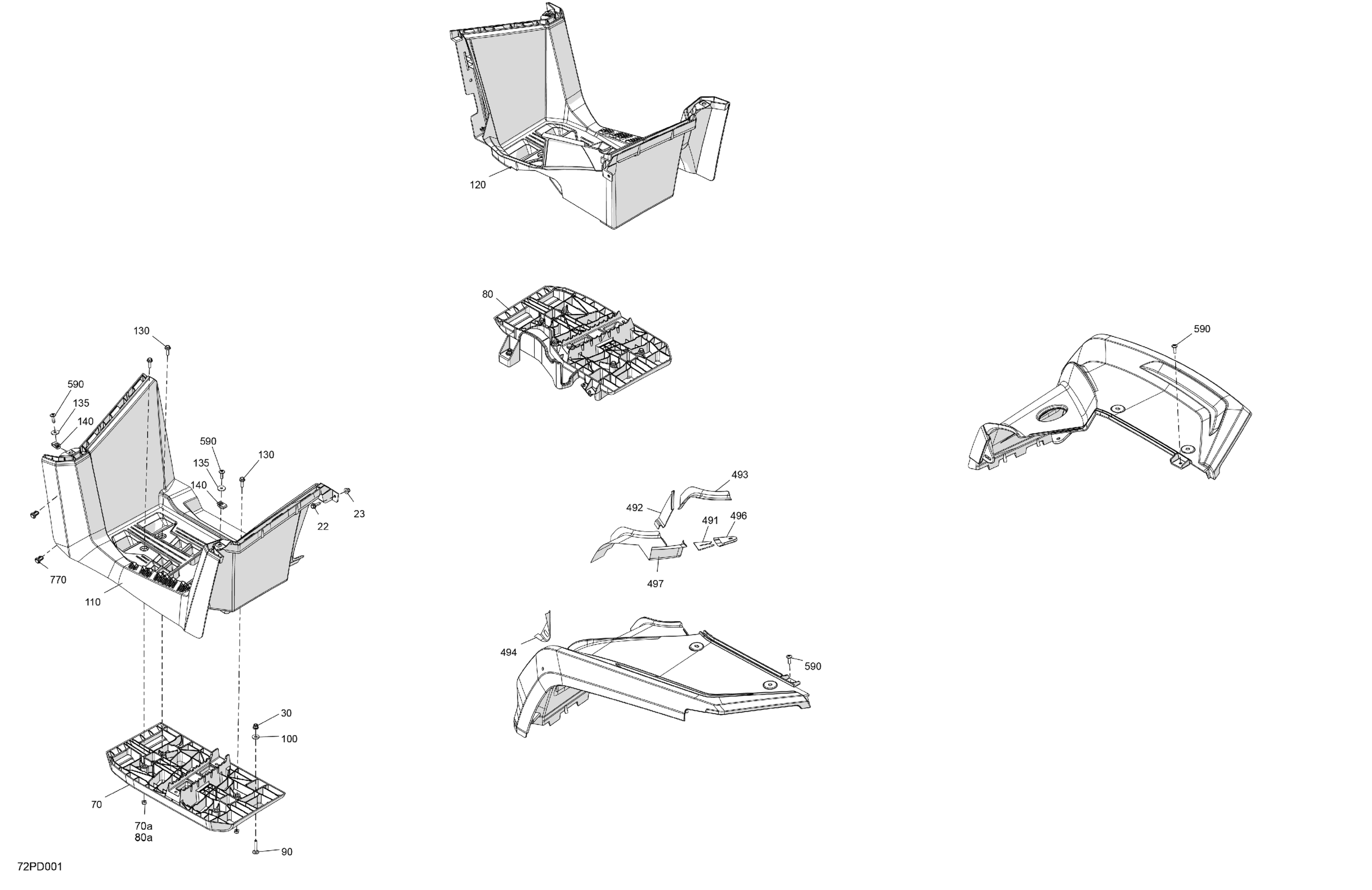

Can-Am Outlander 1000 EFI 6X6 - 4HRA - XU+ Package - Boreal Green, 2024 Body - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$0.83

Flange Elastic Nut M6

233261434

$3.61

Flange Elastic Nut M6

233261434

$3.61

LH Structural Footboard

705011540

$115.35

70a

Square Nut M6

232862412

$1.18

RH Structural Footboard

705011542

$98.43

80a

Square Nut M6

232862412

$1.18

Carriage Bolt M6 X 35

207763554

$1.70

100

Flat Washer 6 mm

234062410

$0.64

110

LH Step

705007040

$92.28

120

RH Step

705007039

$119.97

130

Hex. Flange Screw M6 X 20

207662054

$0.83

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

491

Heat Shield

707002456

$3.98

492

Heat Shield

707002457

$3.98

493

Heat Shield

707002458

$16.89

494

Heat Shield

707002459

$3.98

496

Heat Shield

707002461

$3.98

497

Heat Shield

707002462

$3.98

590

Torx Screw M6 X 20

250000722

$1.34

770

Tuflok Plastic Rivet

293150230

$1.21
