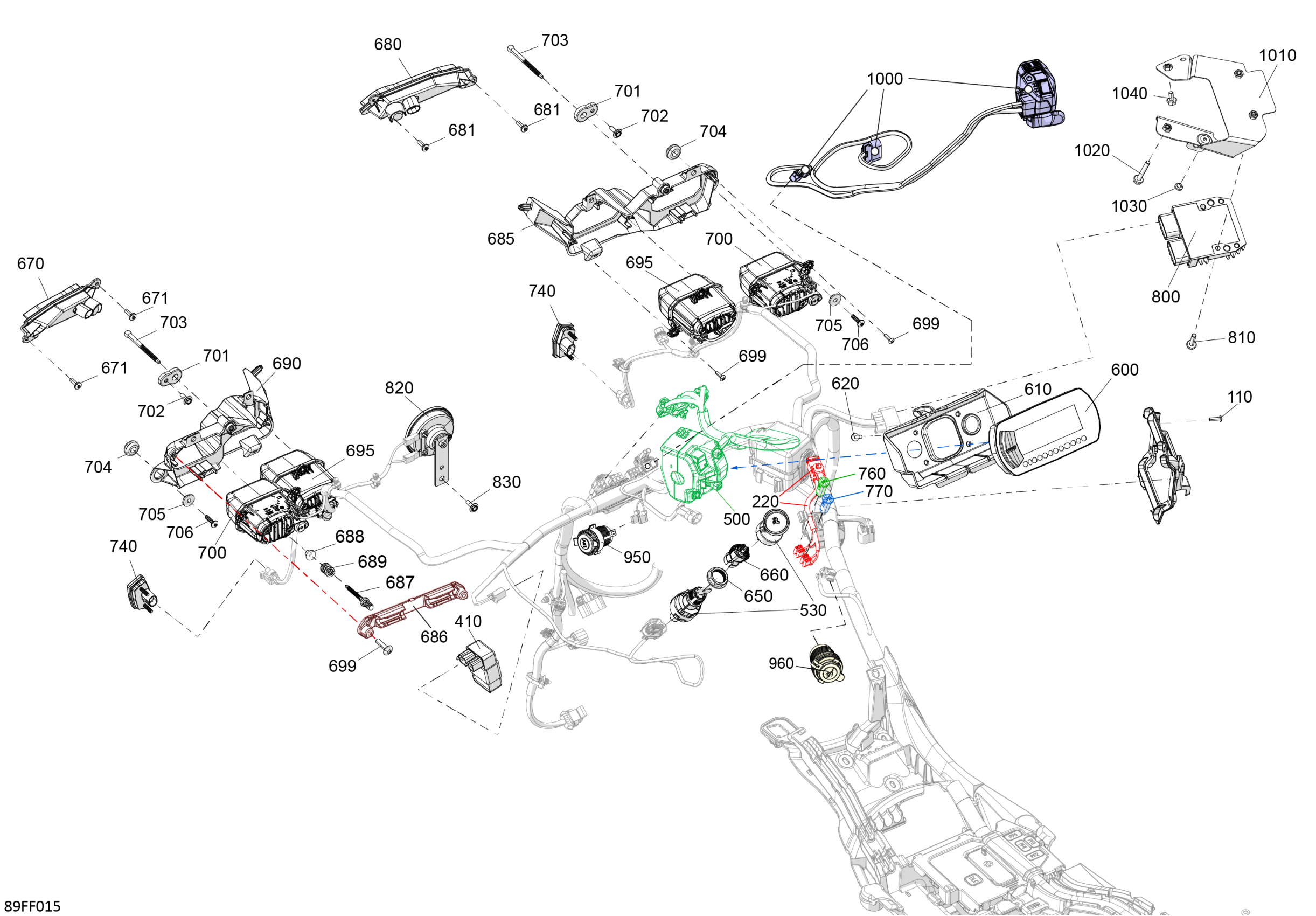

Can-Am OUTL-PRO - 4X4 - XU - HD5 - 1LTA - Compass Green - 2026 Electric - Front Section Diagram

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

$1.74

220

Marker Light Wiring Harness

710007616

$16.89

410

Flasher Unit

710003239

$78.43

500

LH Front Switch Housing

710006672

$239.97

530

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

600

Multifunction Compact Gauge

710008298

$364.58

610

Int Gauge Support

710007694

$6.45

620

Torx Screw K50 X 16

250000720

$1.39

650

Specialized Nut

278004274

$2.72

660

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

670

LH Front Daytime Headlight

710006495

$83.05

671

Torx Screw K50 X 16

250000720

$1.39

680

RH Front Daytime Headlight

710006496

$83.05

681

Torx Screw K50 X 16

250000720

$1.39

685

RH Front Headlight Support

710009678

$42.28

686

Support Pivot | Not Shown

517309049

$2.66

687

Threaded Rod | Not Shown

517309133

$6.20

688

Specialized Nut | Not Shown

517309134

$0.98

689

Compression Spring | Not Shown

517309058

$7.23

690

LH Front Headlight Support

710009677

$41.51

695

HIgh Beam Light

710006910

$156.89

699

Torx-Truss Pt K40 X 16

250000759

$1.74

700

Low Beam Light

710008088

$156.89

701

Ball Socket

293900157

$8.45

702

Screw PT Type K-50 X 16

250000959

$1.74

703

Ajustment Screw

710005837

$6.45

704

Grommet

705003264

$3.43

705

Shoulder Bushing

710004749

$2.75

706

Torx Screw K50 X 16

250000720

$1.39

740

Amber Light Turn Signal

710007217

$17.66

760

Trailer Turn Signal Pilot Lamp

710010098

$8.45

770

Pilot Light Marker

710010099

$8.45

800

Voltage Regulator

710010539

$85.77

810

Hex. Flange Screw M6 X 25

207562544

$1.39

820

Horn

710008852

$37.66

830

Screw PT Type K-50 X 16

250000959

$1.74

950

DC Outlet

710001248

$31.17

960

USB Connector

710008594

$50.74

1000

Hand Lever Accelerator

707003262

$189.20

1010

Voltage Regulator Support

710009942

$16.12

1020

Hex. Flange Screw M6 X 40

207664044

$2.18

1030

Rubber Stopper

293830229

$6.92

1040

Hex. Flange Screw M6 X 12

207661244

$1.70
