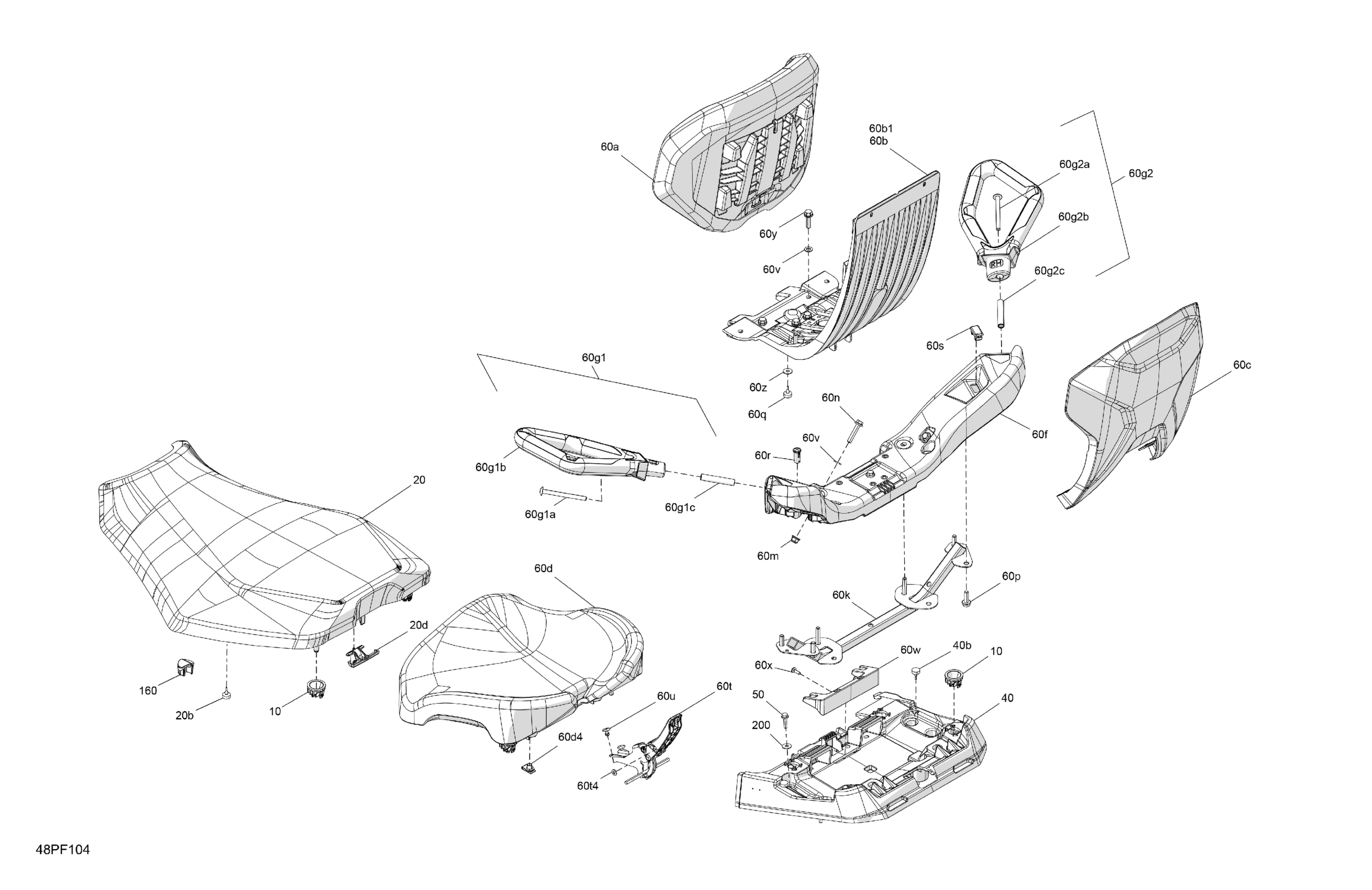

Can-Am OUT-MAX - 6X6 - BACKCOUNTRY - 1000R EFI - 2KTB - Stealth Black - 2026 Body - Seat Diagram

Description

Price

Seat Stopper

708003609

$9.11

Driver Seat | Includes 20 to 20d

708004097

$341.51

20b

Seat Stopper

708003866

$3.61

20d

Latch

708000909

$5.89

Seat Anchorage Kit

715010537

$106.12

40b

Seat Stopper

708003866

$3.61

Hex. Flange Screw M6 X 25

207662544

$0.53

60a

Passenger Backrest

708003747

$489.20

60b

Backrest Support

708003937

$184.58

60b1

Not Available As Spare Parts

XXX

Unavailable

60c

Backrest Trim

708003191

$221.51

60d

Seat Cushion Ass'y | Includes 60d to 60d4

708003272

$274.58

60d4

Panel Nut M8 X 1.25

250100069

$4.00

60f

Handle Support

708004009

$73.82

60g1

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$64.58

60g1a

Torx Truss M8 X 90

250000806

$6.15

60g1b

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$64.58

60g1c

Sleeve

705006129

$14.75

60g2

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$64.58

60g2a

Torx Truss M8 X 90

250000806

$6.15

60g2b

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$64.58

60g2c

Sleeve

705006129

$14.75

60k

Handle Support Reinforcement Ass'y

708004010

$36.89

60m

Hex. Flange Elastic Nut M8

233281414

$1.14

60n

Hex. Flange Screw M8 X 40

207684054

$2.06

60p

Hex. Flange Screw M8 X 25

207682544

$0.90

60q

Seat Stopper

708003866

$3.61

60r

Pilot Lamp Cap

710003910

$3.85

60s

Insert

708001511

$3.85

60t

Seat Latch Ass'y | Includes 60t to 60t4

708003935

$59.97

60t4

Stainless Flat Washer M6

234061600

$0.25

60u

Pop Rivet 3/16”

293150108

$1.23

60v

Flat Washer 8 mm

234081410

$0.69

60w

Backrest Support Reinforcement

708004106

$17.66

60x

Torx Screw K50 X 16

250000720

$1.39

60y

Hex. Flange Screw S.GRIP M8 X 30

207583054

$1.75

60z

Stainless Steel Flat Washer

234062670

$1.74

160

Cap

708004198

$5.52

200

Flat Washer 6 mm

234062410

$0.64
