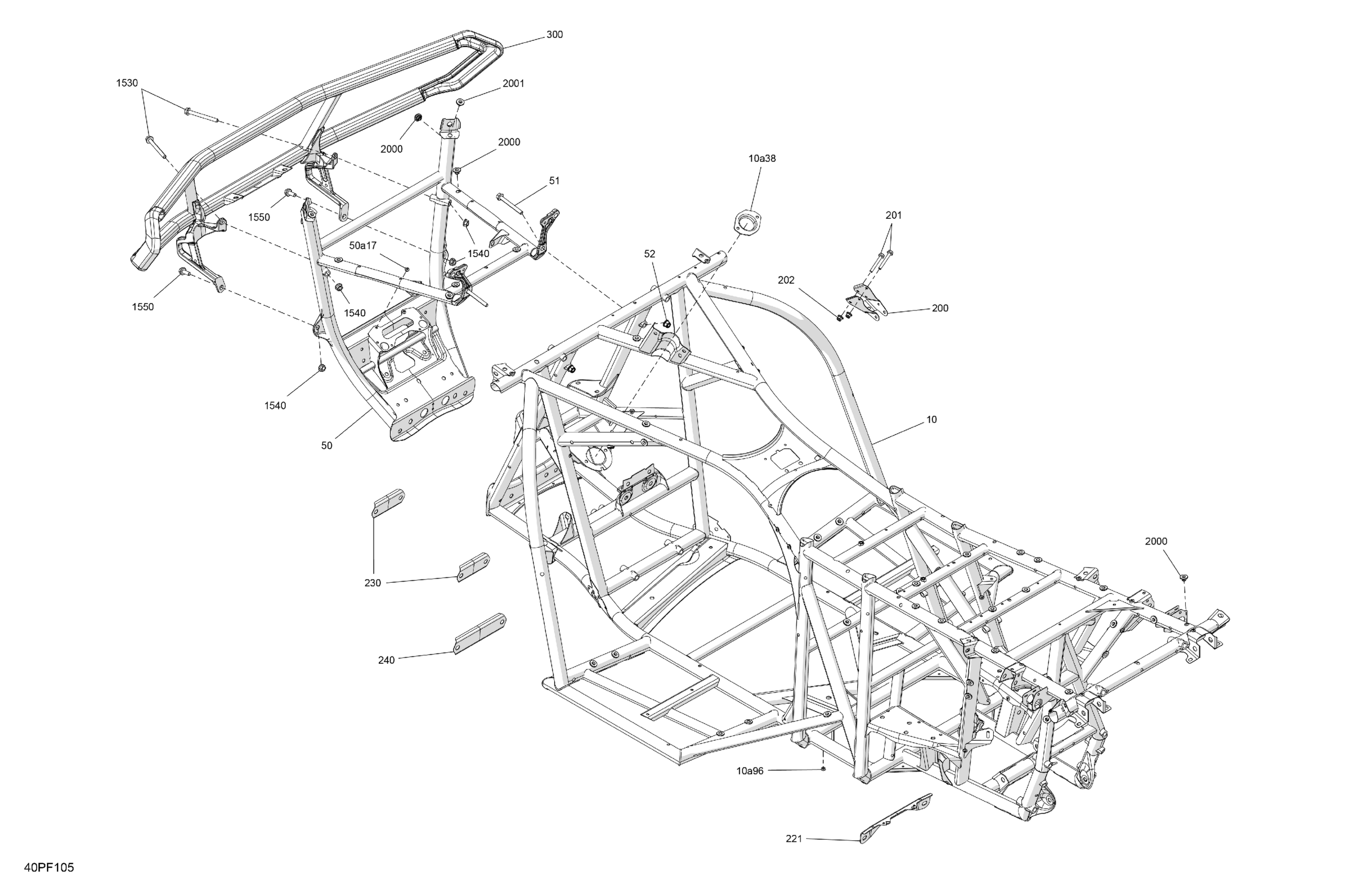

Can-Am OUT-MAX - 6X6 - BACKCOUNTRY - 1000R EFI - 2KTB - Stealth Black - 2026 Frame - System Diagram

Description

Price

Chassis Ass'y | Includes 10 to 10a96

715011544

$2,399.99

10a38

Lower Bearing Support

709402713

$41.51

10a96

Pop Rivet 3/16 X ,425

293150293

$0.26

Front Bumper | Includes 50 to 50a17

705211446

$258.43

50a17

Pop Rivet 3/16 X ,425

293150293

$0.26

Hex. Flange Screw M8 X 70

207687044

$6.11

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Lever Support

705208228

$10.62

201

Hex. Flange Screw M6 X 45

207664544

$1.07

202

Hex. Flange Elastic Nut M6

233261466

$1.66

221

Rear Suspension Arm Reinforcement

705209026

$4.91

230

Front Upper Suspension Arm Reinforcement

705212296

$5.52

240

Front Lower Suspension Arm Reinforcement

705211664

$5.52

300

Deep Black, Front Bumper

715009289

$324.58

1510

Hex Screw Washer Head M8 X 20

207582054

$2.61

1520

Hex. Flange Nut M8

233181414

$0.91

1530

Hex. Flange Screw S.Grip M8 X 75

250001296

$3.68

1540

Hex. Flange Nut M8

233181414

$0.91

1550

Hex Screw Washer Head M8 X 20

207582054

$2.61

2000

Threaded Insert

293450383

$2.31

2001

Threaded Insert

293450383

$2.31
