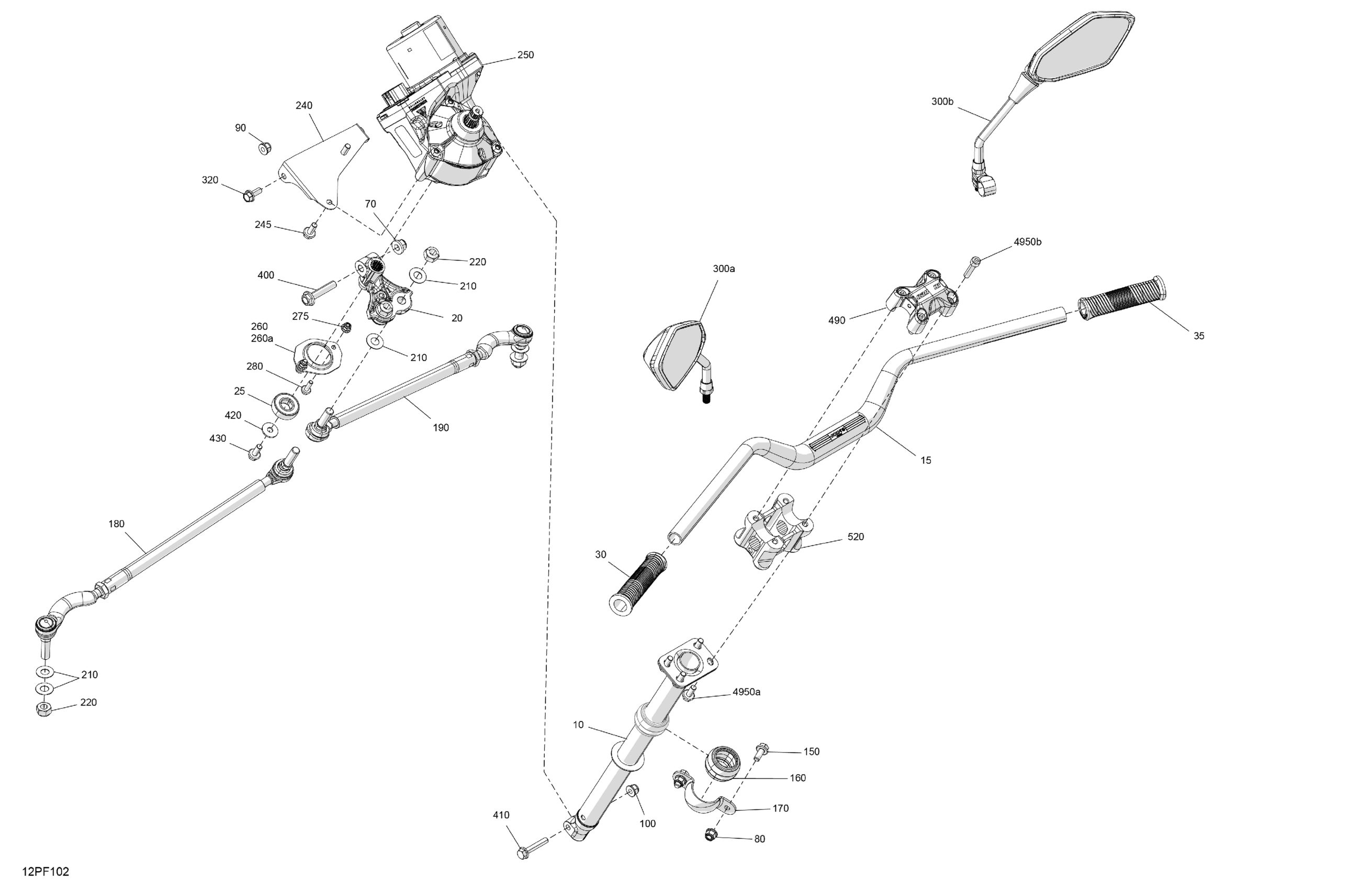

Can-Am OUT-MAX - 6X6 - BACKCOUNTRY - 1000R EFI - 2KTB - Stealth Black - 2026 Mechanic - Steering Diagram

Description

Price

Steering Column

709402739

$110.74

Black Anodized, Handlebar

709403111

$101.51

Pitman Arm

709403065

$50.74

Ball Bearing

709402499

$16.89

LH Handlebar Grip

709402868

$14.75

RH Handlebar Grip

709403010

$14.75

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Elastic Flange Nut M8

233281416

$1.25

100

Hex. Elastic Flange Nut M8

233281416

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

160

Spherical Bushing

709402169

$6.14

170

Upper Column Attachment

709400827

$1.00

180

LH Tie Rod Ass'y

709402737

$59.97

190

RH Tie Rod Ass'y

709402738

$59.97

210

Hardened Washer

706200281

$2.34

220

Hex. Elastic Hex. Nut M12

250100089

$0.39

240

Power Steering Support

709402182

$16.89

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

250

Power Steering Ass'y

709402974

$1,176.89

260

Lower Bearing Support | Includes 260 to 260a

709402360

$10.98

260a

Lower Bearing Support

709402713

$41.51

275

Hex. Flange Elastic Nut M6

233261466

$1.66

280

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

300a

LH Rearview Mirror

708200963

$36.89

300b

RH Rearview Mirror

708201092

$46.12

320

Hex. Flange Screw M8 X 20

207682044

$0.92

400

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.20

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

420

Flat Washer 8 mm

234082410

$1.11

430

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

490

Flange

709402870

$27.66

520

Handlebar Riser Block

709402885

$64.58

4950a

Hex Screw Washer Head M8 X 20

207582054

$2.61

4950b

Socket Head Screw S.Grip M8 X 35

250001297

$2.55
