Can-Am OUT-MAX - 4X4 - XTP - 1000R - 4VTN - Mineral Gray Satin - 2026 Electric - Main Harness - 710009387 Diagram

#

Description
Price

200

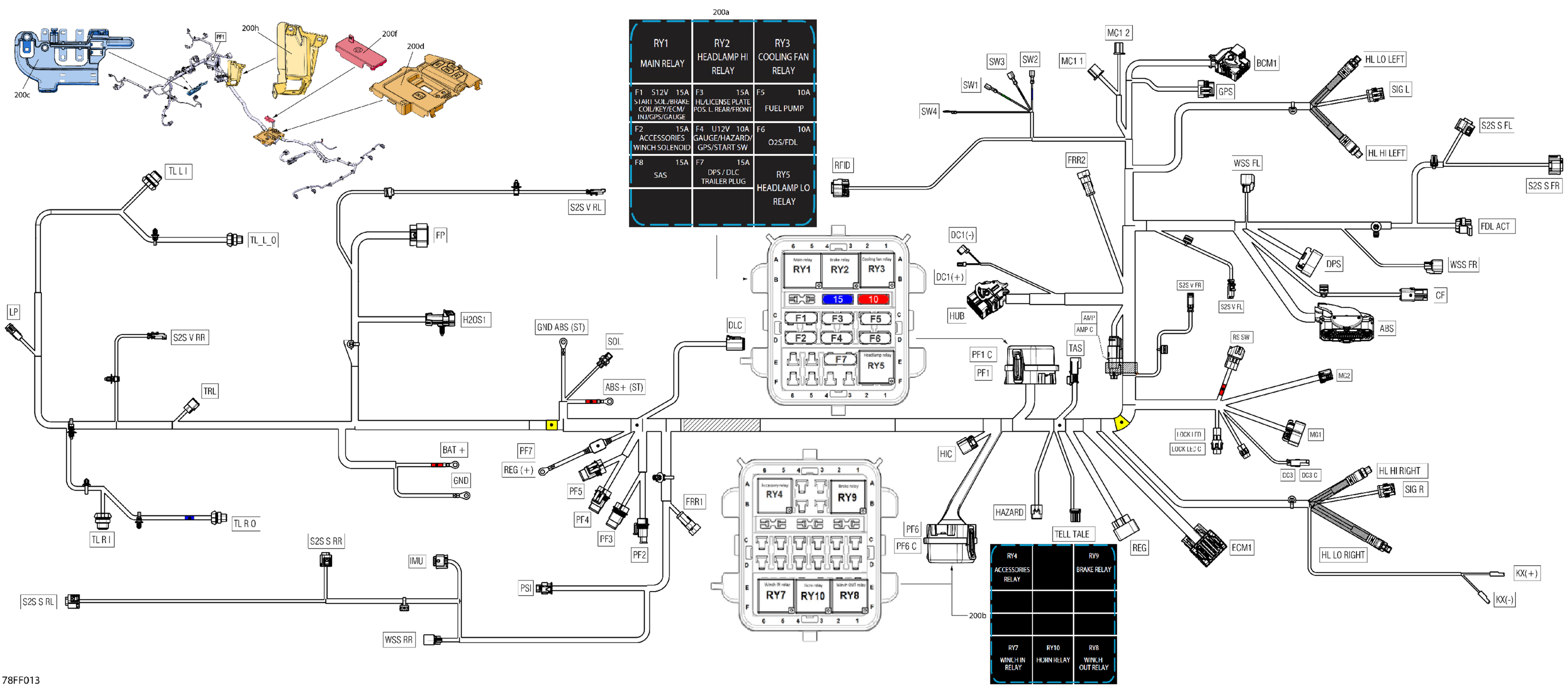

Main Wiring Harness

710009387

$953.70

200a

Fuses Decal | Includes 200a to 200a

710011513

Unavailable

200b

Fuses Decal

710009392

Unavailable

200c

Connector Support

710007290

$19.99

200d

Fuse Holder Cover

710007296

$47.49

200f

Positive Terminal Cap

710008598

$11.49

200h

Fuse Box Support

710009930

$8.81

ABS

Cover With CPA

710008720

$18.63

ABS

Connector Bosch Female 46 Cavities

710008719

$42.51

ABS

Housing Fill Plug 2.8

710008725

$23.85

ABS

Plug 1.2

710008730

$7.63

ABS

Connector Seal Bosch1.2

710008729

$42.51

ABS

Connector Seal Bosch 4.8

710008722

$42.51

ABS

Bosch Female Terminal 1.2

710008726

$7.04

ABS

Bosch Female Terminal 4.8

710008721

$7.04

ABS+ (ST)

Terminal

710000913

$5.69

AEB

Sumitomo Female Connector 2 Cavities

710008152

$10.33

AEB

Wire Seal

710000402

$4.69

AEB

Female Terminal

409012100

$4.69

AMP

Housing 6 Circuits

278002894

$13.99

AMP

Sealing Cap

278002860

$1.79

AMP

Female Terminal 22 AWG

515178349

$2.39

AMP

Female Terminal

515178018

$1.49

AMP C

Housing 6 Circuits

278003866

$13.99

AMP C

Sealing Cap

278002860

$1.79

BAT (+)

Open Barrel Terminal

278001392

$4.89

BCM1

Cover, 48 positions

710001591

$12.49

BCM1

Front PT Housing

710007627

$23.99

BCM1

Plug

710007617

$15.87

BCM1

Plug

710001592

$2.29

BCM1

Plug

710001593

$2.29

BCM1

Seal Joint

710007620

$6.79

BCM1

Seal Joint

710007619

$6.79

BCM1

Femal Terminal

710007623

$2.49

BCM1

Femal Terminal

710007658

$6.09

BCM1

Female Terminal

710001589

$2.29

BCM1

Female Terminal

710001727

$3.29

CF

Clip

710001038

$5.49

CF

Female Housing, 2 Circuits

278000217

$9.79

CF

Wire Seal

710000048

$7.89

CF

MALE TERMINAL - Call your local BRP dealership

278001576

Unavailable

D2

Diode

409012700

$11.49

D5

Diode

409012700

$11.49

D6

Diode

409012700

$11.49

DC1

Female Terminal

409010300

$4.49

DC3

Female Housing, 2 Circuits

515175658

$16.49

DC3

Female Terminal

515175231

$4.49

DC3 C

Male Housing, 2 Circuits

710000667

$8.49

DLC

Female Housing 6 Circuits

710002706

$21.99

DLC

Lock

710002705

$4.49

DLC

Female Terminal

710005438

$4.39

DLC

Female Terminal

710005439

$4.49

DPS

Female Housing

710004989

$7.59

DPS

Lock

710001222

$2.19

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Plug

710002075

$3.19

DPS

Wire Seal

278002186

$5.59

DPS

Seal

710003153

$1.49

DPS

Female Terminal

278002187

$6.49

DPS

Terminal

710001873

$2.19

ECM1

Cover

515178601

$18.49

ECM1

Housing 56 Circuits

515178595

$31.99

ECM1

Plate

515178604

$4.69

ECM1

Plate

515178604

$4.69

ECM1

Plug

515178599

$3.29

ECM1

Plug

515178599

$3.29

ECM1

Plug

515178600

$3.29

ECM1

Plate

515178603

$4.69

ECM1

Plate

515178603

$4.69

ECM1

Terminal

515178598

$3.69

ECM1

Terminal

515178597

$15.99

ECM1

Terminal

515178596

$3.79

ECM1

Terminal

515178596

$3.79

ECM1

Terminal

515178598

$3.69

ECM1

Terminal

515178597

$15.99

FAN (+)

Open Barrel Terminal

278001392

$4.89

FDL ACT

Connector Delphi Female 6 Cavities

710006038

$80.49

FDL ACT

Lock Connector

710006039

$4.59

FDL ACT

Seal

278001482

$3.29

FDL ACT

Female Terminal

278001481

$3.59

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.19

FP

Wire Seal

278002186

$5.59

FP

Seal

710003153

$1.49

FP

Female Terminal

278002187

$6.49

FP

Terminal

710001873

$2.19

FRR1

Male Terminal Housing, 2 Circuits

409209400

$17.49

FRR1

Wire Seal

515176621

$7.69

FRR1

Male Terminal

515176164

$7.29

FRR2

Male Terminal Housing, 2 Circuits

409209400

$17.49

FRR2

Wire Seal

515176621

$7.69

FRR2

Male Terminal

515176164

$7.29

GND

Open Barrel Terminal

278001392

$4.89

GND ABS (ST)

Terminal

710000913

$5.69

GPS

Female Terminal Housing 6 Circuits

278002299

$9.29

GPS

Plug

515175812

$2.29

GPS

Female Terminal

710001119

$5.49

HAZARD

Cap

710000080

$8.49

HAZARD

Wire Seal

710000402

$4.69

HAZARD

Female Terminal

409012100

$4.69

HIC

Housing

515177205

$21.99

HIC

Lock

710001222

$2.19

HIC

Seal Wire

710001332

$3.39

HIC

Terminal

710001228

$3.39

HIC S2S F

Female Connector 4 Cavities

710008739

Unavailable

HIC S2S F

Wire Seal

710001118

$1.49

HIC S2S F

Terminal Tyco Female

710008740

$9.89

HL HI LEFT

Housing

710007660

$8.09

HL HI LEFT

Lock

710001152

$4.49

HL HI LEFT

Wire Seal

710001163

$7.89

HL HI LEFT

Female Terminal

710001164

$9.09

HL HI RIGHT

Housing

710007660

$8.09

HL HI RIGHT

Lock

710001152

$4.49

HL HI RIGHT

Wire Seal

710001163

$7.89

HL HI RIGHT

Female Terminal

710001164

$9.09

HL LO LEFT

Female Housing, 2 Circuits

515177192

$9.29

HL LO LEFT

Lock

710001152

$4.49

HL LO LEFT

Wire Seal

710001163

$7.89

HL LO LEFT

Female Terminal

710001164

$9.09

HL LO RIGHT

Female Housing, 2 Circuits

515177192

$9.29

HL LO RIGHT

Lock

710001152

$4.49

HL LO RIGHT

Wire Seal

710001163

$7.89

HL LO RIGHT

Female Terminal

710001164

$9.09

HO2S1

Housing

710002466

$3.29

HO2S1

Lock

515178661

$4.49

HO2S1

Seal

278001482

$3.29

HO2S1

Gold Terminal

710002597

$3.29

HO2S1

Terminal

710000736

$5.59

HUB

Cover

710007650

$36.99

HUB

Female Molex Connector 53 Cavities

710008036

$49.99

HUB

Plug

710001592

$2.29

HUB

Plug

710001593

$2.29

HUB

Plug

710007617

$15.87

HUB

Seal Joint

710007620

$6.79

HUB

Female Terminal

710001727

$3.29

HUB

Female Terminal

710001589

$2.29

HUB

Femal Terminal

710007658

$6.09

HUB

Terminal

710001728

$6.79

IMU

Housing

710003730

$14.83

IMU

Wire Seal

710001118

$1.49

IMU

Female Terminal

710010230

$9.49

KX

Female Terminal Housing, 1 Circuit

409010400

$7.79

KX

Female Terminal

409010100

$5.69

LOCK LED

Wire Seal

710000402

$4.69

LOCK LED

Male Terminal

409011300

$6.09

LOCK LED

Male Terminal

409011300

$6.09

LOCK LED C

Cap

710000080

$8.49

LP

Male Terminal Housing, 2 Circuits

515175654

$9.29

LP

Male Terminal

515175232

$1.59

MC1 1

Female Housing

710004047

$14.99

MC1 1

Terminal

710002315

$4.55

MC1 2

Female Housing

710004048

$15.49

MC1 2

Terminal

710002315

$4.55

MG1

Sumitomo Female Connector 13 Cavities

710009839

$10.33

MG1

Plug

710008931

$8.79

MG1

Connector Seal

710009813

$13.77

MG1

Sumitomo Female Terminal

710009309

$4.55

MG2

Sumitomo Female 6 Cavities Connector

710009306

$10.33

MG2

Plug

710008931

$8.79

MG2

Connector Seal

710009813

$13.77

MG2

Sumitomo Female Terminal

710009309

$4.55

PF1

Fuse Base Ass'y

278003448

$32.99

PF1

Wire Seal

278000216

$3.29

PF1

Wire Seal

278000218

$4.49

PF1

Wire Seal

710000048

$7.89

PF1

Wire Seal

278001065

$7.89

PF1

Female Terminal

710000890

$4.69

PF1

Female Terminal

710000918

$7.89

PF1

Female Terminal

278002578

$1.49

PF1 C

Fuse Cover

278003553

$3.79

PF1 C

Fuses Decal | Includes 200a to 200a

710011513

Unavailable

PF1-F1

Little Fuse, 15 Ampere

710000745

$8.69

PF1-F2

Little Fuse, 15 Ampere

710000745

$8.69

PF1-F3

Little Fuse, 15 Ampere

710000745

$8.69

PF1-F4

Little Fuse, 10 Amperes

710000744

$8.99

PF1-F5

Little Fuse, 10 Amperes

710000744

$8.99

PF1-F6

Little Fuse, 10 Amperes

710000744

$8.99

PF1-F7

Little Fuse, 15 Ampere

710000745

$8.69

PF1-F8

Little Fuse, 15 Ampere

710000745

$8.69

PF1-RY1

Relay

715900824

$17.32

PF1-RY2

Relay

715900824

$17.32

PF1-RY3

Relay

715900824

$17.32

PF1-RY5

Relay

715900824

$17.32

PF1-SP1

Little Fuse, 10 Amperes

710000744

$8.99

PF1-SP2

Little Fuse, 15 Ampere

710000745

$8.69

PF2

Fuse

710001613

$8.99

PF2

Fuse Holder

278001325

$8.99

PF2

Female Terminal

710000357

$7.89

PF3

Fuse

710001613

$8.99

PF3

Fuse Holder

278001325

$8.99

PF3

Female Terminal

710000357

$7.89

PF3

Female Terminal

710000113

$7.19

PF4

Fuse

710001613

$8.99

PF4

Fuse Holder

278001325

$8.99

PF4

Female Terminal

710000357

$7.89

PF5

25 Amp Fuse

278003867

$3.49

PF5

Fuse Holder

278001325

$8.99

PF5

Female Terminal

710000357

$7.89

PF6

Fuse Base Ass'y

278003448

$32.99

PF6

Wire Seal

278000216

$3.29

PF6

Wire Seal

278001065

$7.89

PF6

Wire Seal

278000218

$4.49

PF6

Female Terminal

710000918

$7.89

PF6

Female Terminal

278002578

$1.49

PF6 C

Fuse Cover

278003553

$3.79

PF6 C

Fuses Decal

710009392

Unavailable

PF6-RY10

Relay

715900824

$17.32

PF6-RY4

Relay

715900824

$17.32

PF6-RY7

Relay

715900824

$17.32

PF6-RY8

Relay

715900824

$17.32

PF6-RY9

Relay

715900824

$17.32

PF7

Fuse, 50 AMP

710001048

$5.08

PF7

Fusebox 60 Amp

710002243

$25.99

PF8

Fuse

710001613

$8.99

PF8

Fuse Holder

278001325

$8.99

PF8

Female Terminal

710000357

$7.89

PF8 C

Fuse Holder Cap

278001326

$7.89

PSI

Connector Tyco Female 3 Cavities

710008885

$17.49

PSI

Wire Seal

710001118

$1.49

PSI

Tyco Terminal Female

710008886

$4.19

R1

Resistor

710005179

$2.24

R2

Resistor

710006155

$2.24

R5

Resistor

710010437

$3.28

R6

Resistor

710010438

$3.28

REG

Female Housing, 3 Circuits

710000879

$26.99

REG

Cap

710000882

$11.99

REG

Seal

710001932

$3.39

REG

Terminal

710001934

$5.59

REG (+)

Terminal

710000913

$5.69

RFID

Female Delphi Connector 5 Cavities

710007151

$16.99

RFID

Lock

710007243

$4.39

RFID

Wire Seal

710001163

$7.89

RFID

Female Terminal

710001164

$9.09

RS SW

Male Terminal Housing, 6 Circuits

710000835

$17.04

RS SW

Cap

710000080

$8.49

RS SW

Wire Seal

710000402

$4.69

RS SW

Male Terminal

409011300

$6.09

S2S S RL

Housing

710003731

$8.79

S2S S RL

Plug

710001938

$2.49

S2S S RL

Wire Seal

710001118

$1.49

S2S S RL

Female Terminal

710010230

$9.49

S2S S RR

Housing

710003731

$8.79

S2S S RR

Plug

710001938

$2.49

S2S S RR

Wire Seal

710001118

$1.49

S2S S RR

Female Terminal

710010230

$9.49

S2S V FL

Housing Jae, 2 Pins

515179555

$14.29

S2S V FL

Terminal Jae

515179328

$4.55

S2S V FR

Housing Jae, 2 Pins

515179555

$14.29

S2S V FR

Terminal Jae

515179328

$4.55

S2S V RL

Housing Jae, 2 Pins

515179555

$14.29

S2S V RL

Terminal Jae

515179328

$4.55

S2S V RR

Housing Jae, 2 Pins

515179555

$14.29

S2S V RR

Terminal Jae

515179328

$4.55

SIG L

Female Housing, 3 Circuits

409209600

$36.99

SIG L

Wire Seal

515176621

$7.69

SIG L

Female Terminal

710001340

$5.99

SIG R

Female Housing, 3 Circuits

409209600

$36.99

SIG R

Wire Seal

515176621

$7.69

SIG R

Female Terminal

710001340

$5.99

SOL

Female Housing, 2 Circuits

515177192

$9.29

SOL

Lock

710001152

$4.49

SOL

Seal Wire

710001153

$2.29

SOL

Terminal

710000925

$3.29

SW1

Female Terminal

409010700

$5.49

SW2

Female Terminal

409010700

$5.49

SW3

Female Terminal

409010700

$5.49

SW4

Open Barrel

278000992

$2.29

SWW

Male Housing, 3 Circuits

278000273

$9.79

SWW

Wire Seal

278001065

$7.89

SWW

Female Terminal

278000223

$3.29

SWW C

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.99

SWW C

Wire Seal

278000216

$3.29

TAS

Housing

710001231

$14.49

TAS

Lock 6 Positions

710005296

$1.49

TAS

Seal

710001233

$3.29

TAS

Terminal

710001224

$3.29

TELL TALE

Female Terminal Housing, 4 Circuits

515175845

$8.69

TELL TALE

Female Terminal

515175231

$4.49

TL L I

Housing

710000645

$15.36

TL L I

Lock

710000642

$4.59

TL L I

Seal

278001482

$3.29

TL L I

Female Terminal

710001134

$7.89

TL L O

Housing

710002177

$3.19

TL L O

Lock

710002043

$1.49

TL L O

Seal

278001482

$3.29

TL L O

Female Terminal

710001134

$7.89

TL R I

Housing

710000645

$15.36

TL R I

Lock

710000642

$4.59

TL R I

Seal

278001482

$3.29

TL R I

Female Terminal

710001134

$7.89

TL R O

Housing

710002177

$3.19

TL R O

Lock

710002043

$1.49

TL R O

Seal

278001482

$3.29

TL R O

Female Terminal

710001134

$7.89

TRL

Female Housing, 6 Circuits

710000081

$8.79

TRL

Wire Seal

710000402

$4.69

TRL

Female Terminal

409012100

$4.69

WSS FL

Connector 2 Pins

710005669

$2.24

WSS FL

Seal

710005689

$2.09

WSS FL

Female Terminal 18-20 AWG

515178348

$2.09

WSS FR

Connector 2 Pins

710005669

$2.24

WSS FR

Seal

710005689

$2.09

WSS FR

Female Terminal 18-20 AWG

515178348

$2.09

WSS RR

Connector 2 Pins

710005669

$2.24

WSS RR

Seal

710005689

$2.09

WSS RR

Female Terminal 18-20 AWG

515178348

$2.09
