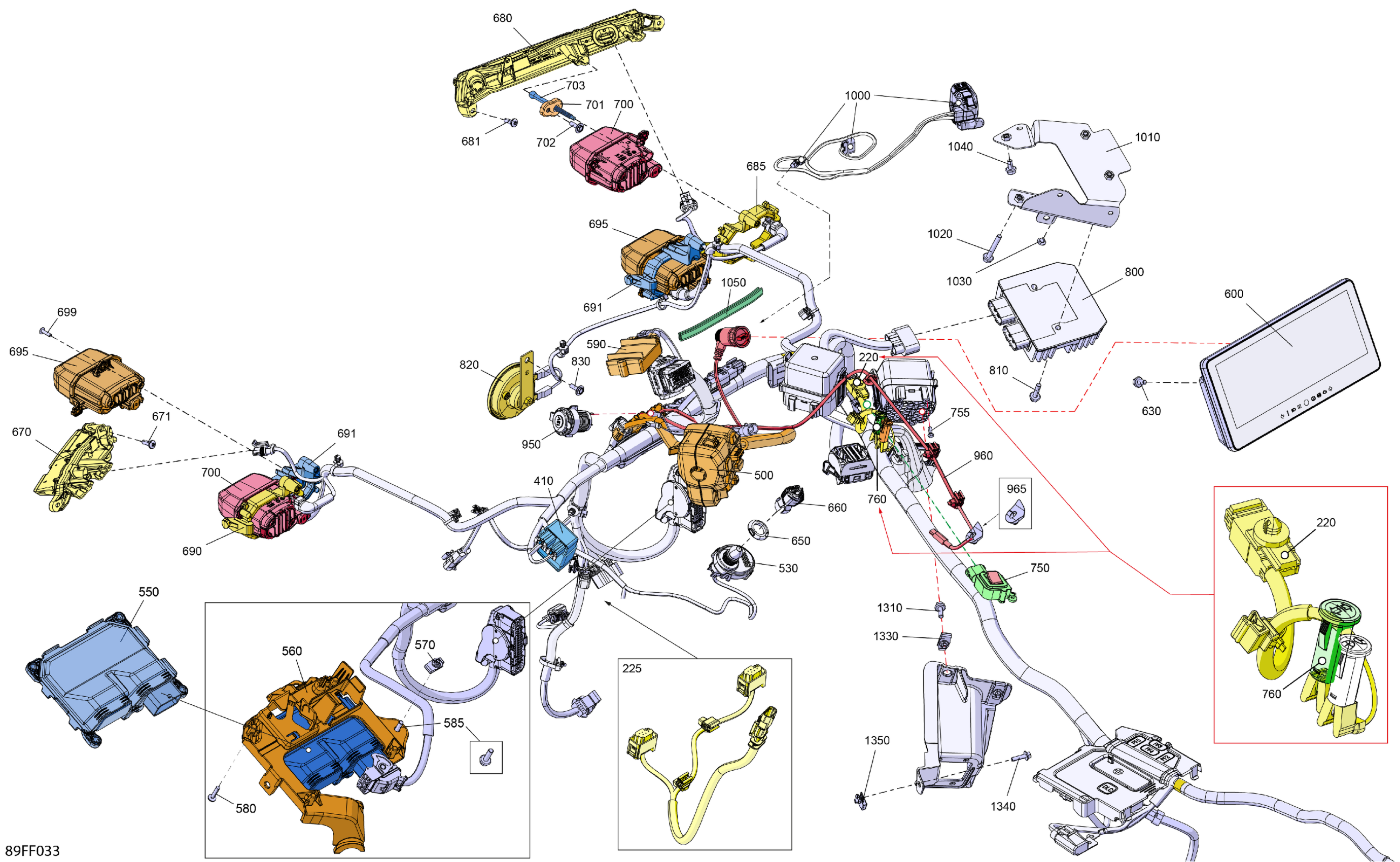

Can-Am OUT-MAX - 4X4 - XTP - 1000R - 4VTN - Mineral Gray Satin - 2026 Electric - Front Section Diagram

#

Description
Price

110

Torx-Truss Pt K40 X 16

250000759

$2.19

220

Marker Light Wiring Harness

710007616

$16.39

225

Sensor Wiring Harness

710011257

$19.99

410

Flasher Unit

710003239

$78.49

500

LH Front Multifunction Switch Ass'y

710009304

$228.33

530

Terminal DESS CAN | CARB Vehicle

710008832

$74.99

550

BCM Module Opt #6

710009361

$959.99

560

BCM Module Support

710009414

$9.65

570

Panel Nut M6 X 1.0

250100198

$2.19

580

Torx Screw K50 X 25

250001110

$2.09

585

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.19

590

GPS

278004506

$109.99

600

Multifunction Gauge 10

710010374

$2,079.99

630

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.99

650

Specialized Nut

278004274

$3.39

660

Grey Key RFID | Except Model Europe, Except T3

710004964

$59.99

670

LH Front Turn Signal Light Marker

710009353

$108.93

671

Torx Screw K50 X 16

250000720

$1.69

680

RH Front Turn Signal Light Marker

710009354

$108.93

681

Torx Screw K50 X 16

250000720

$1.69

685

RH Front Low Beam Headlight Support

710011657

$26.99

690

LH Front Low Beam Headlight Support

710011656

$26.99

691

LH/RH Front High Beam Headlight Support

710011658

$47.99

695

HIgh Beam Light

710006910

$169.99

699

Torx-Truss Pt K40 X 16

250000759

$2.19

700

Low Beam Light

710008088

$169.99

701

Ball Socket

293900157

$9.59

702

Screw PT Type K-50 X 16

250000959

$2.19

703

Ajustment Screw

710005837

$6.35

750

Hazard Lights Switch

710010071

$81.31

755

Torx Truss Screw K40 X 12

250000577

$2.19

760

Trailer Turn Signal Pilot Lamp

710010098

$7.64

800

Voltage Regulator

710010540

$199.99

810

Hex. Flange Screw M6 X 25

207562544

$1.69

820

Horn

710004791

$39.99

830

Screw PT Type K-50 X 16

250000959

$2.19

950

DC Outlet

710001248

$38.99

960

USB Wiring Harness

710010824

$76.99

965

Grommet

710010852

$7.13

1000

Accelerator Hand Lever

710010573

$309.99

1010

Voltage Regulator Support

710009942

$17.49

1020

Hex. Flange Screw M6 X 40

207664044

$2.19

1030

Rubber Stopper

293830229

$8.79

1040

Hex. Flange Screw M6 X 12

207661244

$2.19

1050

Trim 1000Mm Long

219704354

$15.99

1310

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

1330

Panel Nut M6 X 1.0

250100198

$2.19

1340

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.29

1350

Panel Nut M5 X 0.8

250000958

$4.29
