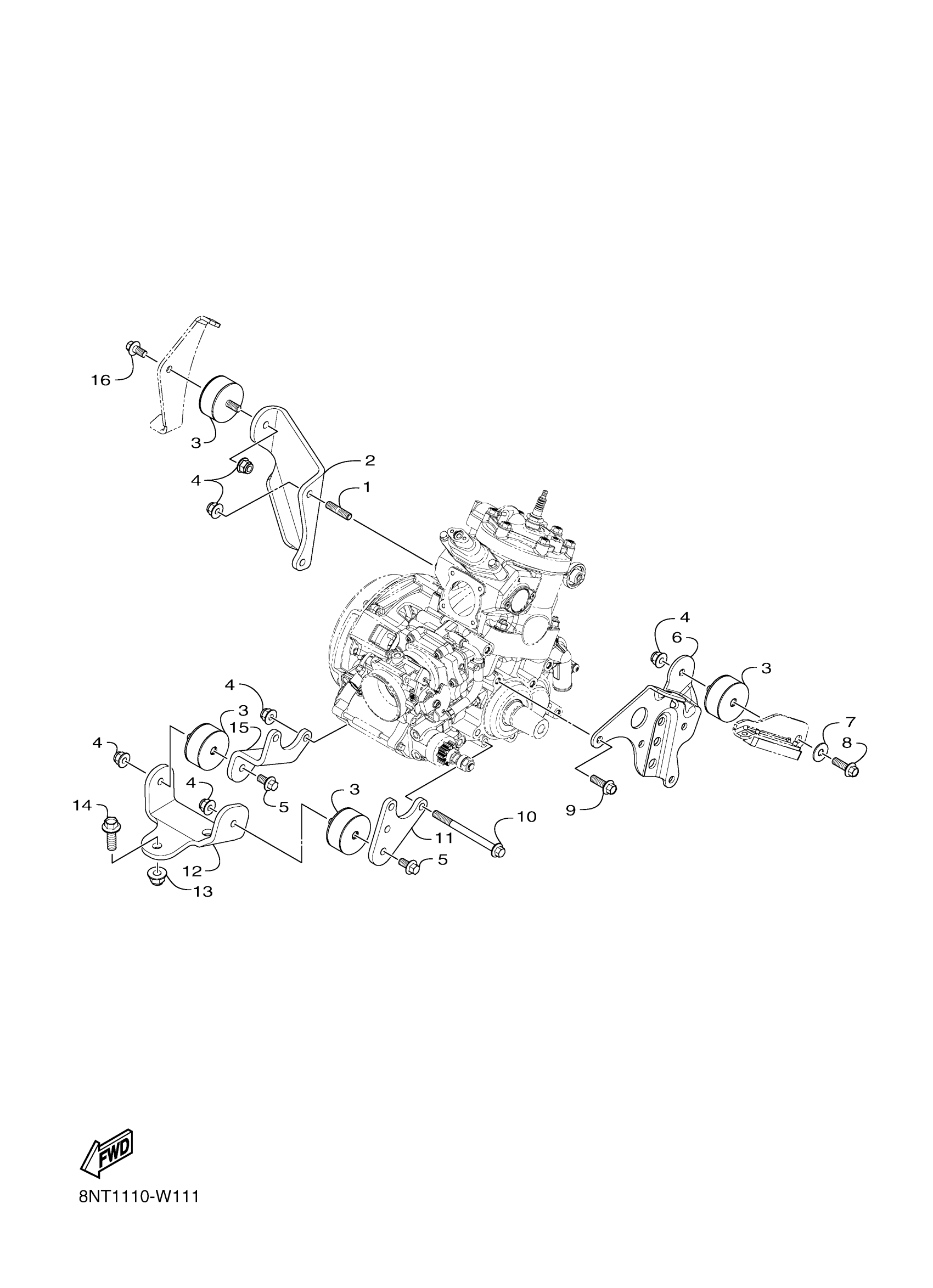

Find the part on the Engine Bracket diagram for your 2023 Yamaha Sxvenom (SXV4NPL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha Sxvenom (SXV4NPL) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, STUD

8NT-RA124-00-00

1
Out of stock

2

BRACKET, REAR UPPE

8NT-F1426-00-00

1
Out of stock

3

DAMPER, RUBBER 1

8NP-F1485-00-00

1
Out of stock

4

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

1
Out of stock

5

BOLT, FLANGE

8NT-RA127-00-00

1
Out of stock

6

BRACKET, REAR UPPE

8NT-F1425-00-00

1
Out of stock

7

WASHER

8ND-RA429-00-00

—
Out of stock

8

BOLT, HEXAGON

8NT-RA105-00-00

1
Out of stock

9

BOLT, FLG. M8X1.25

8JP-RA186-00-00

1
Out of stock

10

BOLT, FLANGE

8NT-RA188-00-00

1
Out of stock

11

BRACKET, FRONT LOW

8NT-F1417-00-00

1
Out of stock

12

PLATE, ENGINE MOUN

8NT-F145B-00-00

1
Out of stock

13

NUT, FLG. LOCKING

8JP-RA360-00-00

1
Out of stock

14

BOLT, FLG. M10X1.2

8JP-RA197-00-00

1
Out of stock

15

BRACKET, FRONT LOW

8NT-F1418-00-00

1
Out of stock

16

BOLT, FLANGE

8NT-RA116-00-00

—
Out of stock
