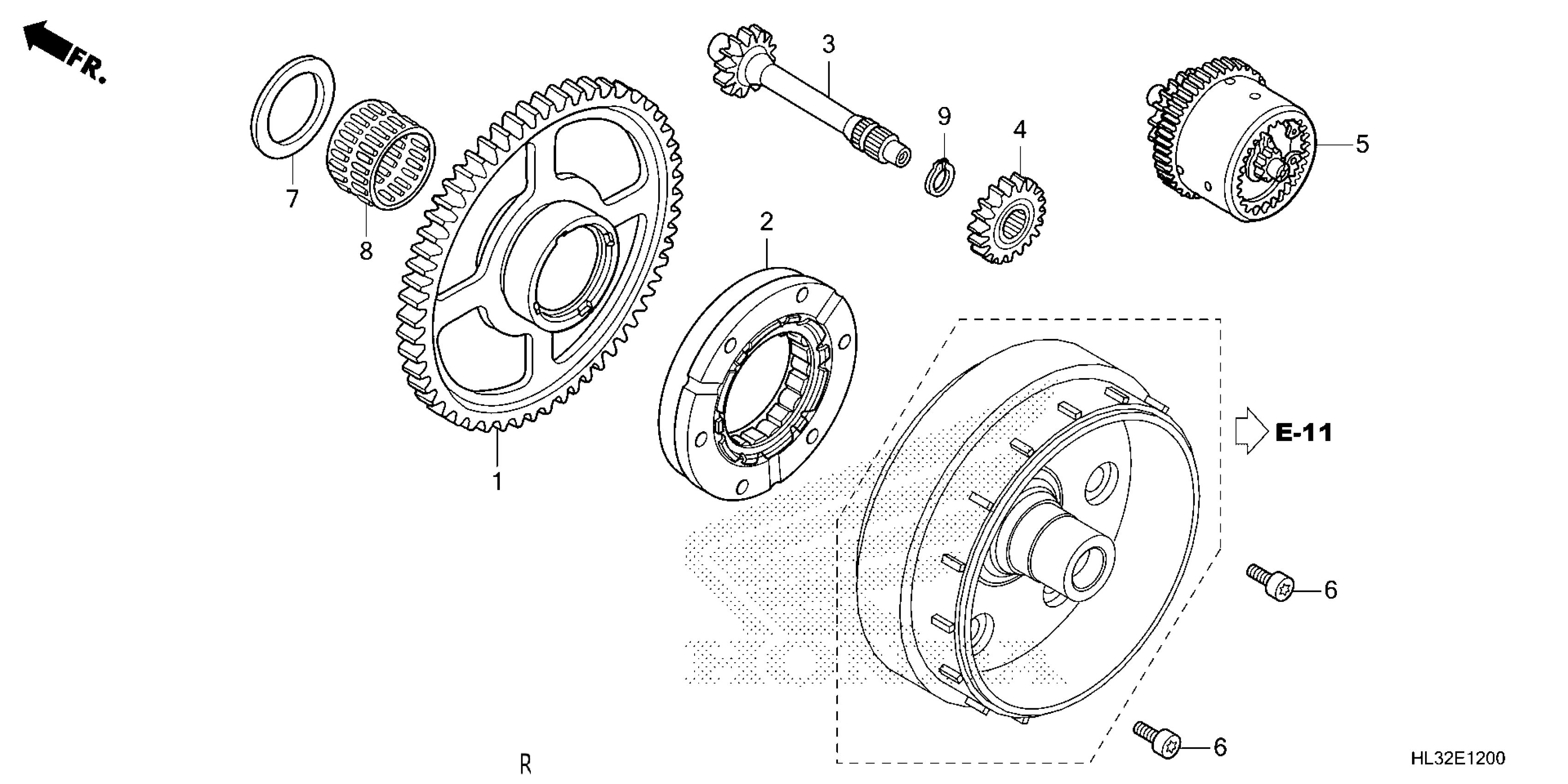

Honda SXS700M4D7AC (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE02L-P4800001 TO 1HFVE02L-P4899999 STARTING GEAR Diagram

#

Description
Price

1

GEAR, STARTER DRIVEN (67T)

28110-HN8-000

$117.64

2

CLUTCH OUTER

28125-HR6-MF1

Unavailable

3

SHAFT, STARTER REDUCTION

28130-HN8-000

$35.32

4

GEAR C, STARTER REDUCTION (19T)

28131-HN8-000

$45.72

5

LIMITER ASSY., TORQUE

28150-HN8-000

$229.11

6

BOLT, SOCKET (8X12)

90010-HN2-000

$2.43

7

WASHER SET

90400-HN8-305

$2.26

8

BEARING, NEEDLE (32X37X26)

91028-HN8-003

$13.06

9

CIRCLIP (OUTER) (15MM)

94510-15000

$1.18
